Description

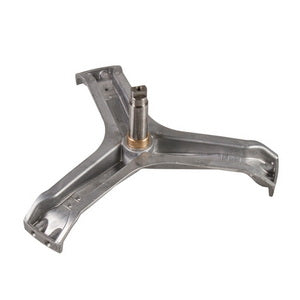

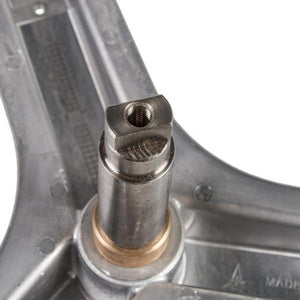

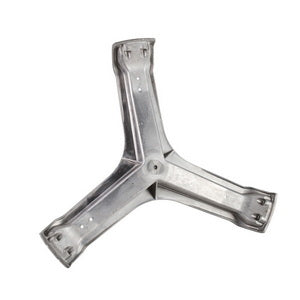

EBI drum cross for Electrolux washing machine COD.715 L=110mm | Manufacturer's code: COD.715
Parameters:
Shaft length, mm (±2 mm): 110
Pulley mounting: M10
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 35
Distance between bearings, mm (±1 mm): 68
Distance from the axis of the shaft to the axis of the drum attachment, mm: 225
Diameter of bearing 1, mm (±0.3 mm): 25
Diameter of bearing 2, mm (±0.3 mm): 30
Fastening to the drum: M8
The height of the sleeve under the oil seal, mm (±1 mm): 15
Coot height, mm (±1 mm): 11
Type of spare part: Crosspiece and support nodes
