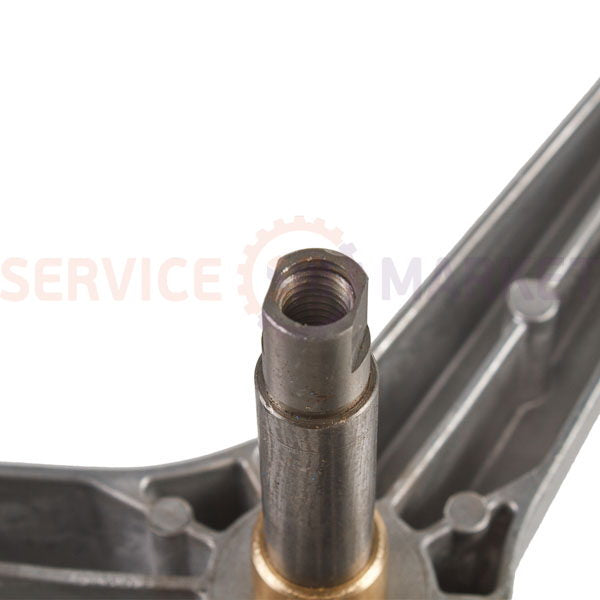

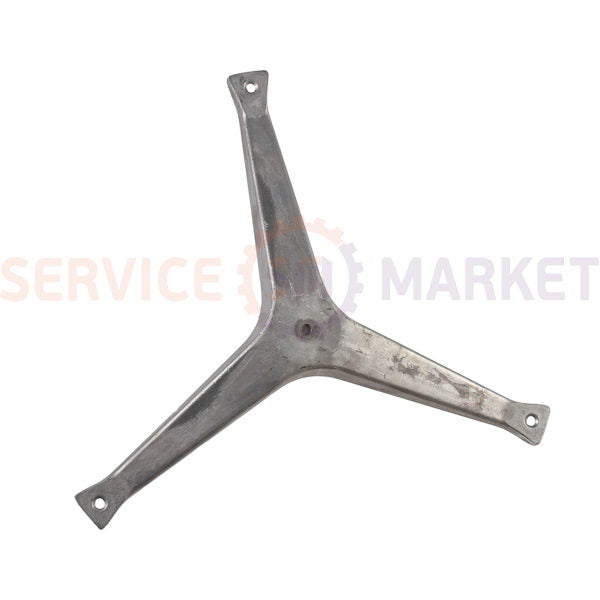

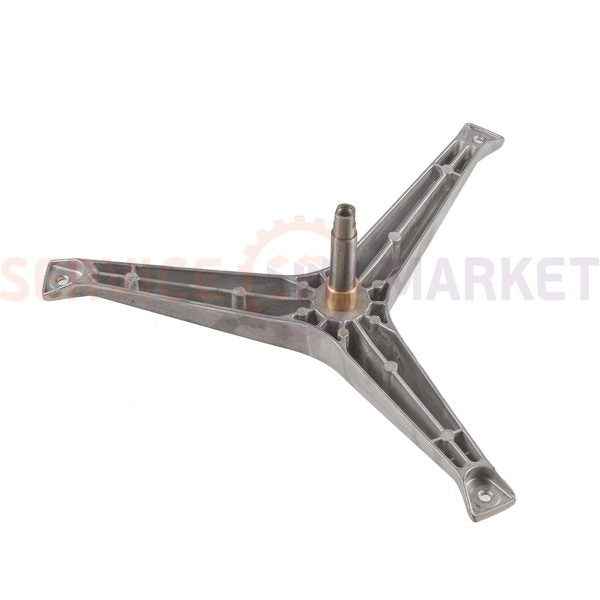

EBI drum cross for Samsung washing machine COD.729 L=97mm | Manufacturer's code: COD.729
Parameters:
Shaft length, mm (±2 mm): 97
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 25
Distance between bearings, mm (±1 mm): 55
Distance from the axis of the shaft to the axis of the drum attachment, mm: 222
Pulley mounting: M12
Bearing seat diameter 1, mm (±0.3 mm): 17
Diameter of bearing 2, mm (±0.3 mm): 20
Height of the sleeve under the oil seal, mm (±1 mm): 20.5
Coot height, mm (±1 mm): 11
Attachment to the drum: 8 mm
Bearings: 6203, 6204
Type of spare part: Crosspiece and support nodes
