Description

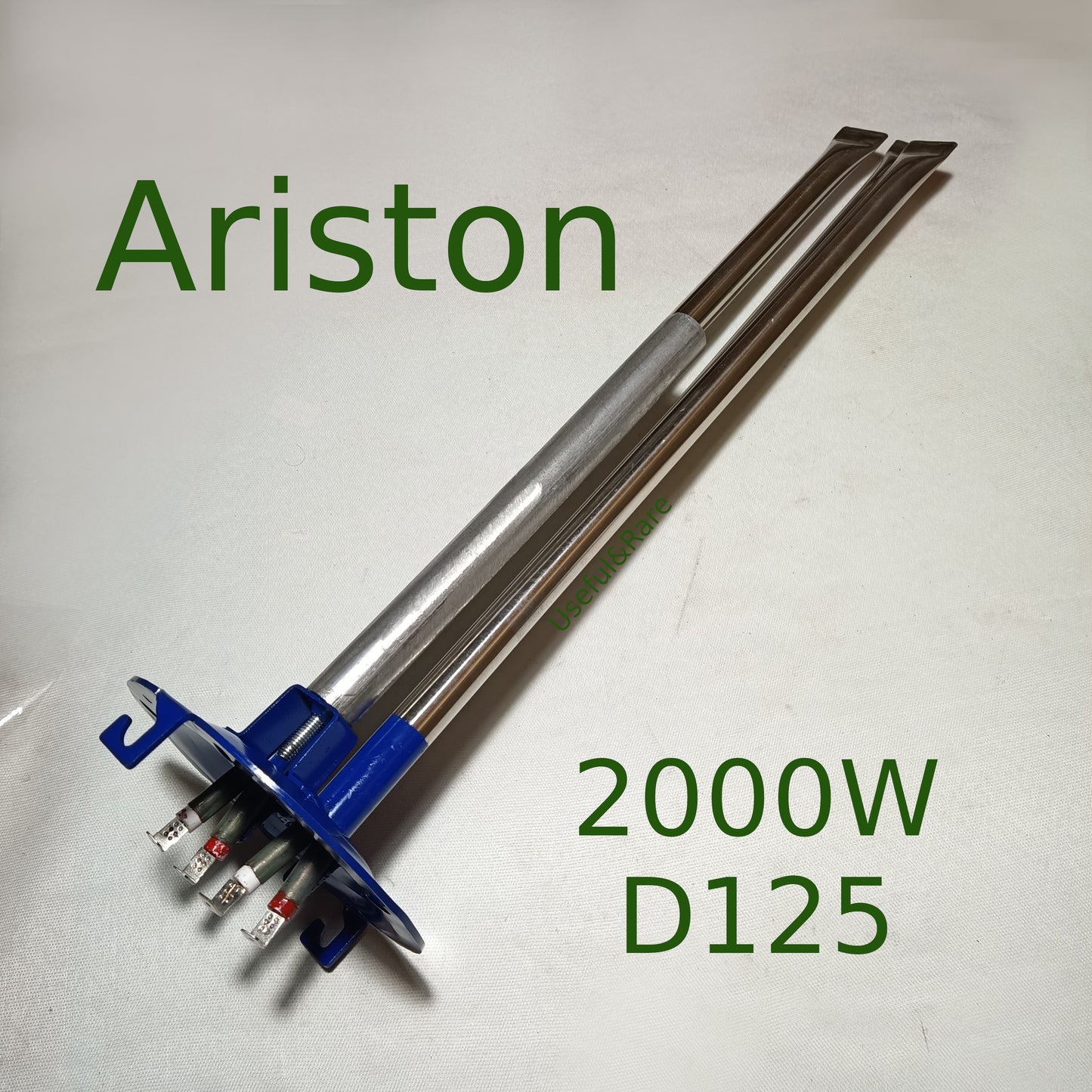

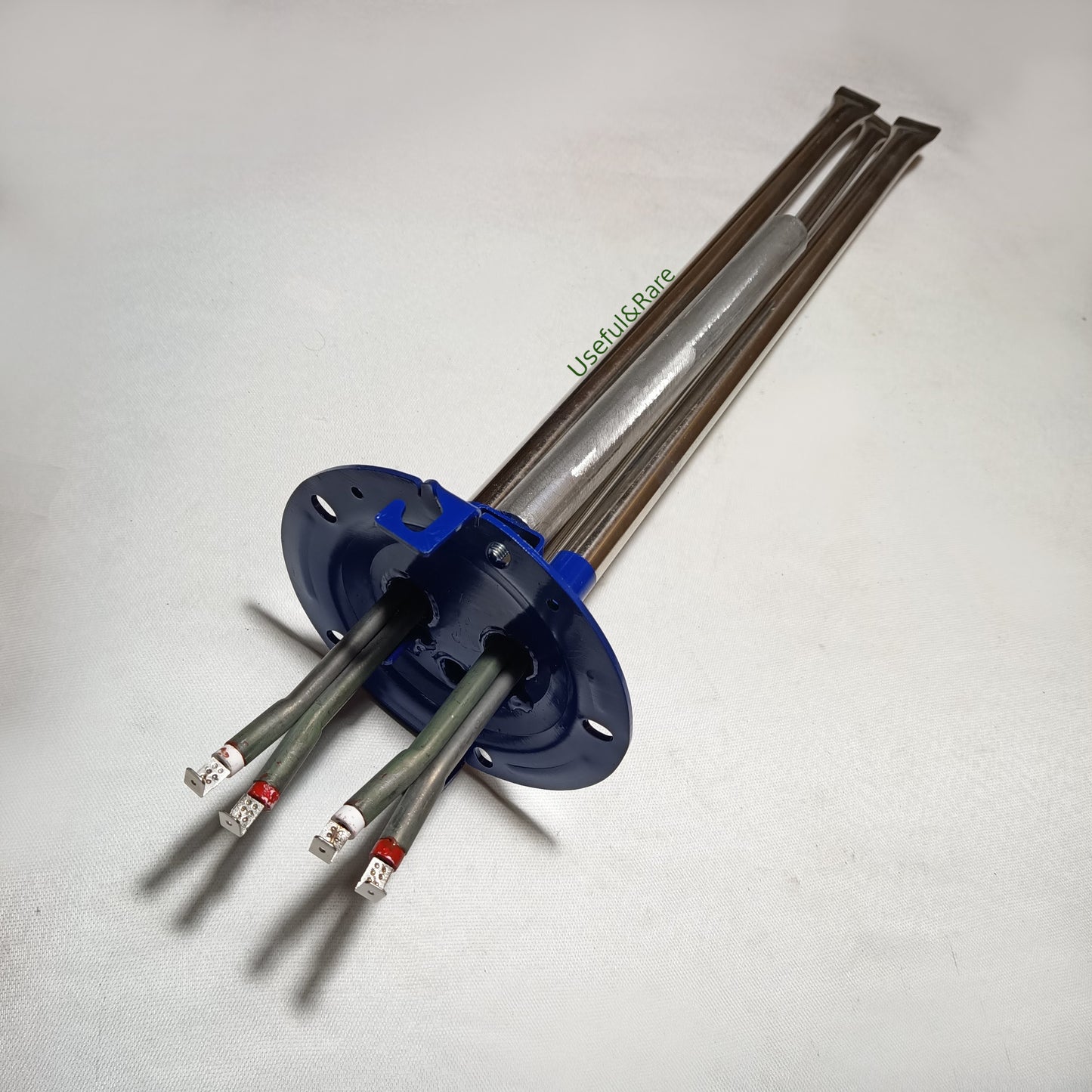

Flange assembly (anode + heating elements + gasket) for dry heating elements for Ariston boiler (65118364) Heating elements power 2000W
| Parameters | |
| Anode | |
| Leg length | 20 mm |
| Length | 200 mm |
| Diameter | 20 mm |
| Carving | M6 |
| Boiler gasket | |
| Padding height | 5 mm |
| Internal diameter | 78 mm |
| Outer diameter | 123 mm |
| Holes in the gasket | 10 mm |
| Boiler flange | |
| A place under the anode | M6 |
| Power | 2000W (1000 + 1000W) |
| Fastening type | 5 holes |

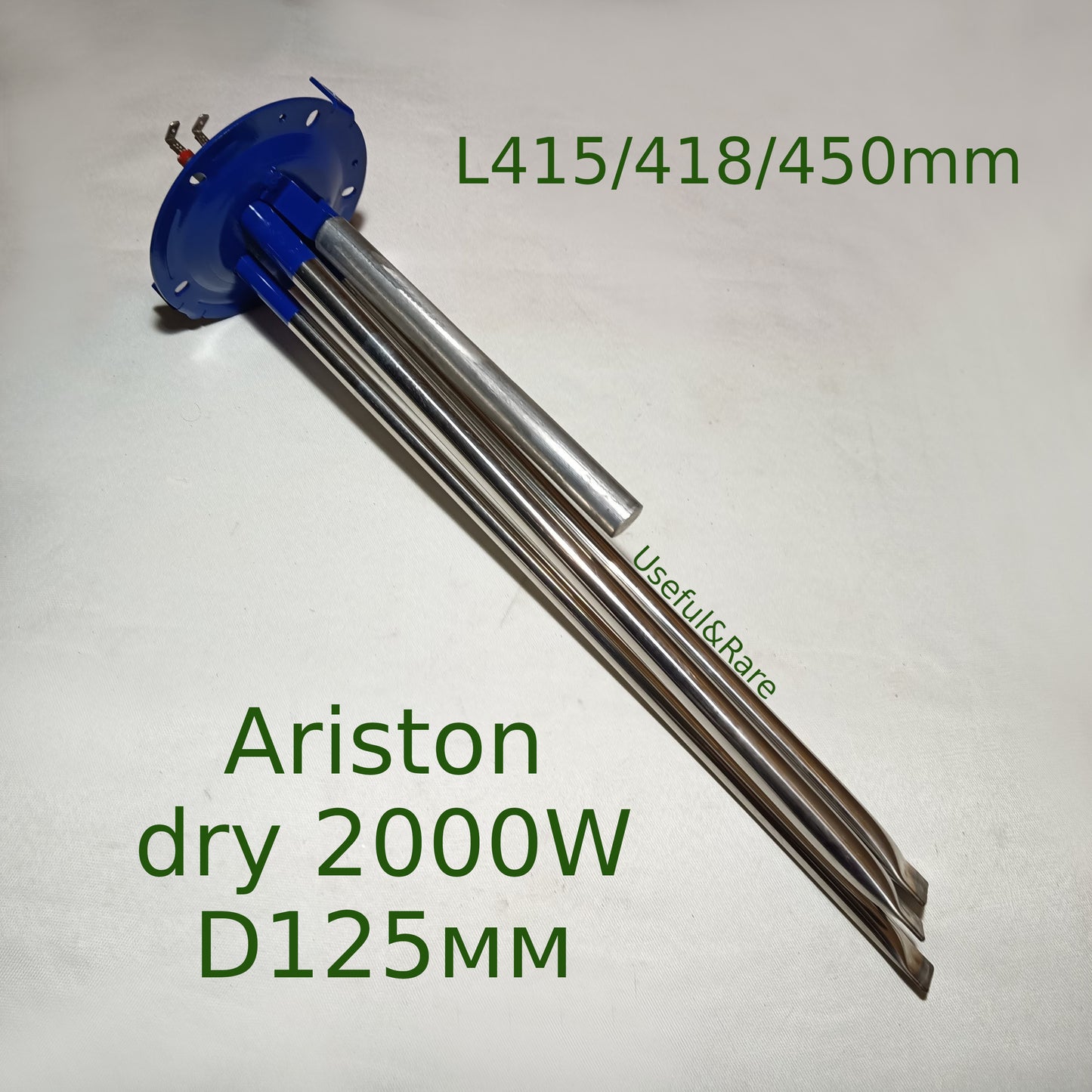

| The length of the tubes | 415/418/450 mm |
| Diameter | 125 mm |
| Characteristics of the TE | |
| Vendor | Thermowatt |
| Nominal voltage | 230V |
| Form of heating element | plus |
| Power | 1000W |
| The diameter of the heater | 12 mm |
| Length | 400 mm |
| Type of TEN | dry |
| Material of TEN | Stainless Steel |
Fits models
GORENJE, ELECTROLUX, AEG, FAGOR, Ariston BLU1 ECO 100V 1.8K PL DRY 3201458 Ariston BLU1 ECO 50 V 1.8K PL DRY 3201456 Ariston BLU1 ECO 80V 1.8K PL DRY 3201457 Ariston PRO1 ECO 100V 1.8K PL DRY 3201856 Ariston PRO1 ECO 50 V 1.8KPL DRY 3201854 Ariston PRO1 ECO 80V 1.8K PL DRY 3201855 Ariston VLS EVO DRY 50 EU 3626264
