Description

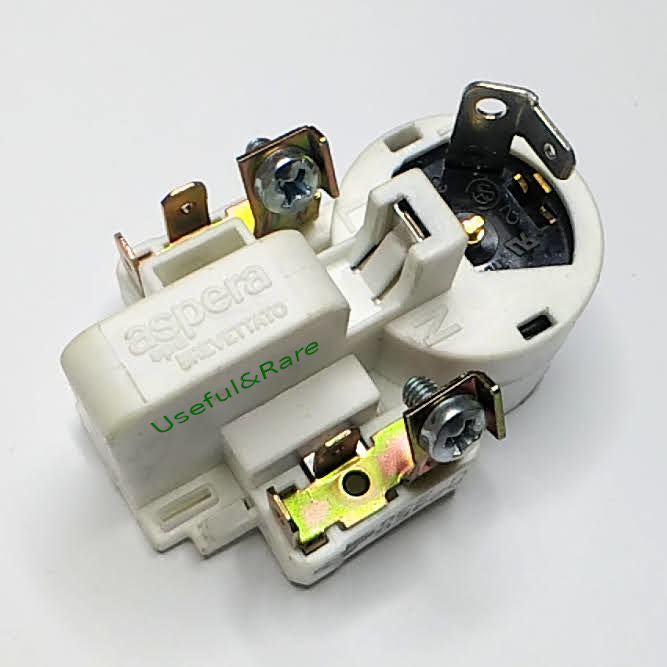

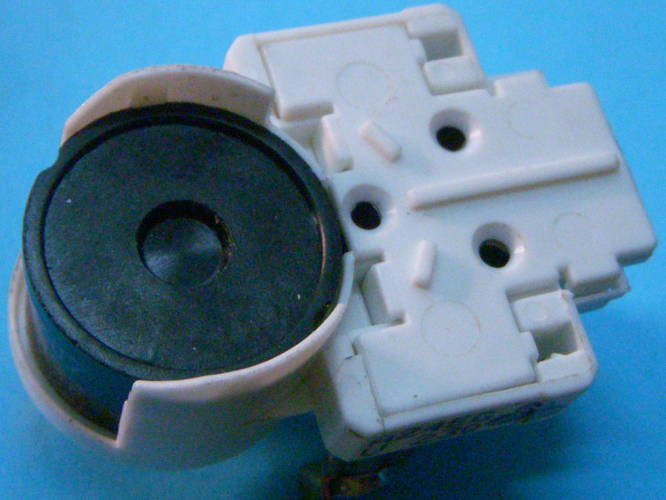

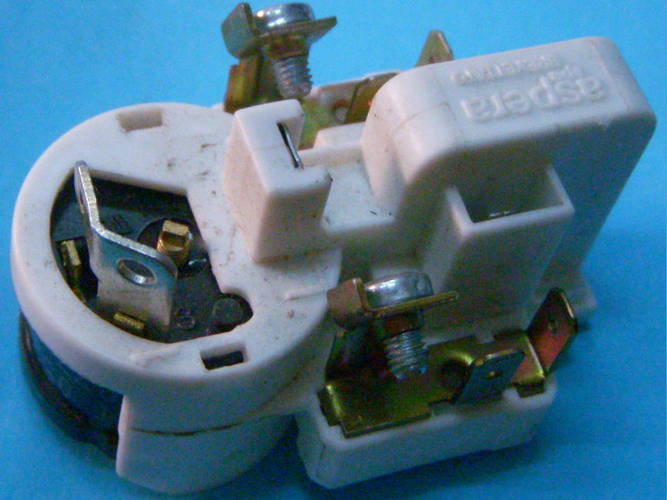

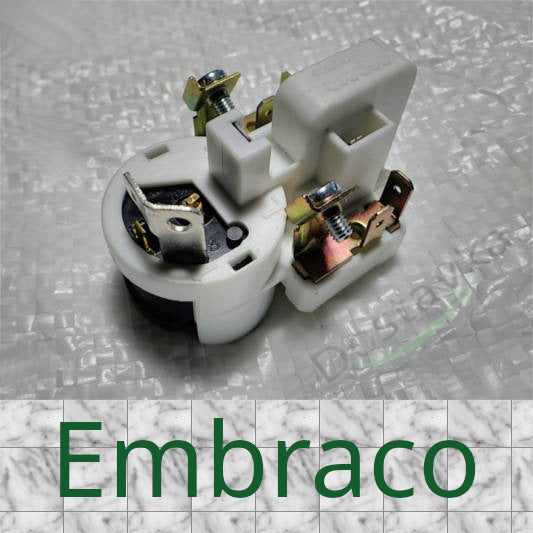

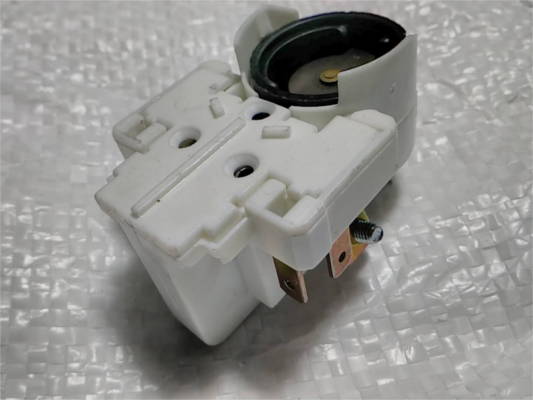

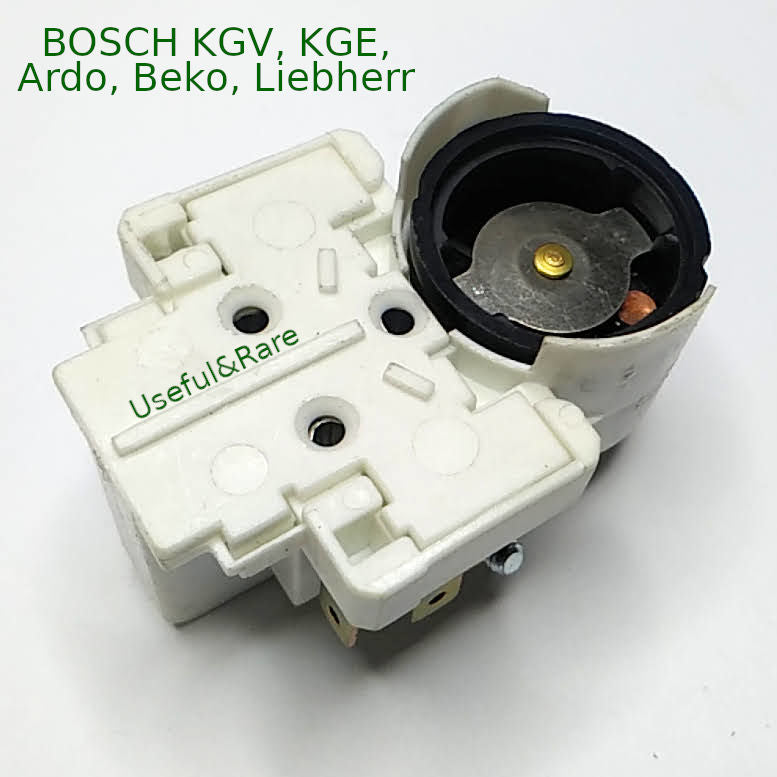

Starting Protection Relay Aspera A24EG suitable for Aspera Т0521/26, Embraco EMU 40 CLC compressors, refrigerators BOSCH KGV 3174, KGE 2615, Ardo A 44, Beko, Liebherr Wkb 1812, Kd2112-25/001, ММ8 603В2111 (Matsushita) and some other models.
Connection diagram
The output on the round (black) thermal protection is to the thermostat (usually a black wire).
Output N - blue (neutral).
Output L - brown (phase).
Output S - brown from the capacitor (if any).
All blue wires are on N.
All brown wires (except the capacitor) are on L.
