Bosch Siemens WL024160PL Stainless steel drum spider (shaft 97 mm)

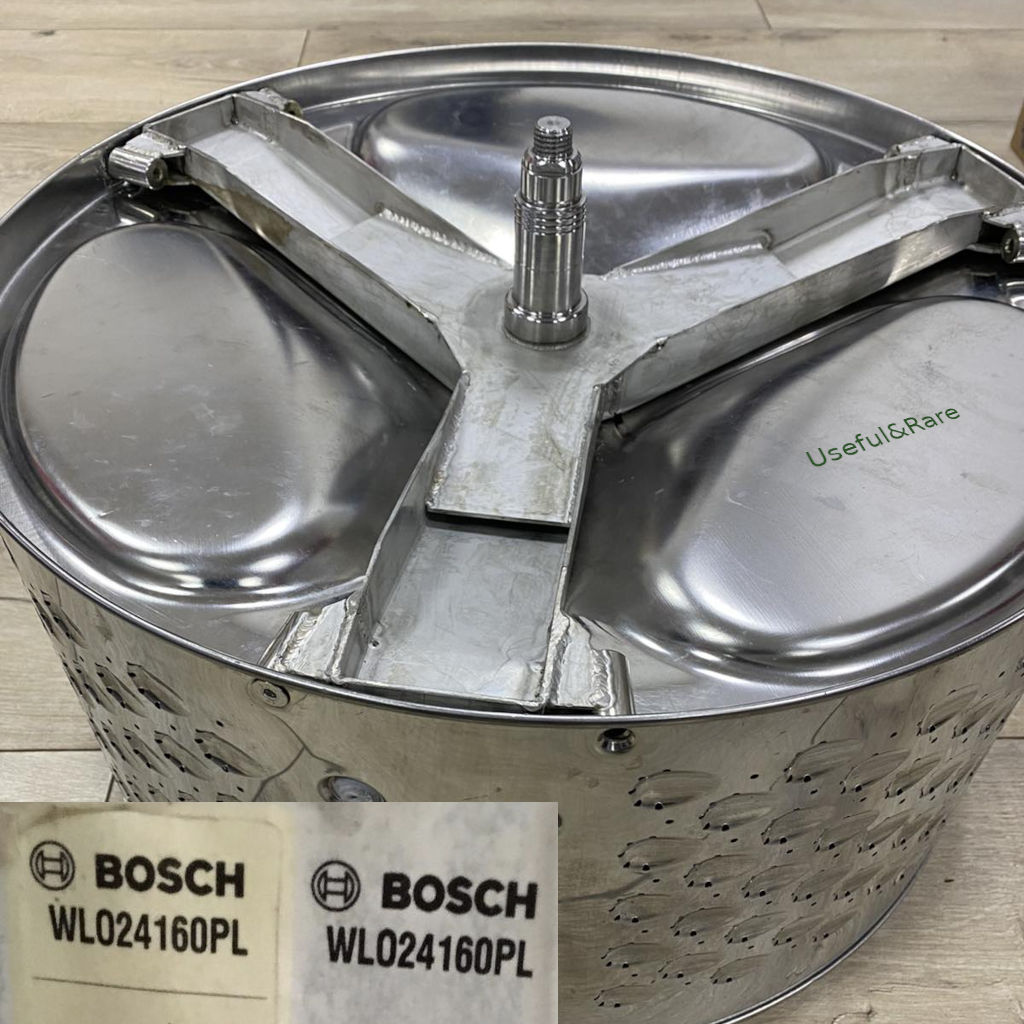

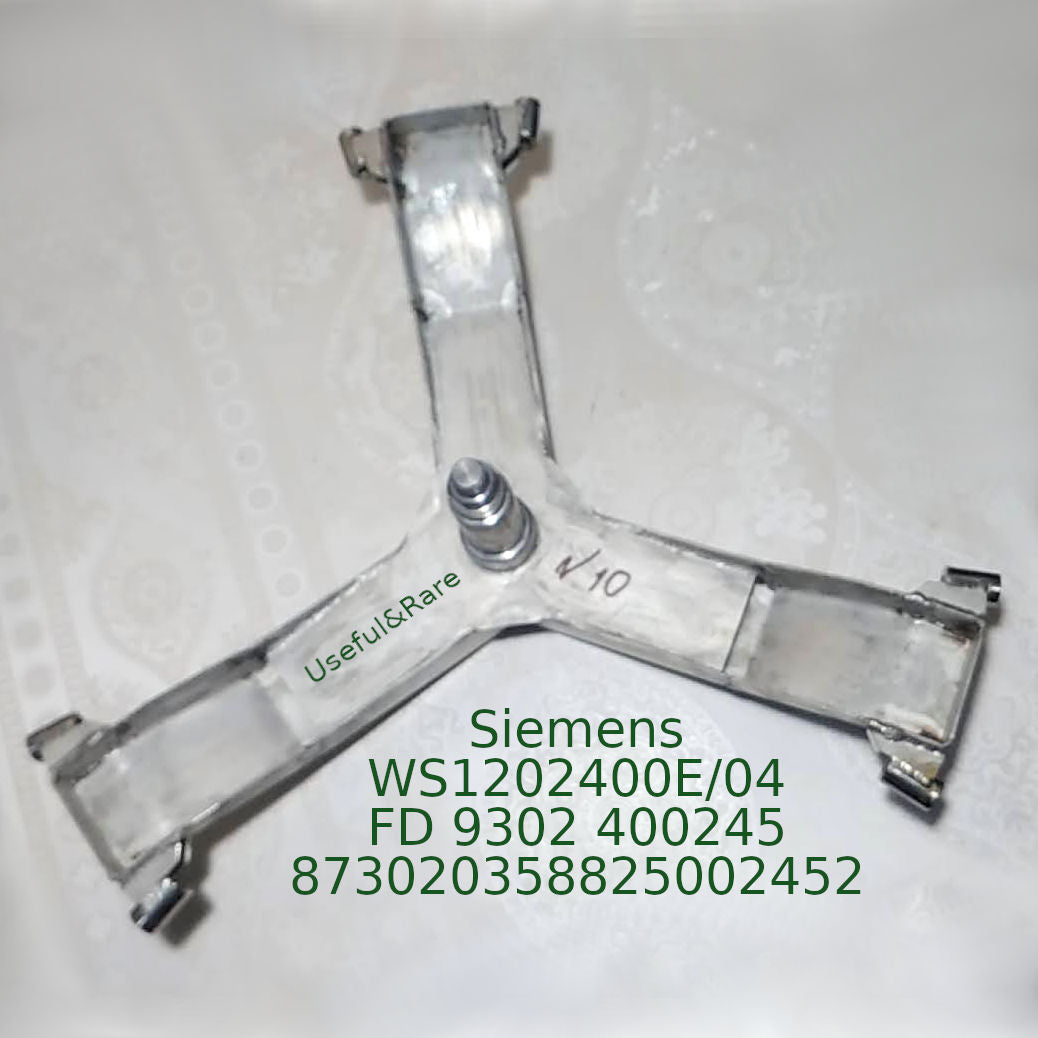

Bosch, Siemens BS-010 washing machine supporting drum spider, made of massive stainless steel. Suitable for Bosch WL024 160PL, Siemens WS1202400E/04 FD 9302 400245 873020358825002452 models.

Parameters:

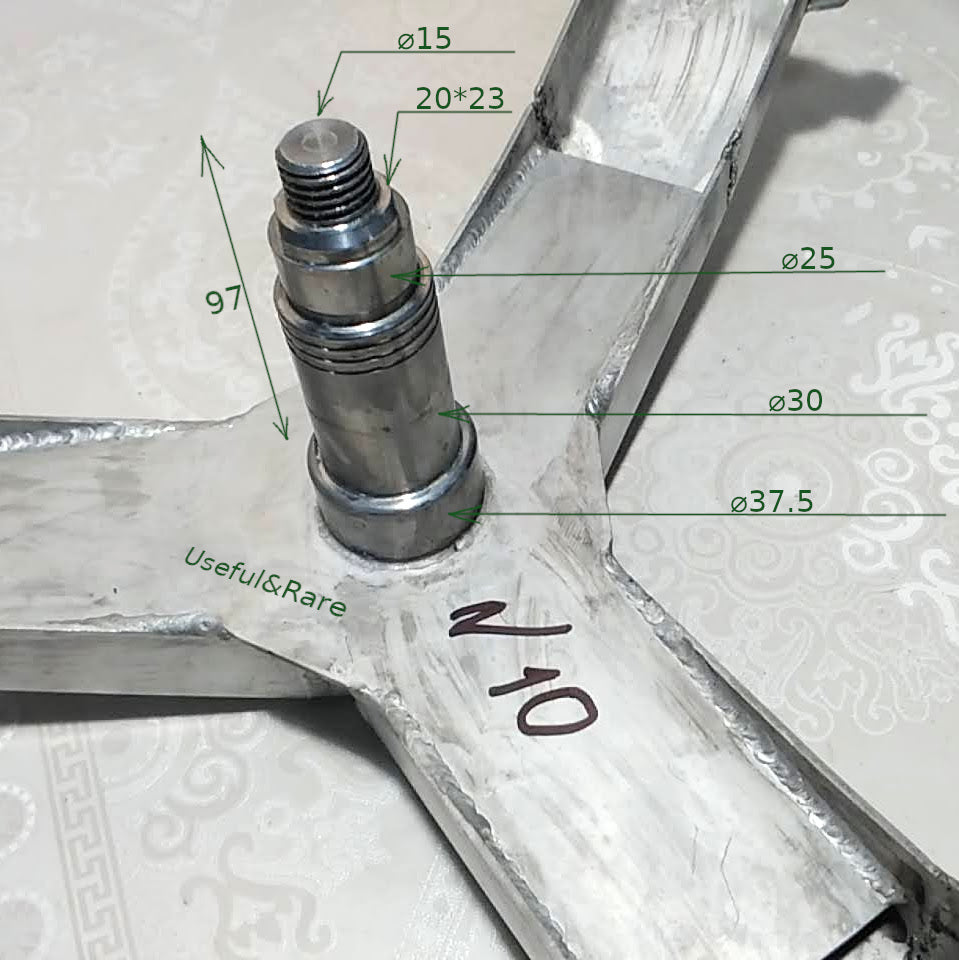

The landing height of the external bearing is 13.6 mm
Diameter for the inner bearing 30 mm (206)
Diameter for external bearing 25 mm (205)
The distance from the axis of the shaft to the axis of the attachment with the drum is 244 mm

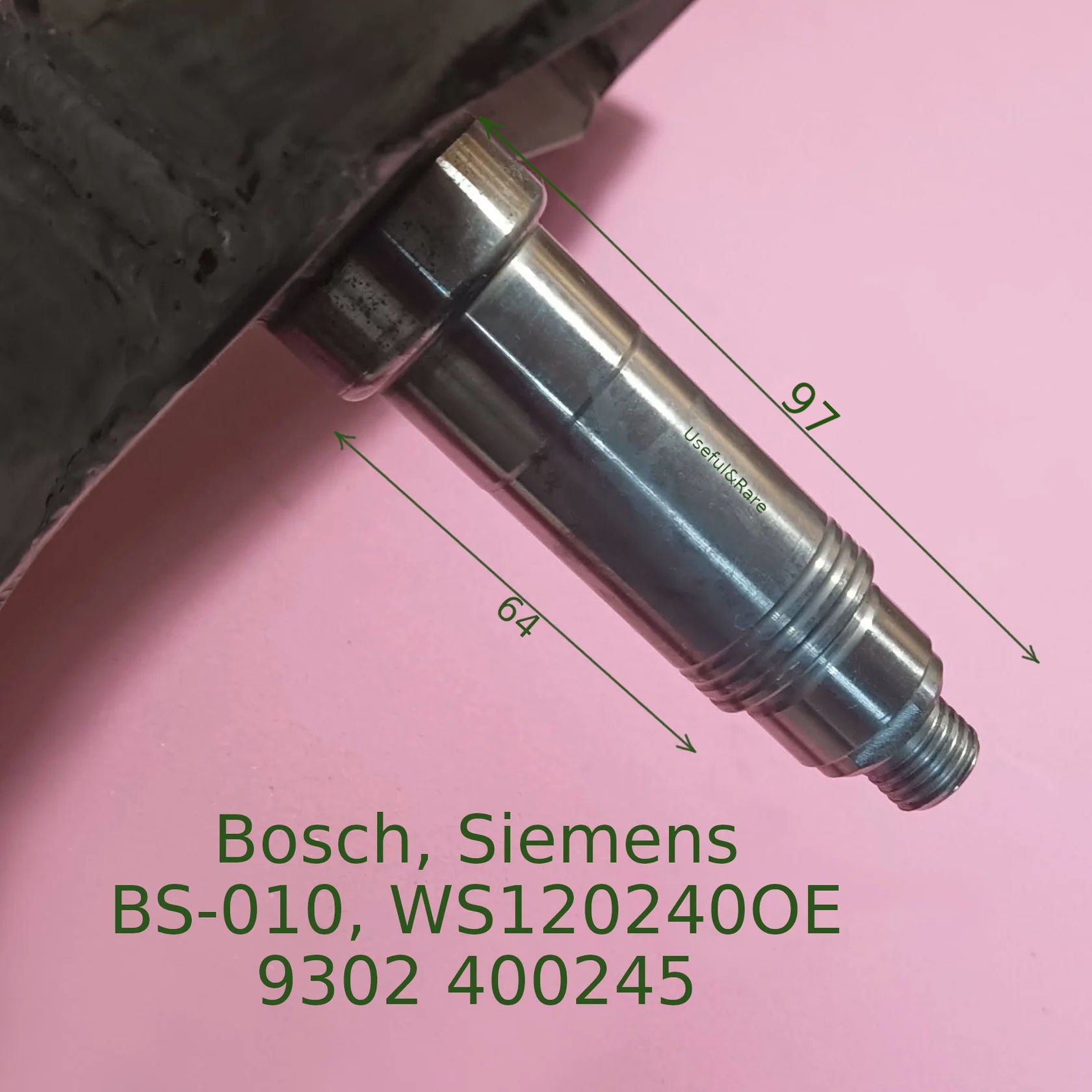

The length of the shaft is 97~100 mm
The diameter of the sleeve for the oil seal is 37.5 mm
M16 pulley mounting type
Fastening to the drum M6 6 pcs
The landing height of the pulley is 11.4 mm
The height of the sleeve under the oil seal is 19.5 mm
The width of the groove under the pulley is 20 mm
