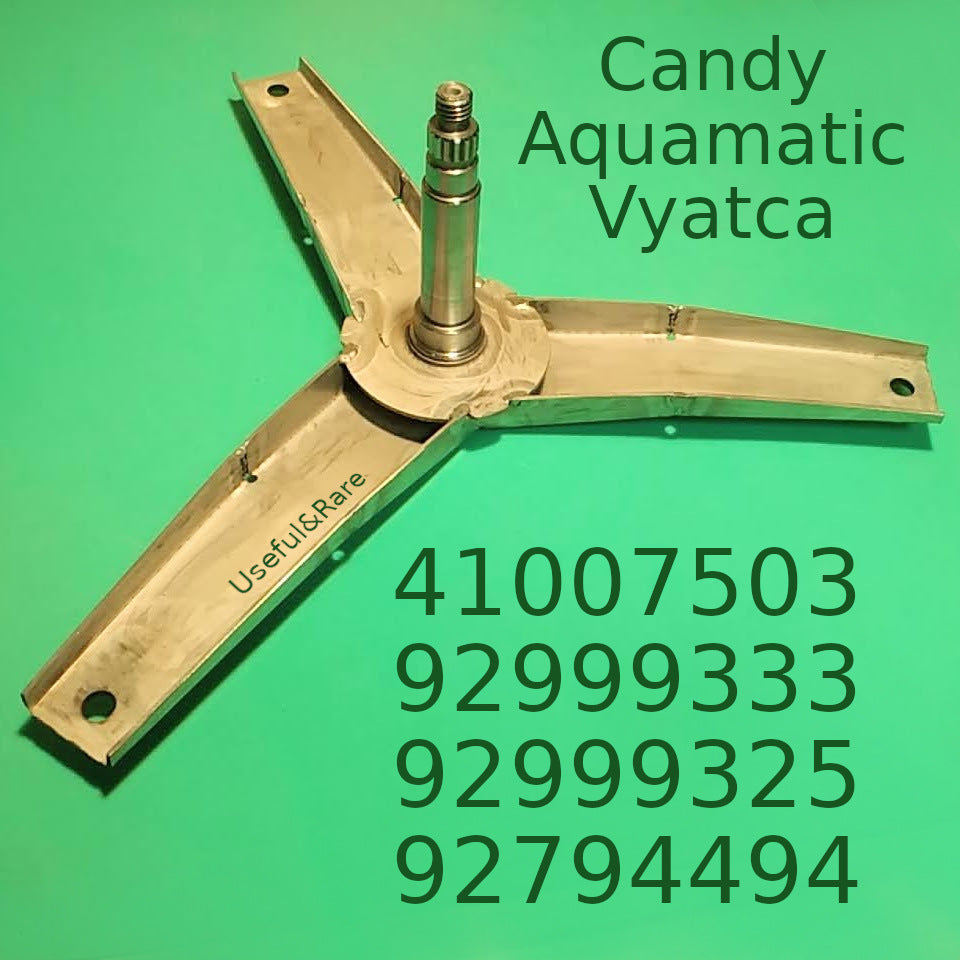

Candy Aquamatic Vyatca washing machine stainless steel drum spider 41007503

High-strength custom made Drum support spider 41007503 for replacement in Candy Aquamatic Vyatca washing machine. Made in the factory from solid stainless steel for the durable long life work purpose

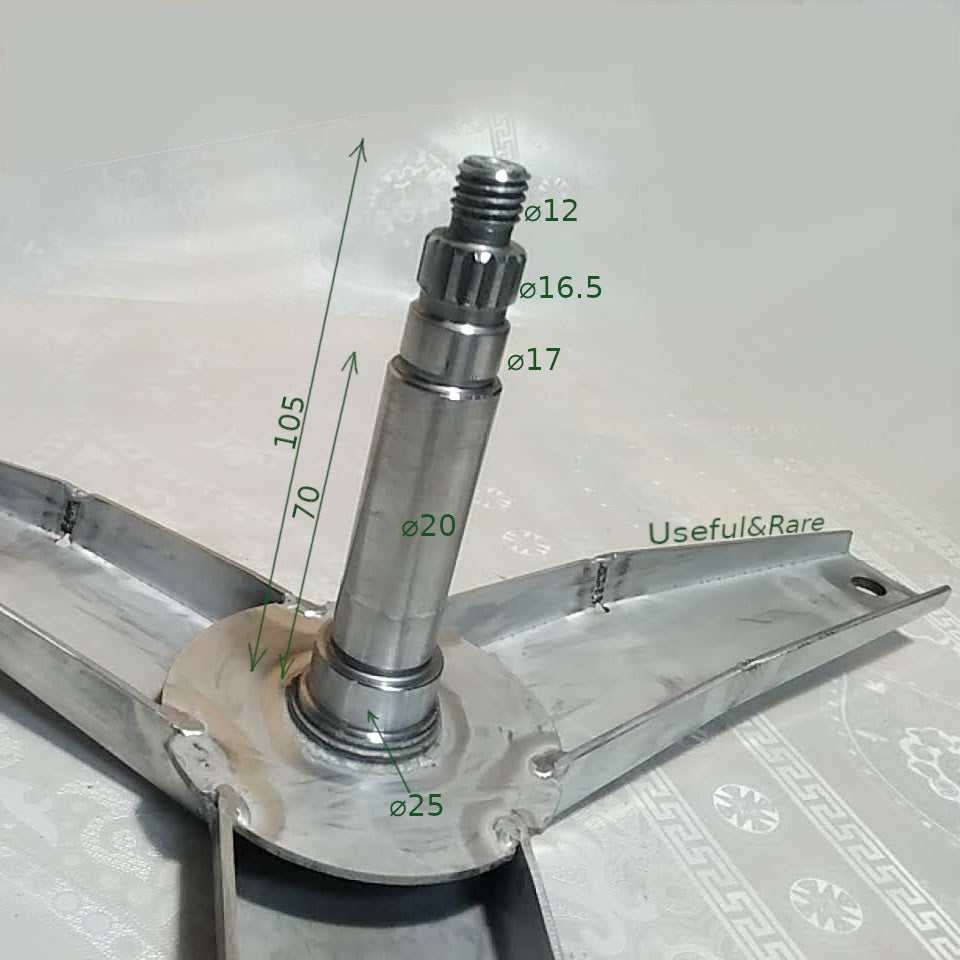

Distance between shaft and mounting hole centers 180 mm

Parameters
The distance from the axis of the shaft to the axis of the attachment with the drum	180 mm
The distance between the bearings	57 mm
Shaft length	105 mm
The diameter of the sleeve for the stuffing box	25 mm
Main bearing	20 mm
The second bearing	17 mm
Pulley	M12 nut

Compatibility list:

Candy AQUA1000DF07S AQUA1100DF01S (31003232) AQUA1000DF07S (31002975) AQUA1100DFS AQUA1000DF66 AQUA1100DFS (31003288) AQUA1000DF66 (31003321) AQUA60045 AQUA1000T AQUA60045 (31000531) AQUA1000T (31000537) AQUA600T AQUA1000T45 AQUA600T (31000532) AQUA1000T45 (31000538) AQUA600T01 AQUA1000T66 AQUA600T01 (31000533) AQUA1000T66 (31002282) AQUA600T45 AQUA1000T80 AQUA600T45 (31000534) AQUA1000T80 (31000539) AQUA800DF07S AQUA1000TMETAL AQUA800DF07S (31002976) AQUA1000TMETAL (31000540) AQUA800T AQUA100F AQUA800T (31000536) AQUA100F (31002780) AQUA800T45 AQUA100F80 AQUA800T45 (31000535) AQUA100F80 (31002972) AQUA80F AQUA1100DF01S AQUA80F (31002779) Vyatca PICCOLA600RU Vyatca PICCOLA600RU (31001247)
