Description

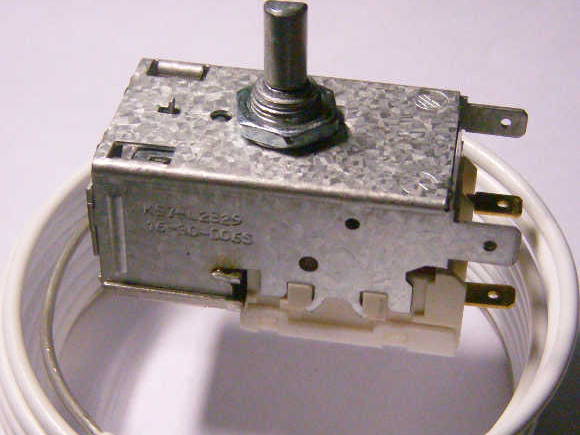

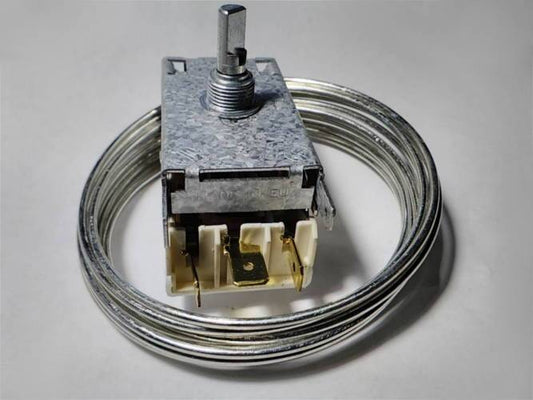

Thermostat (temperature regulator) RANCO K57-L2829 (Indesit C00851095, Indesit C00851089), capillarye tube 2.5 m long, replaceable with T145/2.5/, RANCO K57L2819, t° from -29°C to -18°C ( -15.. .-21; -25...-33°C ), Nord DX-428-7, for repair freezer Giochel 101-2 MKS-120, refrigerator Calex, Stinol 103E, Indesit, Ariston ) with the super freezing function, you can place it instead of the K54-L2095, without using super freezing, in the freezer compartment, where the green signal light is constantly on.

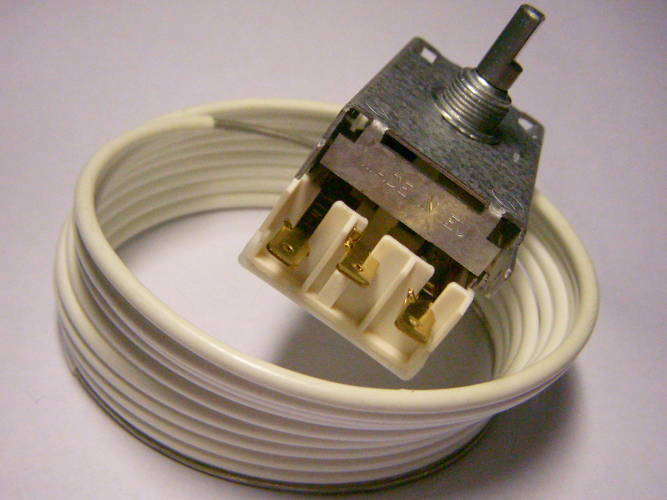

Pins:
6 - common,
4 - for motor-compressor,
3 - signal lamp.
Compatibility list
Ariston HBM2181.4 (58745560010) Ariston RMBA2200LSH (58669810000) Ariston HBM2181.4X (58745570110) Ariston RMBA2200LXH (58669790000) Ariston HBM2201.4H (58745410010) Ariston RMBA2200LXH (58669790010) Ariston HBM2201.4XH (58745530010) Ariston RMBA2200LXH (58669790110) Ariston MB2185NF (58309370000) Ariston RMUP100X (58588440000) Ariston MBA2185 (58309360000) Ariston RMUP100X (58588440010) Ariston MBA2185SL (58387650000) Ariston RMUP100XH (58669730100) Ariston MBA2185X (58322980000) Ariston RMUP100XH (58669730112) Ariston MBA2200 (58309400000) Ariston RMUP100XH (58669730213) Ariston MBA2200SL (58387660000) Ariston RMUP100XH (58745780010) Ariston MBA2200X (58323020000) Ariston RMUP100XH (58745780013) Ariston RMBA2185.L (58486340000) Ariston RMUP167XNF (58588450000) Ariston RMBA2185.L (58486340010) Ariston RMUP167XNF (58588450001) Ariston RMBA2185.LS (58486350000) Ariston RMUP167XNF (58588450010) Ariston RMBA2185.LS (58486350010) Ariston RMUP167XNFH (58669740000) Ariston RMBA2185.LX (58486360000) Ariston RMUP167XNFH (58669740010) Ariston RMBA2185.LX (58486360010) Ariston RMUP167XNFH (58669740110) Ariston RMBA2200LH (58669800000) Ariston RMUP167XNFH (58669740210) Ariston RMBA2200LH (58669800010) Ariston RMUP167XNFHA (58818010010) Ariston RMBA2200LH (58669800110) Ariston RMUP167XNFHAAUA (58829370010) Indesit BH18 (58392100001) Indesit MFZ16F (58795620012) Indesit BH18 (58392100010) Indesit NBHA180 (58754690010) Indesit BH180 (58392070002) Indesit NBHA180NX (58754670010) Indesit BH180 (58392070010) Indesit NBHA20 (58754180010) Indesit BH180NF (58392140001) Indesit NBHA20NX (58754720010) Indesit BH180NFS (58392150001) Indesit NUS10.1A (58817860010) Indesit BH180NX (58666000000) Indesit NUS10.1AAUA (58829420010) Indesit BH180NX (58666000010) Indesit NUS16.1AAHUA (58829430010) Indesit BH180S (58392080002) Indesit NUS16.1AANFHUA (58829400010) Indesit BH180S (58392080010) Indesit NUS16.1AH (58817850010) Indesit BH180X (58392090002) Indesit NUS16.1ANFH (58817910011) Indesit BH180X (58392090010) Indesit NUS16.1SAAHUA (58829410010) Indesit BH18NF (58392160001) Indesit NUS16.1SAH (58817900010) Indesit BH20 (58392240001) Indesit SFR100 (58500450000) Indesit BH20 (58392240010) Indesit SFR100 (58500450001) Indesit BH20 (58392240011) Indesit SFR100 (58500450010) Indesit BH20S (58392250001) Indesit SFR100 (58500450011) Indesit BH20X (58392260001) Indesit SFR100 (58500450213) Indesit BIHA18.50 (58781320110) Indesit SFR100 (58500450216) Indesit BIHA20 (58779310010) Indesit SFR167 (58500440000) Indesit BIHA20 (58779310110) Indesit SFR167 (58500440001) Indesit BIHA20 (58779310111) Indesit SFR167 (58500440300) Indesit BIHA20X (58779340010) Indesit SFR167 (58500440310) Indesit BIHA20X (58779340110) Indesit SFR167 (58500440311) Indesit MFZ10 (58795630010) Indesit SFR167NF (58500430000) Indesit MFZ10 (58795630011) Indesit SFR167NF (58500430001) Indesit MFZ10 (58795630012) Indesit SFR167NF (58500430010) Indesit MFZ10 (58795630015) Indesit SFR167NF (58500430210) Indesit MFZ16 (58795610000) Indesit SFR167NF (58500430211) Indesit MFZ16 (58795610010) Indesit SFR167NF (58500430212) Indesit MFZ16F (58795620000) Indesit SFR167S (58745610000) Indesit MFZ16F (58795620010) Indesit SFR167S (58745610010) Stinol RFC370A (58255900000) Stinol RFCNF340A (58255890000) Stinol RFC340 (58255880000)
