Description

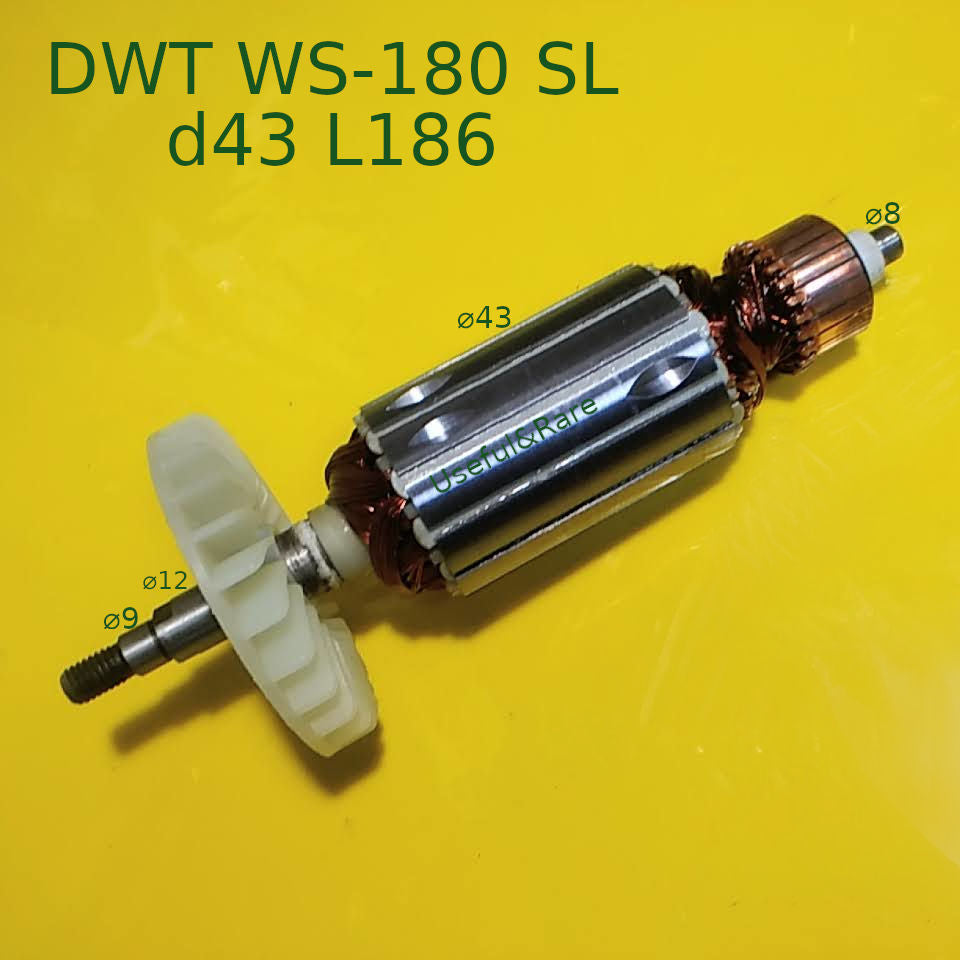

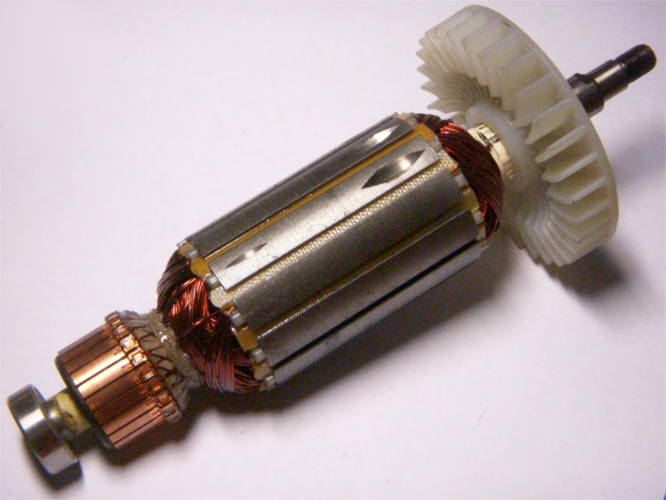

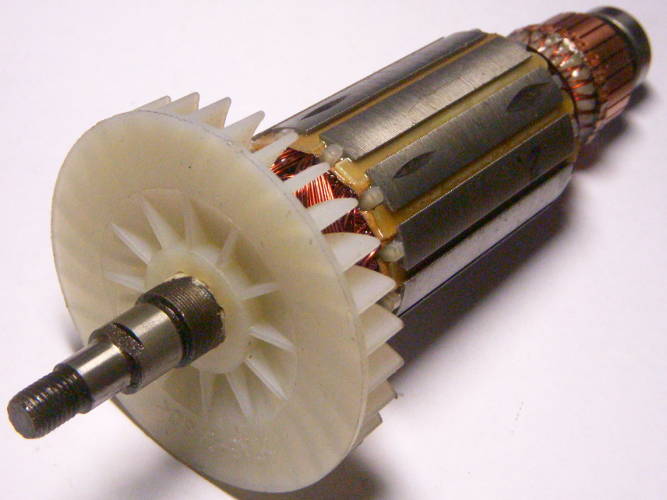

Electric motor armature for replacement in angle grinder DWT WS-180 SL, DWT WS-180 VS, DWT WS-150 T, DWT WS-150 D, DWT WS-180 Т, DWT WS-180 TV, DWT WS-180 D, DWT WS-180 DV.
The winding package diameter d43 mm
The winding package length are L60 mm
Commutator diameter 27 mm
Total length ~186 mm.
Shaft diameter 9mm
Thread 8 mm at the end and two cuts 9 mm for the gear fixation
Between bearings positions 149 mm.
Bearings fit on 12 and 9 mm
