Description

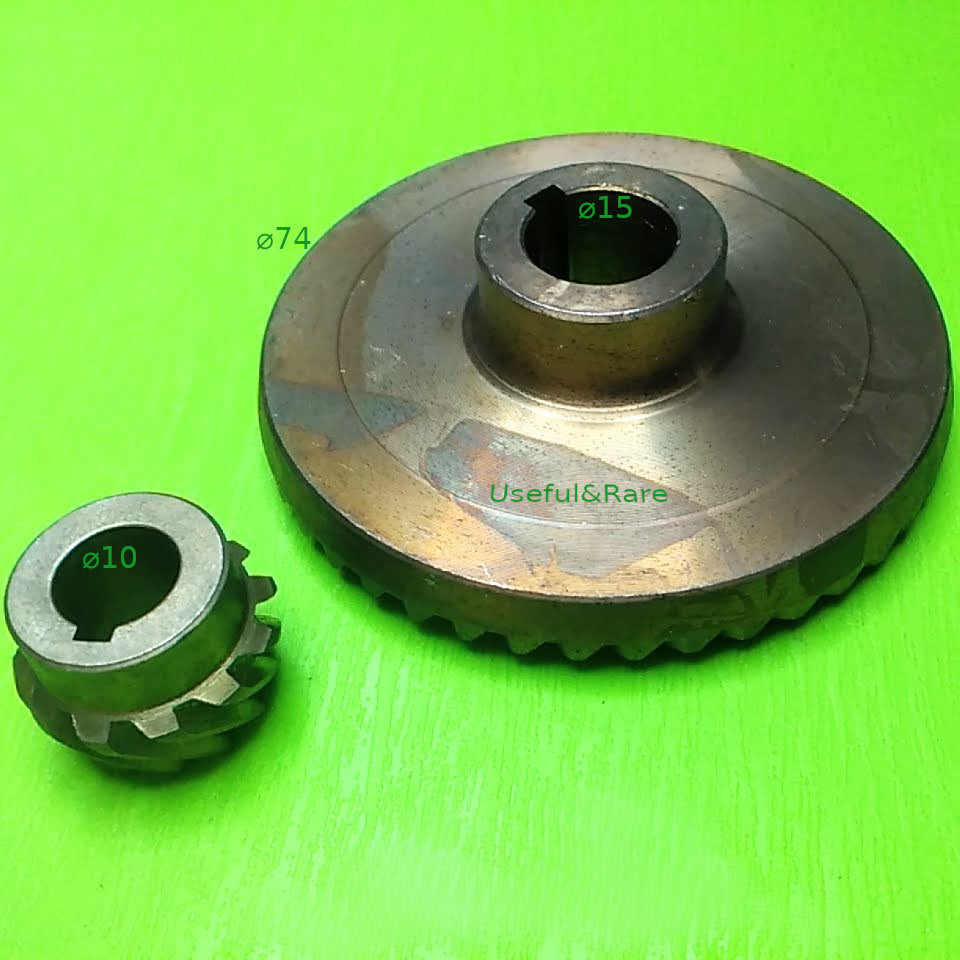

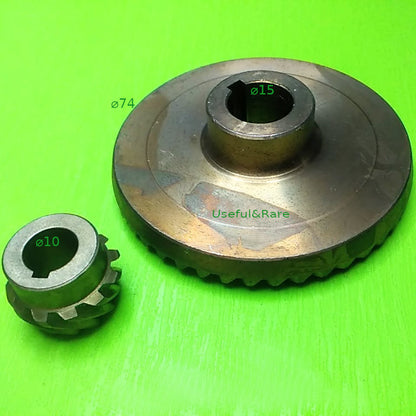

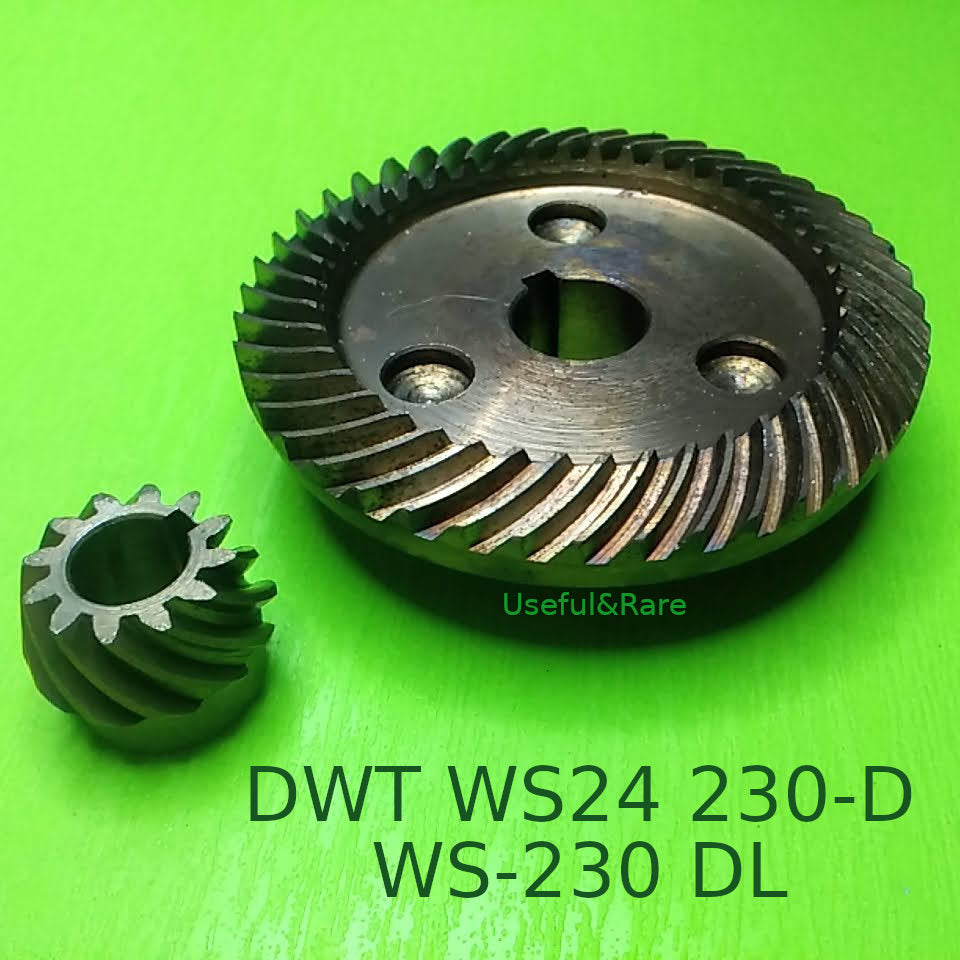

Angle grinder bevel gear pair: driven d74(outside) x 15(inner) mm on a key and pinion h17 x d10(inside) mm with key cut, compatible with Arsenal 230/2400, Craft Cag 230 2500, Zenith ZUSh-230/2500, DWT WS24 230-D, WS-230 DL, ELTOS 230 and some other angle grinders with 230 cutting disc
| Inner diameter of large gear D1, mm |
15 |
| Outer diameter of large gear D2, mm |
74 |
| Inner diameter of small gear d1, mm |
10 |
| Height of small gear h, mm |
18 |
| Type of small gear |
skirt for keyway |
| Number of teeth BS Z, pcs |
44 |
| Number of teeth МШ Z, pcs |
12 |
