Description

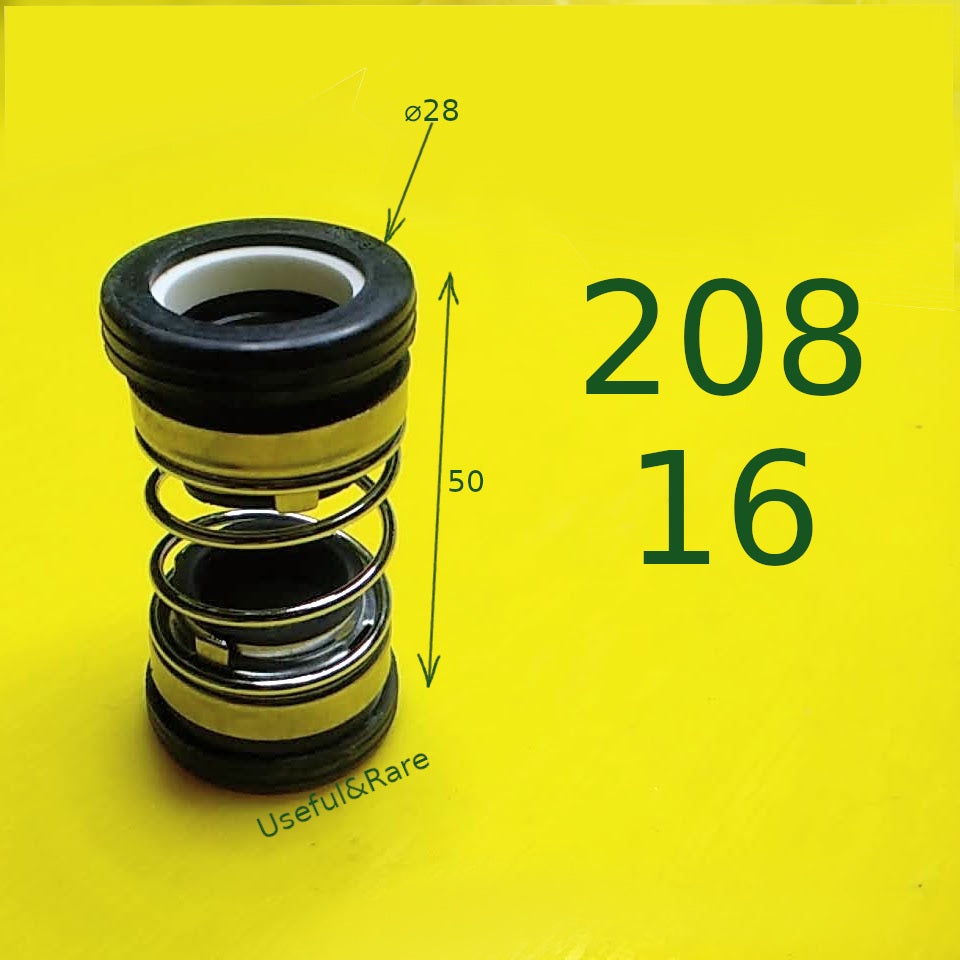

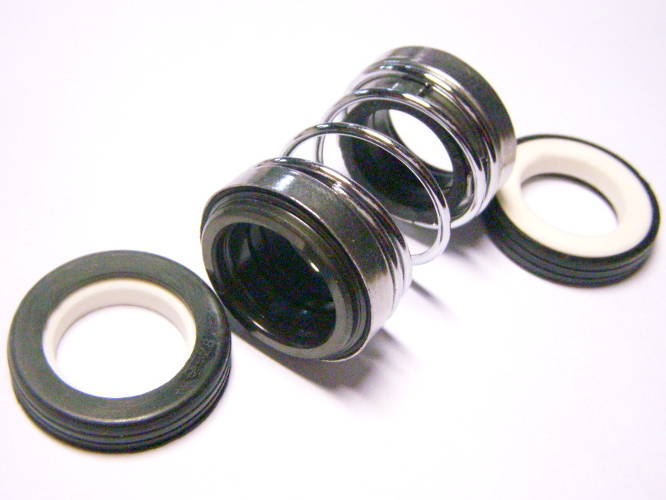

Dual mechanical ceramic-graphite seal 208-16 on 16 mm fecal/ drainage pump rotor shaft. The outer body diameter is ~27 mm, the total height with stationary rings is 50~52 mm, the diameter of the stationary ceramic ring (in elastic band) is 28 mm. Compatible with different drainage effluent cold water pumps
On a 16 mm rotor shaft
Two rings of 28 mm, 6 mm high
Height of the spring base without rings - 42 mm
Total height with rings 54 mm
