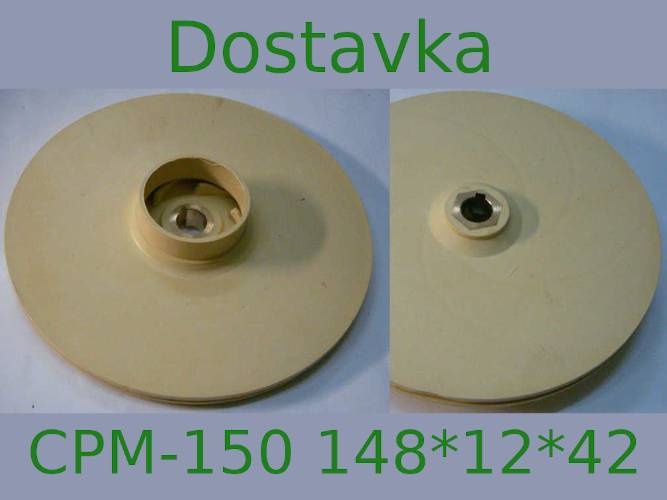

Pedrollo CPM-150 Rudes CPm-158 pump Impeller wheel 149*12*41

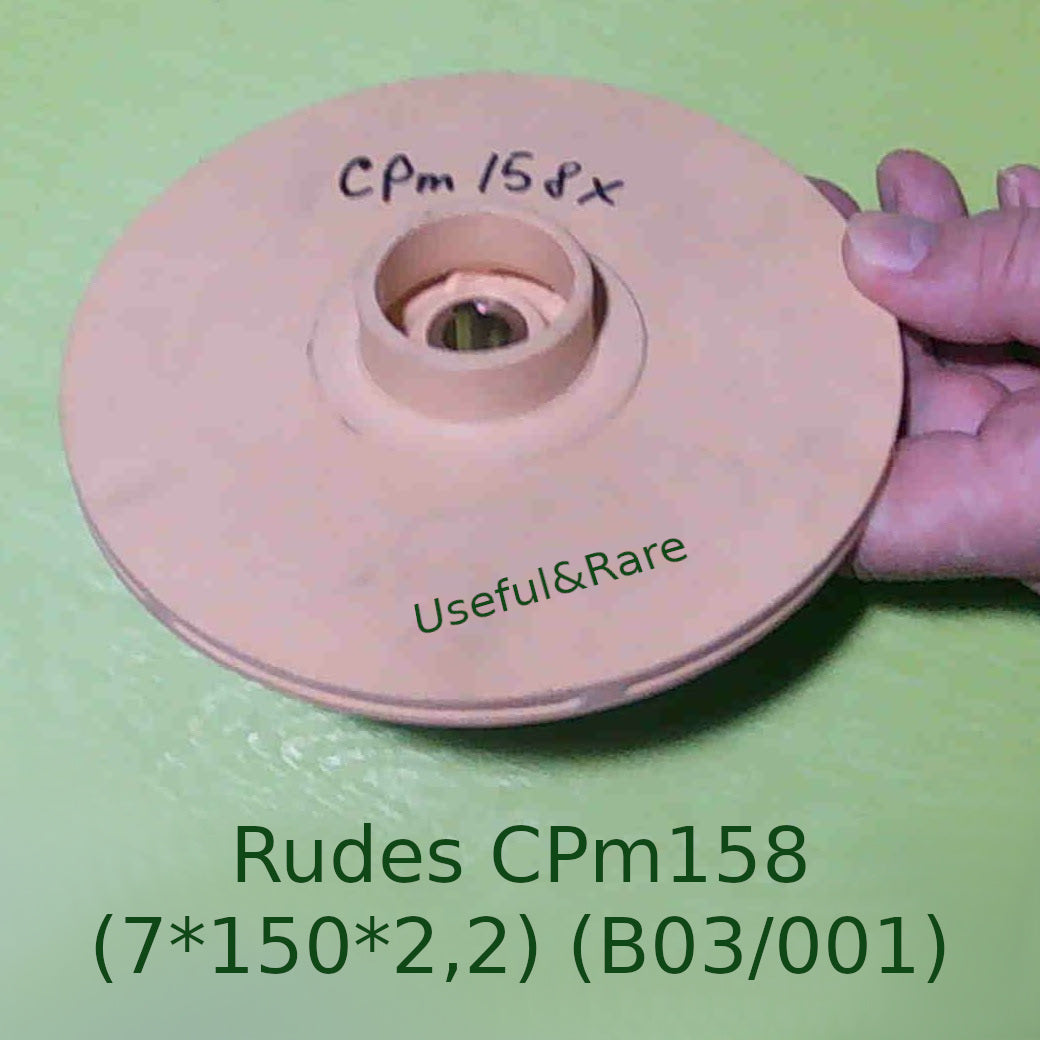

Centrifugal water pump carbon impeller wheel CPm158 (plastic) (h7*d150*h2.2) Rudes (B03/001) with diameter 148~150 mm, brass seat 12 mm under the key, suction pipe 41~42 mm, compatible with Forwater, Kenle/ Rudes CPm-158, Andar, Taifu JET 150, Pedrollo CPM-150 pump, sleeve depth is usually 15-17 mm. Check the inner diameter of the suction canal in the diffuser so that it is slightly larger than the suction branch of the wheel

Outer diameter 150mm
Central hole 12mm with key
External diameter of the suction pipe 41mm
Between the blade discs 2.2mm
Blade disc height 8mm
Depth of the central bushing 17mm
