Description

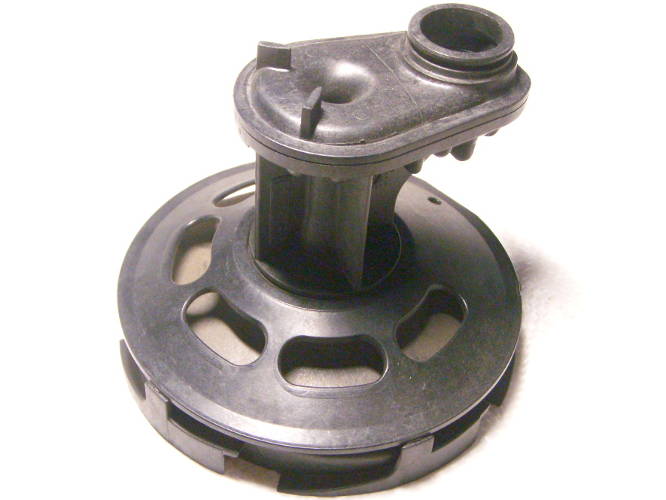

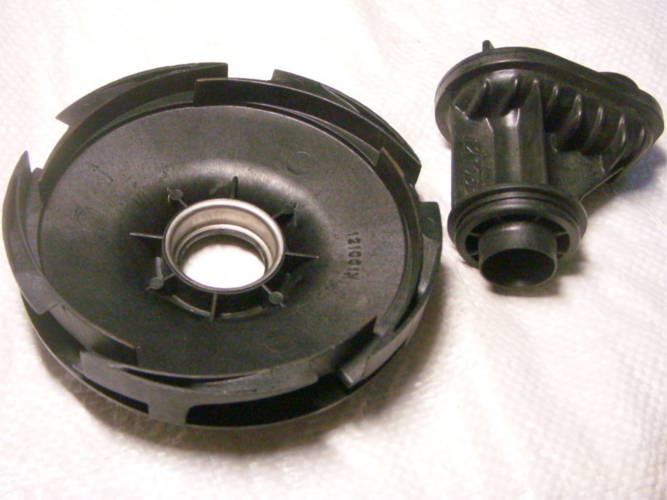

Diffuser with venturi tube (121001X + 121065) for replace in Pedrollo JCR -series water pump: JCRm 1C,1B,1A, JCR 10M, JCR 12M, JCR 15M, JCRm 10M, JCRm 12M, JCRm 15M of the previous series with impeller up to 134 mm.
Outside diameter 164mm
Total height with venturi ~144mm
Compatibility list
JCR 10M - 230 / 400V Release: -
JCR 10M - 230 / 400V Release: A
JCR 10M - 230 / 400V Release: B
JCR 10M - 230 / 400V Release: C up to 04/2010
JCR 10M - 230 / 400V Release: D up to 05/2012
JCR 12M - 230 / 400V Release: -
JCR 12M - 230 / 400V Release: A
JCR 15M - 230 / 400V Release: -
JCR 15M - 230 / 400V Release: A
JCR 15M - 230 / 400V Release: B
JCR 15M - 230 / 400V Release: C
JCR 15M - 230 / 400V Release: D up to 05/2012
JCRm 10M - 230V Release: -
JCRm 10M - 230V Release: A
JCRm 10M - 230V Release: B
JCRm 10M - 230V Release: C up tu 05/2012
JCRm 12M - 230V Release: -
JCRm 12M - 230V Release: A
JCRm 15M - 230V Release: -
JCRm 15M - 230V Release: A
JCRm 15M - 230V Release: B
JCRm 15M - 230V Release: C
Pedrollo JCRm 1C , Pedrollo JCR 1C
Pedrollo JCRm 1B , Pedrollo JCR 1B
Pedrollo JCRm 1A , Pedrollo JCR 1A
