Stainless steel drum spider 244196 for Bosch BS-001 washing machine

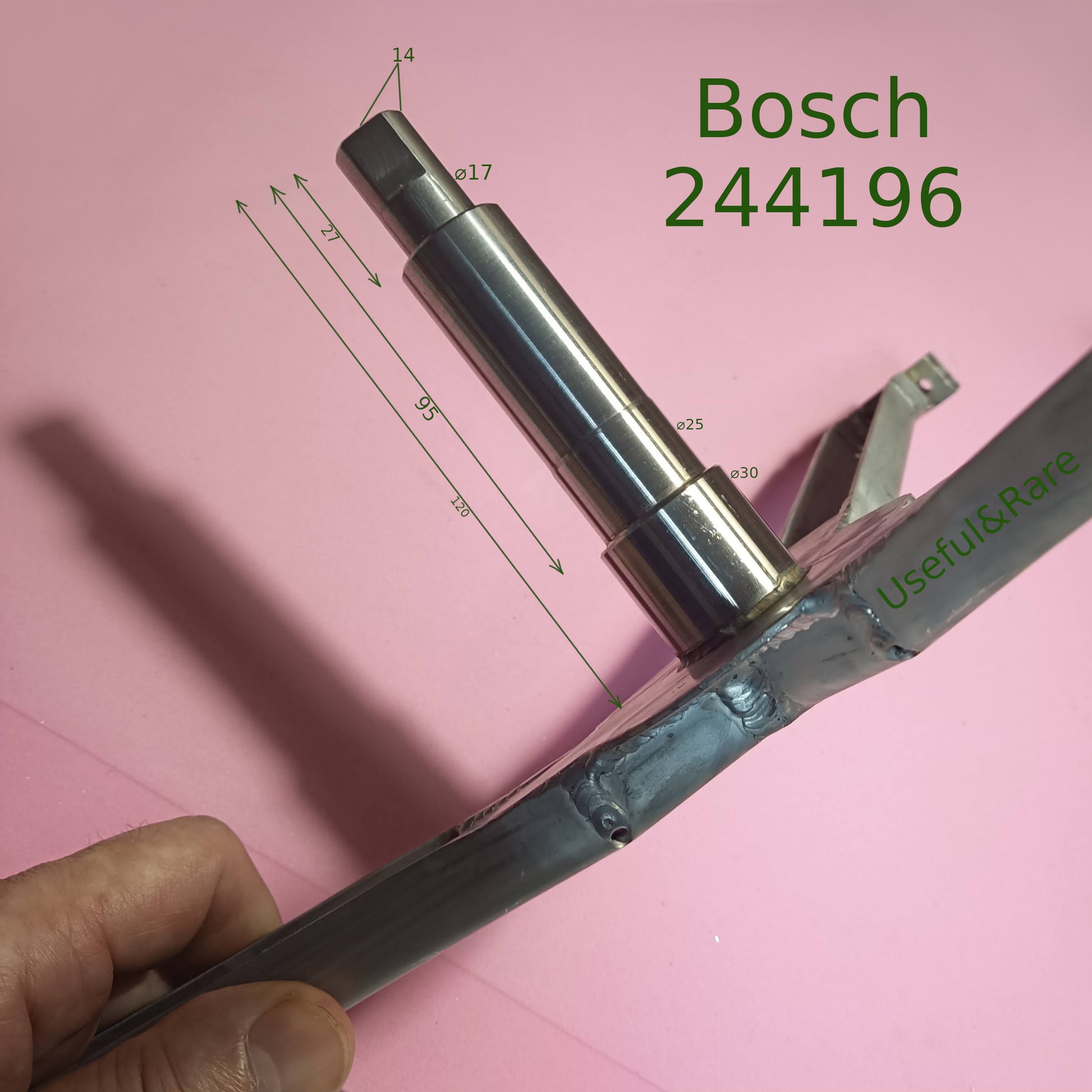

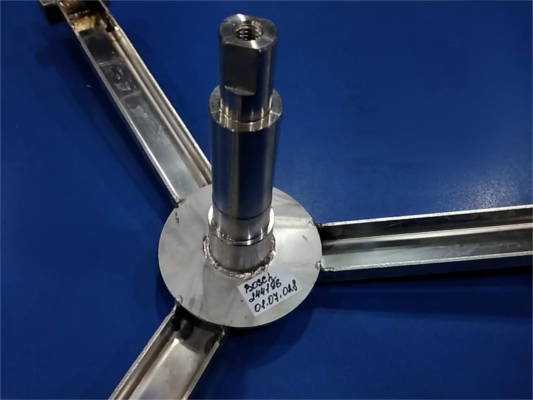

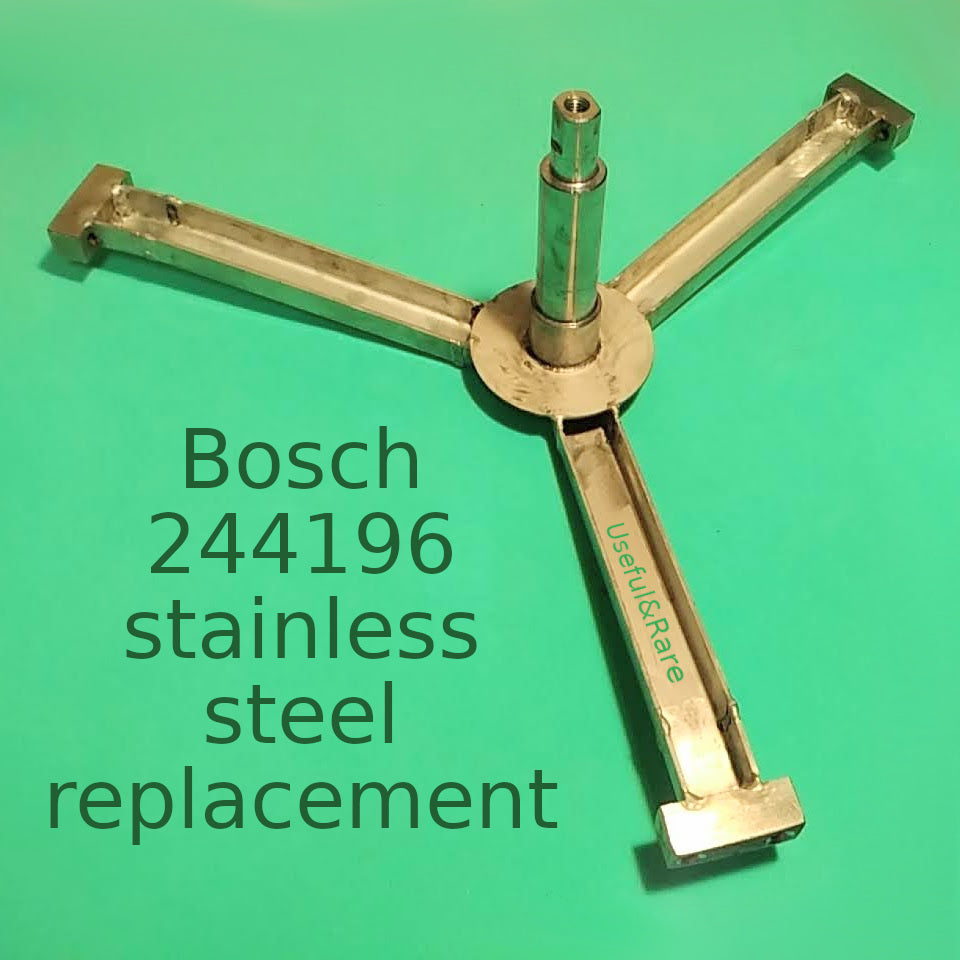

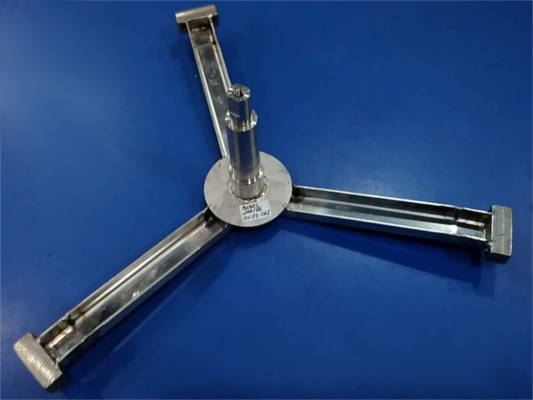

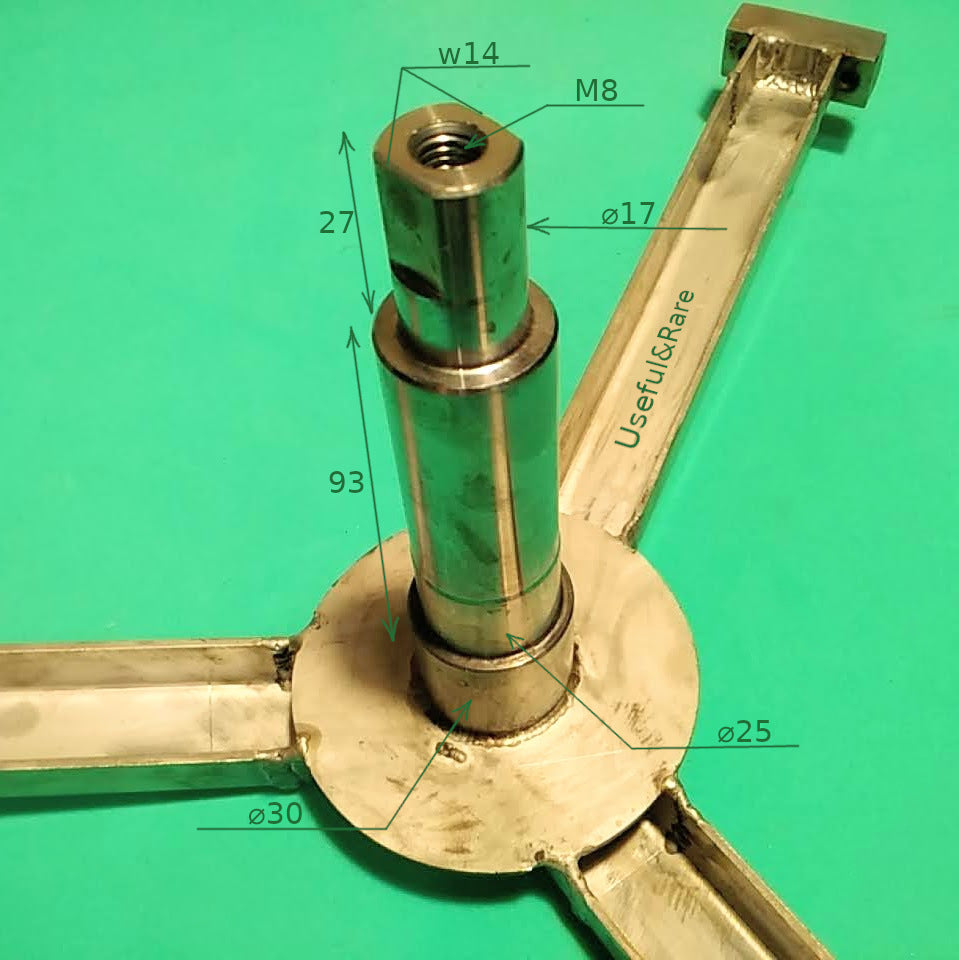

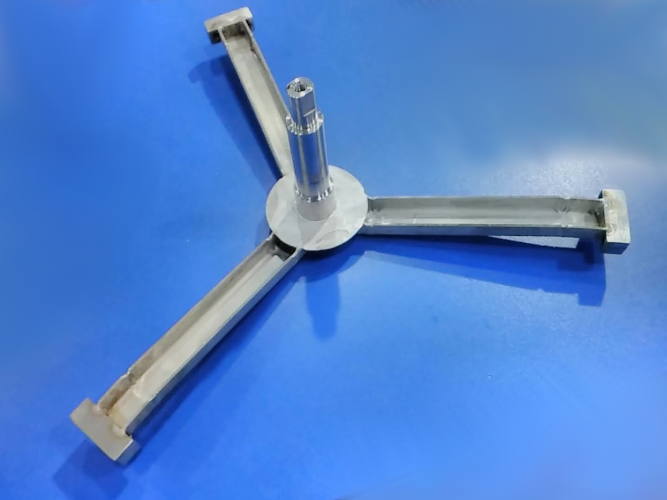

The drum support spider 244196 (Bosch BS-001) of the Bosch washing machine, made in custom factory of stainless steel, to hold the drum and ensure its uniform rotation, main bearing 205, second bearing 203, seat ring diameter for the oil seal 30 mm, total shaft length 116 mm, distance from the shaft axis to the drum mounting axis 225 mm, fasteners not included. It usually fails due to damage to the bearing assembly, constant drum overloads with linen, vibration, the use of poor-quality grease for the oil seal

Parameters:
