Description

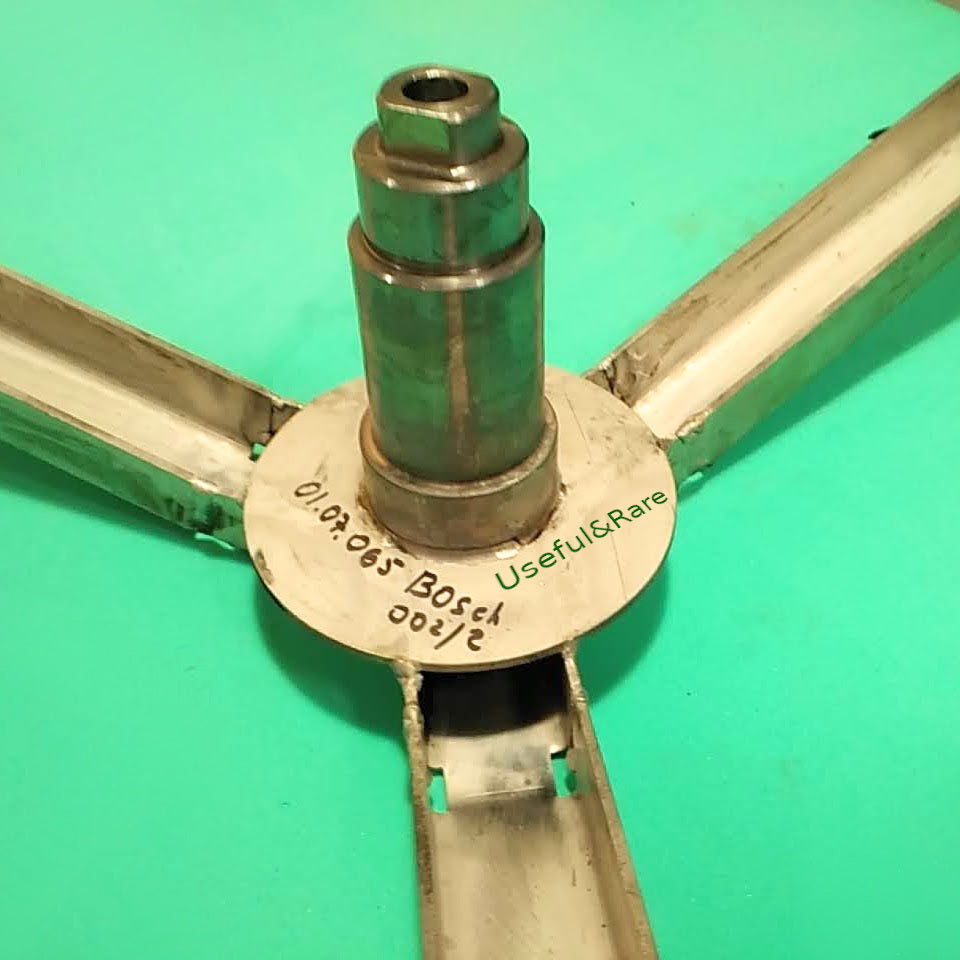

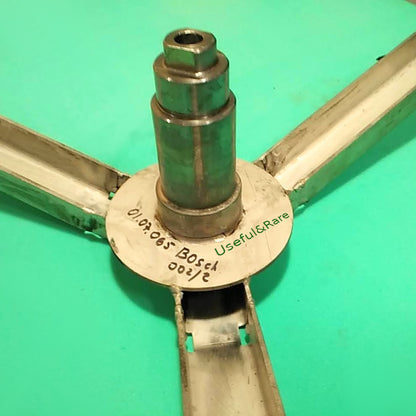

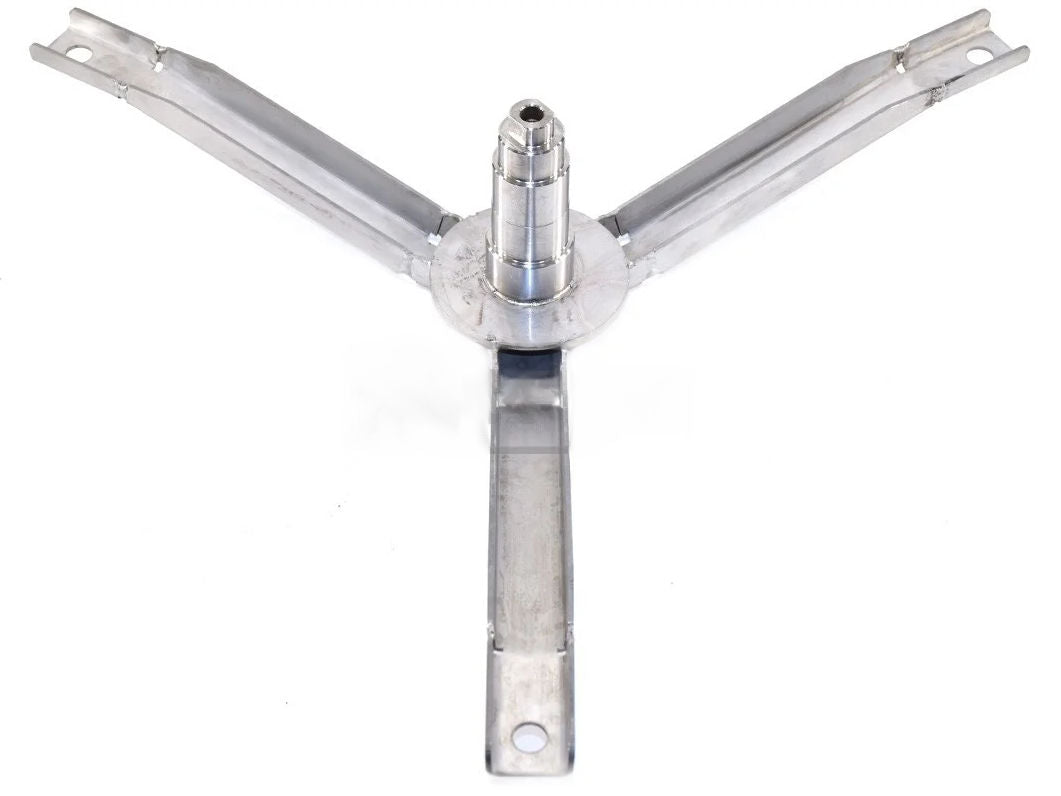

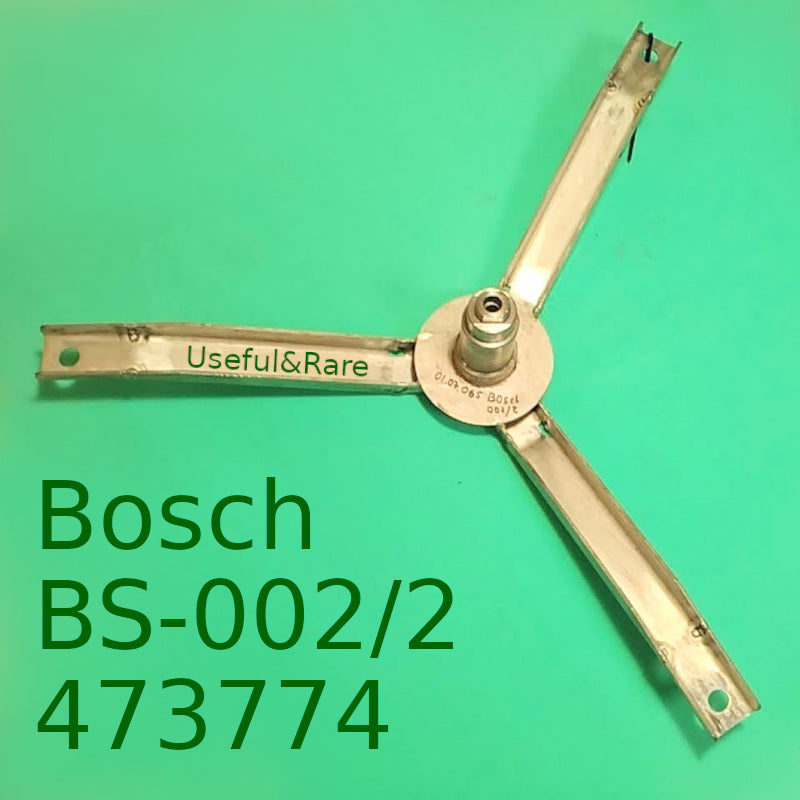

Bosch (BS-002/2) washing machine high-strength stainless steel replacement Drum support spider 473734. Made in the custom factory from solid stainless steel for the durable, long-time work purpose. Consists of a stainless steel bearing seat ring located in the middle and a metal core from which three equally spaced blades extend. The spider promotes uniform rotation of the drum and reliably fixes it at a certain level. The most common cause of drom spider failure is water seepage into the bearings through a worn oil seal
Latest products updates
Washing machine drum support
Washing machine parts
| Additional characteristics | |
| Distance between the center of the shaft and the attachment to the drum | 220 mm |
| Shaft height | 78 mm |
| Mount type | bolt M10 |
| Material | stainless steel |
| Pulley seat | 17x14 mm |
| Distance from sleeve to outer bearing | 39.5mm |
| Distance from outer bearing seat to shaft end | 22 mm |
| Sleeve height | 16 mm |
| Shaft diameter | 30 mm (6206) |
| Outer bearing fit diameter | 25 mm (6205) |
| Bushing diameter | 35 mm |
