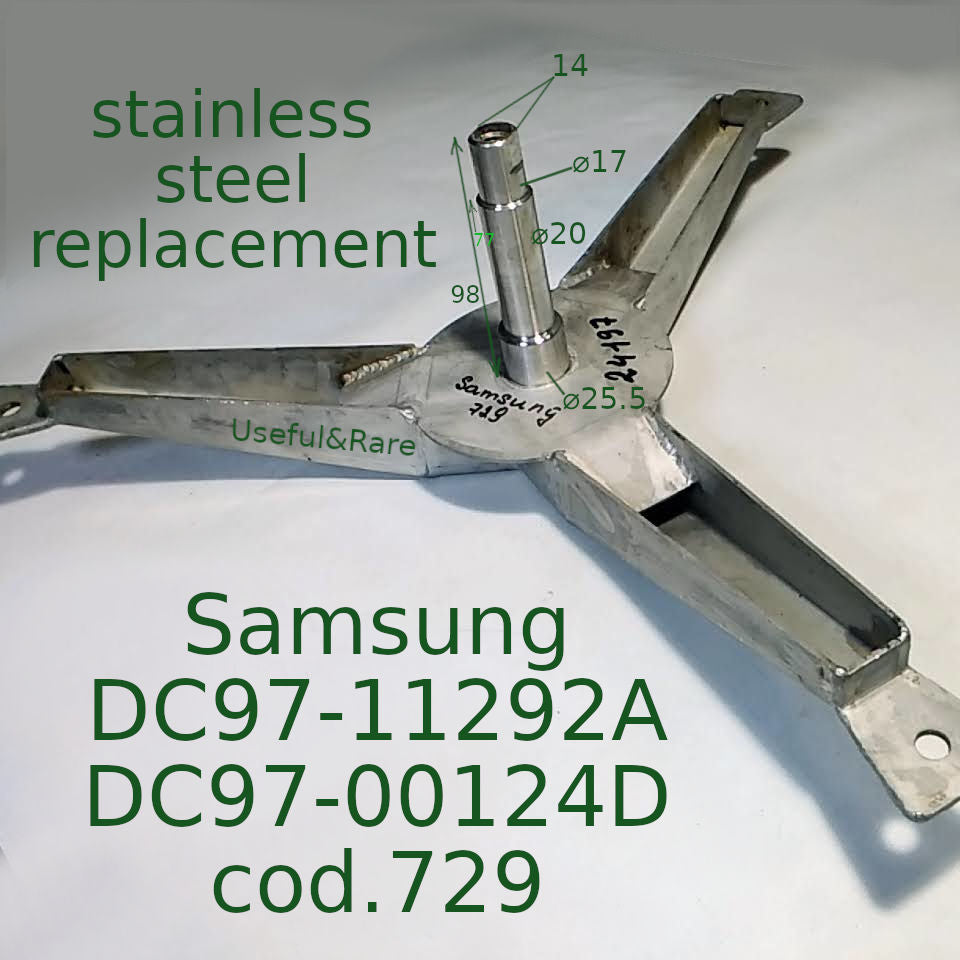

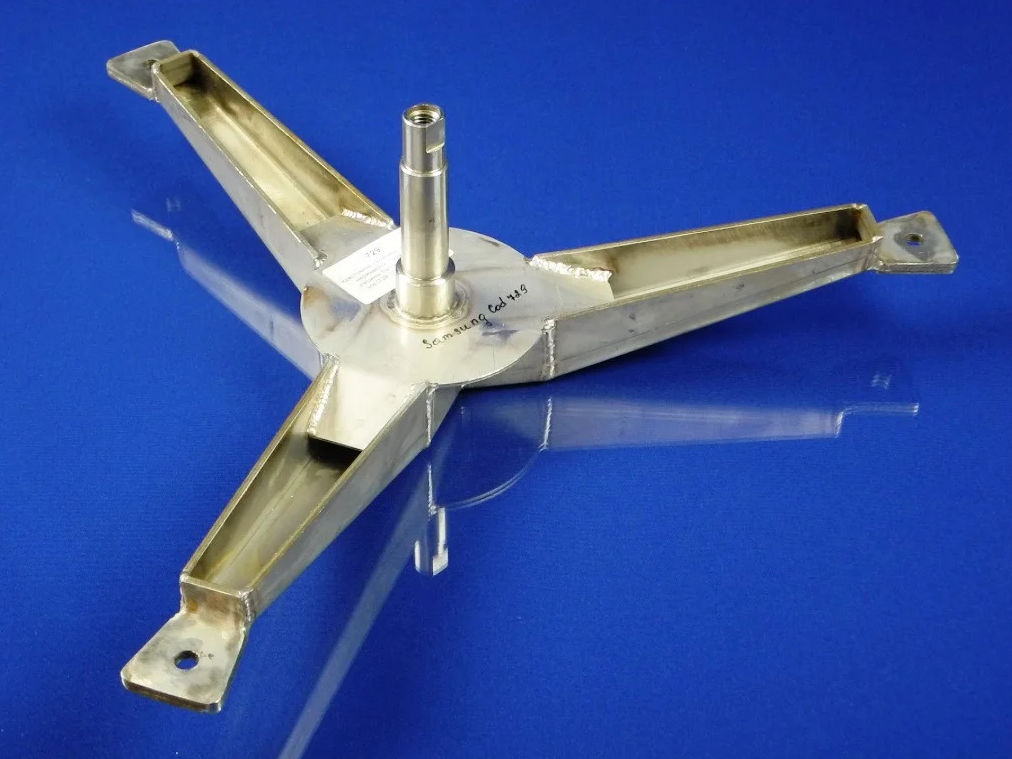

High-strength drum support spider (DC97-01819B) for replace in Samsung (analog cod.729) washing machine. Made in custom factory from solid stainless steel for the durable work purpose and long-term operation
Parameters | |
The distance between the center of the shaft and the attachment to the drum | 220 mm |
Shaft height | 97.5 mm |
Fastening type | bolt M11 |
The distance from the sleeve to the outer bearing | 54 mm |
The distance from the landing place of the outer bearing to the end of the shaft | 22.5mm |
Shaft diameter | 20 mm (6204) |
The diameter of the sleeve for the stuffing box | 25.5mm |
The landing diameter of the external bearing | 17 mm (6203) |
Place of landing of the pulley | 17x14 mm |
Material | Stainless Steel |
Bushing height | 20 mm |
Compatibility list
Samsung C1035 WF-R1062 C1035A WF-R1062/YLP C1035AEW/XTL WF-R1062/YLR C1035AFS/XTC WF-R1062/YLW C1035AGS/XSP WF-R1062GW/XEH C1035AIS/YFQ WF-R1065S C1035AS WF-R1065S/XSC C1035ASE/XSE WF-R106N C1035ASE/XST WF-R106N/XSC C1035EW/XSH WF-R106NS C835 WF-R106NS/XSC C835EW/XSH WF-R106NS/XSH C835IW/XSA WF-R1075M C835IW/YMI WF-R1075M/XSC F1215J WF-R107NK R1013J WF-R107NK/XSC R1013JGW/YLR WF-R1254 R1013JGW/YLW WF-R1254/YLR R1013JGWU/YLW WF-R1254/YLW R1015J WF-R1256 R1015JGW/YLR WF-R1256/XEH R1015JGW/YLW WF-R1256/YLP R1015JGWU/YLW WF-R1256/YLW R1031 WF-R125A R1031GWS/YLR WF-R125AC/YLP R1031GWS/YLU WF-R125AC/YLR R1031GWS/YLW WF-R125AC/YLW R1031GWS/YPP WF-R125AV R1031GWS1/XEH WF-R125AV/XEO R1031GWS1/XEO WF-R125AV/YLP R1031GWS1/YLR WF-R125N R1031GWS1/YLU WF-R125NC/YLR R1031GWS1/YLW WF-R125NC/YLW R1031GWS1/YPP WF-R853 R1031GWS1U/YLW WF-R853/XSC R1033 WF-R854 R1033GWC/YLP WF-R854/YLP R1033GWC/YLW WF-R854/YLR R1033GWC1/YLP WF-R854/YLW R1033GWC1/YLU WF-R856 R1033GWC1/YLW WF-R856/YLP R1033GWC1U/YLW WF-R856/YLW R1042 WF-R861 R1042DW/XAP WF-R861/YLP R1043 WF-R861/YLR R1043EW/XBG WF-R861/YLW R1043EW/XTL WF-R862 R1043EW/YGI WF-R862/YLP R1043FW/YIA WF-R862/YLR R1043GW/XEH WF-R862/YLW R1043GW/YLP WF-R862GW/XEH R1043GW/YLW WF-R865 R1043GWU/YLW WF-R865/XSC R1045 WF6520N7W R1045A WF6520N7W/YLP R1045A/XSC WF6520N7W/YLR R1045AGW/YLP WF6520N7W/YLW R1045AGW/YLR WF6520N8C R1045AGW/YLW WF6520N8C/XSC R1045AGWU/YLW WF6520S4V R1045AV WF6520S4V/YLR R1045AVGW1/XEH WF6520S4V/YLW R1045AVGW1/XEO WF6520S6V R1045AVGW1/YLE WF6520S6V/YLP R1045GW/XAG WF6520S6V/YLR R1052 WF6520S6V/YLW R1052GWS/YLP WF6520S7W R1052GWS/YLR WF6520S7W/YLP R1052GWS/YLW WF6520S7W/YLR R1052GWSU/YLW WF6520S7W/YLW R1213J WF6520S9C R1213JGW/YLR WF6520S9C/YLP R1213JGW/YLW WF6520S9C/YLW R1213JGWU/YLW WF6520S9R R1215J WF6520S9R/YLP R1215JGW/YLR WF6520S9R/YLW R1215JGW/YLW WF6522N7W R1215JGWU/YLW WF6522N7W/YLW R1233 WF6522S4V R1233GWC/YLP WF6522S4V/YLR R1233GWC/YLW WF6522S4V/YLW R1245 WF6522S6V R1245A WF6522S6V/YLP R1245A/XSC WF6522S6V/YLR R1245AS WF6522S6V/YLW R1245AS/XSC WF6522S7 R1245AV WF6522S7W R1245AVGW/YLP WF6522S7W/YLR R1245AVGW/YLR WF6522S7W/YLW R1245AVGW/YLW WF6522S8C R1245AVGW1/SWS WF6522S8C/XSH R1245AVGW1/XAG WF6522S8S R1245AVGW1/XEH WF6522S8S/XSC R1245AVGW1/YLE WF6528N4W R1245AVGWU/YLW WF6528N4W/YLW R1245C WF6528N6W R1245CEW/XSH WF6528N6W/YLW R1245GW/SWS WF6528N7W R1245GW/XAG WF6528N7W/YLP R1245V WF6528N7W/YLR R1245VEW/XSH WF6528N7W/YLW R631 WF6528S7W R631GWS/YLW WF6528S7W/YLP R813J WF6550S7W R813JGW/YLR WF6550S7W/XTL R813JGW/YLW WF6550S7WU/XTL R813JGWU/YLW WF7520N1B R815J WF7520N1B/YLP R815JGW/YLR WF7520NAW R815JGW/YLW WF7520NAW/XEO R815JGWU/YLW WF7520NUV R831 WF7520NUV/XET R831GWS/YLR WF7520NUW R831GWS/YLU WF7520NUW/YLE R831GWS/YLW WF7520NUW/YLP R831GWS/YPP WF7520NUW/YLW R831GWS1/XEH WF7520S8C R831GWS1/XEO WF7520S8C/YLP R831GWS1/YLU WF7520S8C/YLW R831GWS1/YLW WF7520S9C R831GWS1/YPP WF7520S9C/YLP R831GWS1U/YLW WF7520S9C/YLW R833 WF7520S9R R833GW/YLP WF7520S9R/YLP R833GW/YLW WF7520S9R/YLW R833GW1/YLP WF7520SAV R833GW1/YLW WF7520SAV/YLP R833GW1U/YLW WF7520SAV/YLW R843 WF7520SUV R843GW/XEH WF7520SUV/YLP R843GW/YLP WF7520SUV/YLR R843GW/YLW WF7520SUV/YLW R843GWU/YLW WF7522NAW R852 WF7522NAW/XEH R852GWS/YLP WF7522NUW R852GWS/YLR WF7522NUW/YLE R852GWS/YLW WF7522S6S R852GWSU/YLW WF7522S6S/YLP WF-C863 WF7522S8C WF-C863/XSC WF7522S8C/YLP WF-C963AC WF7522S8C/YLW WF-C963AC/XSC WF7522S8R WF-C963AR WF7522S8R/YLP WF-C963AR/XSC WF7522S8R/YLR WF-C963C WF7522S8R/YLW WF-C963C/XSC WF7522S8V WF-C963R WF7522S8V/XEO WF-C963R/XSC WF7522S9C WF-R1053 WF7522S9C/YLR WF-R1053/XSC WF7522S9C/YLW WF-R1053A/XSC WF7522S9R WF-R1053S/XSC WF7522S9R/YLP WF-R1054 WF7522S9R/YLR WF-R1054/YLP WF7522S9R/YLW WF-R1054/YLR WF7522SUC WF-R1054/YLW WF7522SUC/YLP WF-R1056 WF7522SUV WF-R1056/YLP WF7522SUV/XEH WF-R1056/YLW WF7522SUV/XEO WF-R1056C WF7522SUV/YLP WF-R1056C/XSC WF7522SUV/YLR WF-R1056R WF7522SUV/YLW WF-R1056R/XSC WF7528N2W WF-R105A WF7528N2W/YLP WF-R105AC/XSC WF7528NUW WF-R105AS/XSC WF7528NUW/YLP WF-R105AV/YLP WF7550SAU/XTL WF-R105AV/YLW WF8520N7W WF-R105N WF8520N7W/YLE WF-R105NV/YLR WF8520S9Q WF-R105NV/YLW WF8520S9Q/YLP WF-R1061 WF8520S9Q/YLW WF-R1061/YLP WF8522S9P WF-R1061/YLR WF8522S9P/YLP WF-R1061/YLW WF8522S9P/YLR WF-R1061EW/XTL WF8522S9P/YLW WF-R1061GW/XEO WF8522S9R WF-R1061W1/XTL WF8522S9R/XEH WF-R1061WU/XTL WF8528N7W WF8528N7W/YLE
