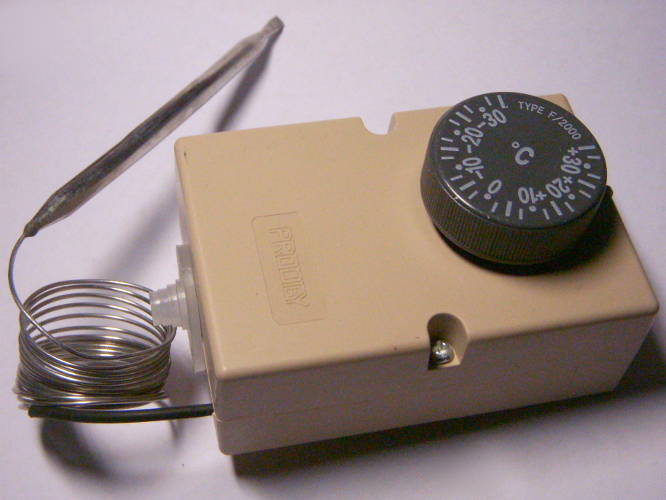

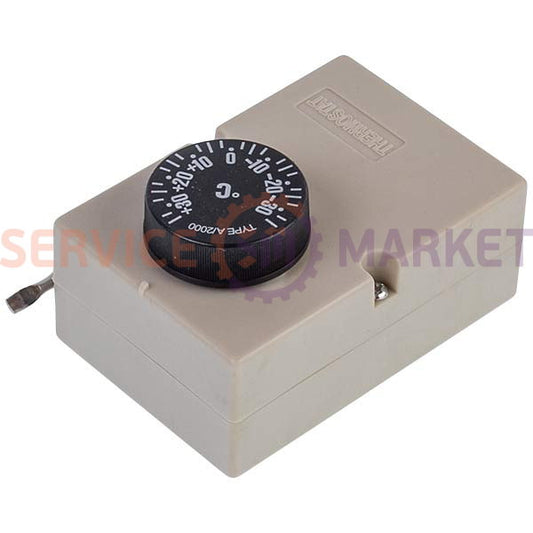

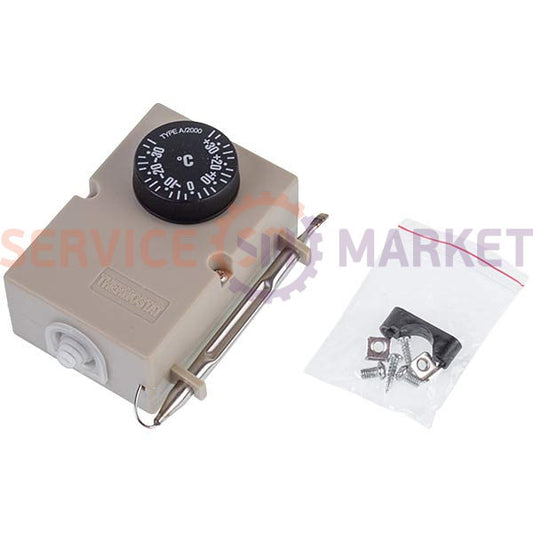

Temperature alarm controller -30°C+30°C Prodigy F/2000

Universal alarm thermostat in the temperature range from -30°C to +30°C

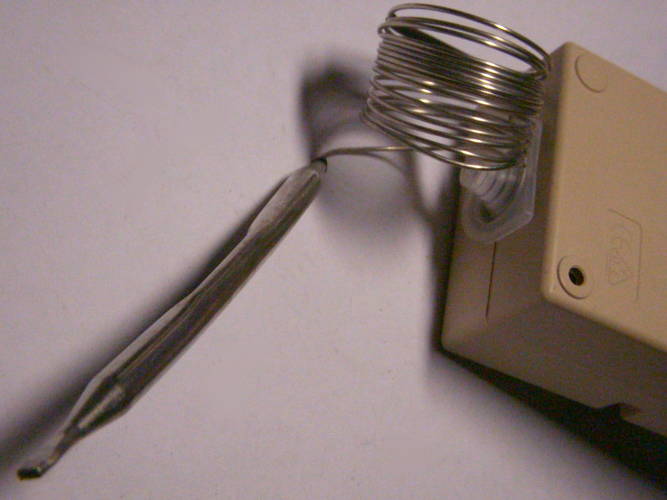

Thickness of sensitive bulb 6 mm
Replacement of thermostat DTK-2000 and Danfoss UT72
Capillary length: 1.5 m
Temperature range: -30°C ... +30°C (accuracy +/- 3°C)
Relay Type: SPDT (double pole drop contact)
Dimensions: 86x58x34 (excluding handle)/86x58x48 (including handle)

Operating principle:

when the set temperature is reached, the contact pair P1-1 (16A) opens and the contact pair P1-2 (4A) closes
