Description

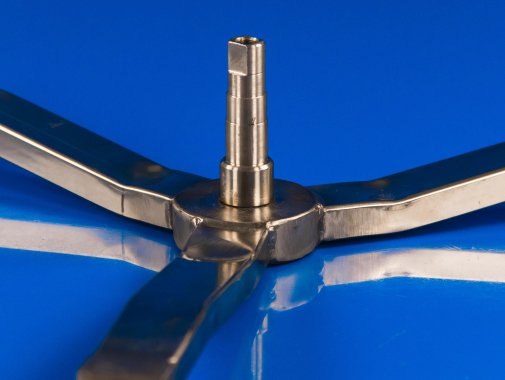

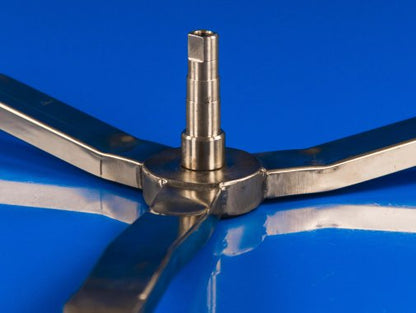

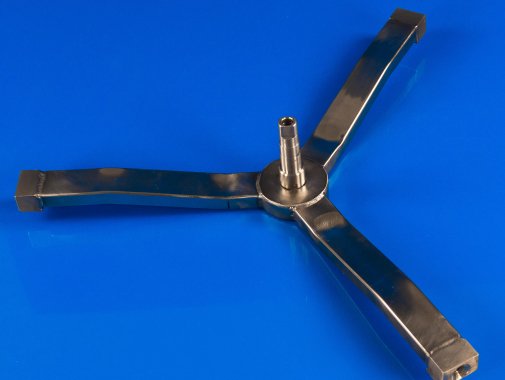

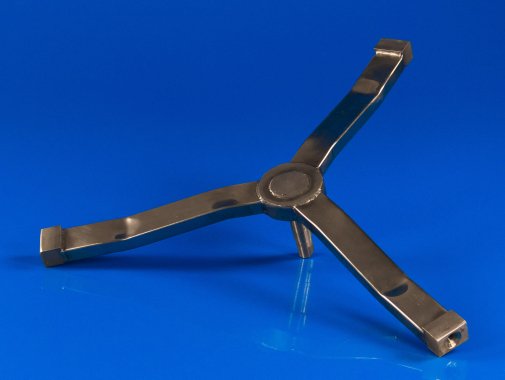

Support spider for the drum of the washing machine Indesit C00097236, In-001 made of solid stainless steel.
Parameters
- Distance between the center of the shaft and fastenings to the drum 230 mm
- Height of the shaft 112 mm
- Mounting type M8 bolt
- Distance between the bushing and the outer bearing 69 mm
- Distance between the seat of the outer bearing to the end of the shaft 30 mm Shaft diameter 17 mm (6203)
- Bushing diameter for oil seal 22 mm (oil seal 22*40*8/11.5 and 22*40*8.5)
- Outside bearing diameter 15 mm (6202)
- Pulley seat 15x11 mm
- Material stainless steel
- Bushing height 14 mm
Compatibility list
Indesit EWC61052WNA WI42KW 46372260001 Indesit EWC61052WNA 61542050000 WI52EX Indesit EWD61052WEU WI52EX 46305020000 Indesit EWD61052WEU 85887670440 WI52EX 46305020900 Indesit EWD61052WEU 85887670497 WI52EX 46305020901 Indesit EWD61052WEU/1 WI52EX60HZ Indesit EWD61052WEU/1 61033280097 WI52EX60HZ 46305010000 Indesit EWD61052WEU/1 61033280197 WI52EX60HZ 46305010900 Indesit IWB51051CECOEU WI52EX60HZ 46305010901 Indesit IWB51051CECOEU 85871680040 WI52KW Indesit IWB51051CECOEU 85871680097 WI52KW 46305000000 Indesit IWC60851CECOEU WI52KW 46305000900 Indesit IWC60851CECOEU 85874870040 WI52KW 46305000901 Indesit IWC60851CECOEU 85874870097 WI5FR Indesit IWC60851CECOIT WI5FR 46301370000 Indesit IWC60851CECOIT 85874550040 WI5FR 46301370900 Indesit IWC60851CECOIT 85874550097 WI5FR 46301370901 Indesit IWC61051EU.M WI600IT Indesit IWC61051EU.M 85893330140 WI600IT 46319690000 Indesit IWC61051EU.M 85893330197 WI600IT 46319690900 Indesit IWC61052CECOIT WI60IT Indesit IWC61052CECOIT 85875270040 WI60IT 46302300000 Indesit IWC61052CECOIT 85875270097 WI60IT 46302300900 Indesit IWC61052CECOTK WI60IT 46302300901 Indesit IWC61052CECOTK 85875310040 WI62EX Indesit IWC61052CECOTK 85875310097 WI62EX 46305050000 Indesit IWC61052CFR WI62EX 46305050900 Indesit IWC61052CFR 85875280040 WI62EX 46305050901 Indesit IWC61052CFR 85875280097 WI62KW Indesit IWCN61051X9EU WI62KW 46305040000 Indesit IWCN61051X9EU 85895870140 WI62KW 46305040900 Indesit IWCN61051X9EU 85895870197 WI62KW 46305040901 Indesit IWCN61051X9EU 85895870297 WI6EU Indesit IWD51052CECOTK WI6EU 46301380000 Indesit IWD51052CECOTK 85898240040 WI6EU 46301380900 Indesit IWD61052CECOPL WI6EU 46301380901 Indesit IWD61052CECOPL 61544800000 WI70TK Indesit IWE61051CECOEU WI70TK 46304840000 Indesit IWE61051CECOEU 85874880040 WI70TK 46304840900 Indesit IWE61051CECOEU 85874880097 WI81EX Indesit IWE61051CECOEX WI81EX 46303520000 Indesit IWE61051CECOEX 85877200040 WI81EX 46303520900 Indesit IWE61051CECOEX 85877200097 WI82EX60HZ Indesit IWE61051CECOGCC WI82EX60HZ 46305150000 Indesit IWE61051CECOGCC 85877210040 WI82EX60HZ 46305150900 Indesit IWE61051CECOGCC 85877210097 WI82SING Indesit LNA1000FR WI82SING 46305070000 Indesit LNA1000FR 46293780000 WI82SING 46305070900 Indesit LNA1000FR 46293780040 WI8EU Indesit W101UK WI8EU 46318130000 Indesit W101UK 46286260000 WI8EU 46318130900 Indesit W101UK 46286260040 WIA101EU Indesit W103NL WIA101EU 46344470000 Indesit W103NL 46246000000 WIA101EU 46344470005 Indesit W103NL 46246000001 WIA101EX Indesit W103NL 46246000030 WIA101EX 46344860000 Indesit W103TTK WIA101EX 46344860005 Indesit W103TTK 46233370100 WIA102CH Indesit W103TTK 46233370101 WIA102CH 46344480000 Indesit W103TTK 46233370130 WIA102EX Indesit W104DE WIA102EX 46344460000 Indesit W104DE 46248340000 WIA102EX 46344460005 Indesit W104DE 46248340001 WIA102PL Indesit W104DE 46248340030 WIA102PL 45344450000 Indesit W104NL WIA102PL 46344450000 Indesit W104NL 46233860100 WIA102PL 46344450005 Indesit W104NL 46233860101 WIA500EU Indesit W104NL 46233860130 WIA500EU 46460360000 Indesit W104SP WIA600EU Indesit W104SP 46244150000 WIA600EU 46344130000 Indesit W104SP 46244150001 WIA600EU 46344130005 Indesit W104SP 46244150030 WIA600EU 46344130105 Indesit W104TBE WIA81EX Indesit W104TBE 46254740000 WIA81EX 46344850005 Indesit W104TBE 46254740001 WIA82EX60HZ Indesit W104TBE 46254740030 WIA82EX60HZ 46344420000 Indesit W104TCH WIA8EU Indesit W104TCH 46281930000 WIA8EU 46344430000 Indesit W104TCH 46281930030 WIA8EU 46344430005 Indesit W104TEX WIAV60IT Indesit W104TEX 46233320100 WIAV60IT 46344120000 Indesit W104TEX 46233320101 WIAV60IT 46344120005 Indesit W104TEX 46233320130 WIAV80IT Indesit W104TTK WIAV80IT 46344150000 Indesit W104TTK 46284000000 WIAV80IT 46344150005 Indesit W104TTK 46284000030 WIN101EU Indesit W105FR WIN101EU 46464840100 Indesit W105FR 46277000000 WIN101EX Indesit W105FR 46277000040 WIN101EX 46464580100 Indesit W107FR WIN101EX 46464580103 Indesit W107FR 46286760000 WIN101EX 46464580185 Indesit W107FR 46286760040 WIN101EX 46464580200 Indesit W113UK WIN102EX Indesit W113UK 46233350100 WIN102EX 46464820100 Indesit W113UK 46233350101 WIN102PL Indesit W113UK 46233350140 WIN102PL 46464810100 Indesit W41SP WIN102PL 46464810103 Indesit W41SP 46275050000 WIN102PL 46464810185 Indesit W41SP 46275050030 WIN500EU Indesit W432SIT WIN500EU 46464720100 Indesit W432SIT 46248060100 WIN500EU 46464720103 Indesit W432SIT 46248060130 WIN500EU 46464720185 Indesit W43EX WIN600EU Indesit W43EX 46233110100 WIN600EU 46464620100 Indesit W43EX 46233110200 WIN600EU 46464620103 Indesit W43EX 46233110230 WIN600EU 46464620185 Indesit W43FR WIN60TK Indesit W43FR 46233120100 WIN60TK 46464760100 Indesit W43FR 46233120130 WIN60TK 46464760103 Indesit W43IT WIN60TK 46464760185 Indesit W43IT 46232990100 WIN70EU Indesit W43IT 46232990130 WIN70EU 46545430100 Indesit W43SP WIN81EX Indesit W43SP 46275060000 WIN81EX 46464570100 Indesit W43SP 46275060030 WIN81EX 46464570103 Indesit W43TEX WIN81EX 46464570185 Indesit W43TEX 46233060100 WIN81EX 46464570200 Indesit W43TEX 46233060130 WIN81IN Indesit W44IT WIN81IN 46599990000 Indesit W44IT 46232940100 WIN82EX60HZ Indesit W44IT 46232940130 WIN82EX60HZ 46592700000 Indesit W4521E WIN82EX60HZ 46592700003 Indesit W4521E 46253770100 WIN8EU Indesit W4521E 46253770130 WIN8EU 46464640100 Indesit W51SP WINV60IT Indesit W51SP 46275070000 WINV60IT 46464610100 Indesit W51SP 46275070030 WINV60IT 46464610103 Indesit W535PT WINV60IT 46464610185 Indesit W535PT 46233850100 WINV70IT Indesit W535PT 46233850130 WINV70IT 46528030100 Indesit W53FR WINV70IT 46528030103 Indesit W53FR 46254710000 WINV70IT 46528030185 Indesit W53FR 46254710030 WINV80IT Indesit W53IT WINV80IT 46464630100 Indesit W53IT 46233000100 WINV80IT 46464630103 Indesit W53IT 46233000130 WINV80IT 46464630185 Indesit W53SP WIV60IT Indesit W53SP 46233380100 WIV60IT 46302290000 Indesit W53SP 46233380130 WIV60IT 46302290900 Indesit W53TEX WIV80IT Indesit W53TEX 46247670000 WIV80IT 46302280000 Indesit W53TEX 46247670100 WIV80IT 46302280900 Indesit W53TEX 46247670130 WP100EX Indesit W61EX WP100EX 46277610000 Indesit W61EX 46295390000 WP100EX 46277610030 Indesit W61EX 46295390030 WP42IT Indesit W61EX 46304340000 WP42IT 46277590000 Indesit W61EX 46304340900 WP42IT 46277590030 Indesit W630FR WP62EX Indesit W630FR 46246130000 WP62EX 46277600000 Indesit W630FR 46246130030 WP62EX 46277600030 Indesit W634PT WP67EX Indesit W634PT 46246270000 WP67EX 46277570000 Indesit W634PT 46246270030 WP67EX 46277570030 Indesit W63EX WP80EX Indesit W63EX 46233070100 WP80EX 46295490000 Indesit W63EX 46233070130 WP80EX 46295490030 Indesit W63IT Ariston AB104IT Indesit W63IT 46232950000 Ariston AB104IT 46279130000 Indesit W63IT 46232950030 Ariston AB104IT 46279130030 Indesit W63SP Ariston AB107PT Indesit W63SP 46233160100 Ariston AB107PT 46270940000 Indesit W63SP 46233160130 Ariston AB107PT 46270940030 Indesit W63TAUS Ariston AB40EX Indesit W63TAUS 46258850100 Ariston AB40EX 46247330000 Indesit W63TAUS 46258850130 Ariston AB40EX 46247330030 Indesit W63TEX Ariston AB43AG Indesit W63TEX 46233050100 Ariston AB43AG 46243640000 Indesit W63TEX 46233050130 Ariston AB43AG 46243640030 Indesit W64IT Ariston AB43SP Indesit W64IT 46244130000 Ariston AB43SP 46238990100 Indesit W64IT 46244130030 Ariston AB43SP 46238990130 Indesit W6521E Ariston AB52PT Indesit W6521E 46253780100 Ariston AB52PT 46275540000 Indesit W6521E 46253780130 Ariston AB52PT 46275540030 Indesit W81EX Ariston AB53AG Indesit W81EX 46295400000 Ariston AB53AG 46270880000 Indesit W81EX 46295400030 Ariston AB53AG 46270880030 Indesit W83DE Ariston AB53EO Indesit W83DE 46248330000 Ariston AB53EO 46237800000 Indesit W83DE 46248330001 Ariston AB53EO 46237800030 Indesit W83DE 46248330030 Ariston AB53EX50/60HZ Indesit W83FR Ariston AB53EX50/60HZ 46239080000 Indesit W83FR 46286740000 Ariston AB53EX50/60HZ 46239080130 Indesit W83FR 46286740040 Ariston AB60IT Indesit W83SP Ariston AB60IT 46269710000 Indesit W83SP 46233170000 Ariston AB60IT 46269710030 Indesit W83SP 46233170001 Ariston AB63EX5060HZ Indesit W83SP 46233170030 Ariston AB63EX5060HZ 46239090000 Indesit W83TAUS Ariston AB63EX5060HZ 46239090030 Indesit W83TAUS 46258860000 Ariston AB63IT Indesit W83TAUS 46258860030 Ariston AB63IT 46224550030 Indesit W83TEX Ariston AB63SP Indesit W83TEX 46233100100 Ariston AB63SP 46239000000 Indesit W83TEX 46233100201 Ariston AB63SP 46239000100 Indesit W83TEX 46233100301 Ariston AB63SP 46239000130 Indesit W83TEX 46233100401 Ariston AB64PT Indesit W83TEX 46233100430 Ariston AB64PT 46224860030 Indesit W83TK Ariston AB66FR Indesit W83TK 46233200100 Ariston AB66FR 46224900030 Indesit W83TK 46233200101 Ariston AB66IT Indesit W83TK 46233200130 Ariston AB66IT 46281190000 Indesit W83TTK Ariston AB66IT 46281190030 Indesit W83TTK 46233210100 Ariston AB84IT Indesit W83TTK 46233210101 Ariston AB84IT 46279140000 Indesit W83TTK 46233210130 Ariston AB84IT 46279140030 Indesit W84TTK Ariston AB84PT Indesit W84TTK 46283830000 Ariston AB84PT 46224840030 Indesit W84TTK 46283830030 Ariston AB95AUS Indesit W85FR Ariston AB95AUS 46238790000 Indesit W85FR 46276990000 Ariston AB95AUS 46238790001 Indesit W85FR 46276990040 Ariston AB95AUS 46238790030 Indesit W93TEX Ariston AB95EU Indesit W93TEX 46233080100 Ariston AB95EU 46237810130 Indesit W93TEX 46233080200 Ariston AL102PFR Indesit W93TEX 46233080201 Ariston AL102PFR 46272990000 Indesit W93TEX 46233080301 Ariston AL102PFR 46272990040 Indesit W93TEX 46233080501 Ariston AL109EU Indesit W93TEX 46233080530 Ariston AL109EU 46288770000 Indesit W93UK Ariston AL109EU 46288770030 Indesit W93UK 46233300140 Ariston AL109K60HZ Indesit W9521E Ariston AL109K60HZ 46239100100 Indesit W9521E 46253790101 Ariston AL109K60HZ 46239100101 Indesit W9521E 46253790130 Ariston AL109K60HZ 46239100130 Indesit WA105UK Ariston AL65PT Indesit WA105UK 46280160000 Ariston AL65PT 46270930000 Indesit WA105UK 46280160040 Ariston AL65PT 46270930030 Indesit WA10IT Ariston AL88EU Indesit WA10IT 46268800000 Ariston AL88EU 46288760000 Indesit WA10IT 46268800030 Ariston AL88EU 46288760030 Indesit WA10PT Ariston AR6F105EXM Indesit WA10PT 46276410000 Ariston AR6F105EXM 85894920140 Indesit WA10PT 46276410030 Ariston AR6F105GCC Indesit WA6IT Ariston AR6F105GCC 85894930140 Indesit WA6IT 46268780000 Ariston AR6F105GCC 85894930197 Indesit WA6IT 46268780030 Ariston AR6L105EXM Indesit WA6PT Ariston AR6L105EXM 85894910140 Indesit WA6PT 46276390000 Ariston AR6L105EXM 85894910197 Indesit WA6PT 46276390030 Ariston AR6L85EX115/60 Indesit WA8IT Ariston AR6L85EX115/60 46547740100 Indesit WA8IT 46268790000 Ariston AR6L85EXM Indesit WA8IT 46268790030 Ariston AR6L85EXM 85894900140 Indesit WA8PT Ariston AR6L85EXM 85894900197 Indesit WA8PT 46276400000 Ariston AV40AG50-60 Indesit WA8PT 46276400030 Ariston AV40AG50-60 46323030000 Indesit WAP61EX Ariston AV40AG50-60 46323030900 Indesit WAP61EX 46283820000 Ariston AV40AG50-60 46323030901 Indesit WAP61EX 46283820030 Ariston AV41AG50-60 Indesit WE10EX Ariston AV41AG50-60 46300660000 Indesit WE10EX 46276480000 Ariston AV41AG50-60 46300660900 Indesit WE10EX 46276480030 Ariston AV41EX50-60 Indesit WE10IT.1 Ariston AV41EX50-60 46300650000 Indesit WE10IT.1 46283060000 Ariston AV41EX50-60 46300650900 Indesit WE10IT.1 46283060030 Ariston AV41EX50-60 46300650901 Indesit WE8EX Ariston AV42EX50-60 Indesit WE8EX 46276470000 Ariston AV42EX50-60 46332170000 Indesit WE8EX 46276470030 Ariston AV42EX50-60 46332170900 Indesit WE8IT.1 Ariston AV42EX50-60 46332170901 Indesit WE8IT.1 46283050000 Ariston AV51AG50-60 Indesit WE8IT.1 46283050030 Ariston AV51AG50-60 46300670000 Indesit WI101EX Ariston AV51AG50-60 46300670900 Indesit WI101EX 46303550000 Ariston AV51AG50-60 46300670901 Indesit WI101EX 46303550900 Ariston AV51EO Indesit WI102CH Ariston AV51EO 46304980000 Indesit WI102CH 46325380000 Ariston AV51EO 46304980900 Indesit WI102CH 46325380900 Ariston AV51EX50-60 Indesit WI102EU Ariston AV51EX50-60 46300640000 Indesit WI102EU 46319220000 Ariston AV51EX50-60 46300640900 Indesit WI102EU 46319220900 Ariston AV51EX50-60 46300640901 Indesit WI102EX Ariston AV52EX50-60 Indesit WI102EX 46305220000 Ariston AV52EX50-60 46332180000 Indesit WI102EX 46305220900 Ariston AV52EX50-60 46332180900 Indesit WI102PL Ariston AV52EX50-60 46332180901 Indesit WI102PL 46305170000 Ariston AV61AG Indesit WI102PL 46305170900 Ariston AV61AG 46379170000 Indesit WI105EX Ariston AV61AG 46379170001 Indesit WI105EX 46305200000 Ariston AV61AUS Indesit WI105EX 46305200900 Ariston AV61AUS 46350540000 Indesit WI40IT Ariston AV61AUS 46350540001 Indesit WI40IT 46302310000 Ariston AV61EU Indesit WI40IT 46302310900 Ariston AV61EU 46298900000 Indesit WI40IT 46302310901 Ariston AV61EU 46298900900 Indesit WI42EX Ariston AV61EU 46298900901 Indesit WI42EX 46304990000 Ariston AVL61EX115/60 Indesit WI42EX 46304990900 Ariston AVL61EX115/60 46300630050 Indesit WI42EX 46304990901 Ariston AVL61EX115/60 46300630900 Indesit WI42KW Ariston AVL62EX60HZ Indesit WI42KW 46372260000 Ariston AVL62EX60HZ 46300620000 Ariston AVL62EX60HZ 46300620050
