Description

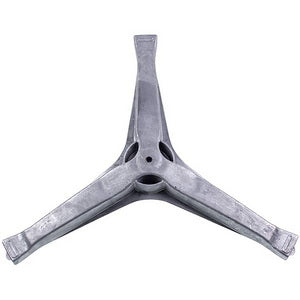

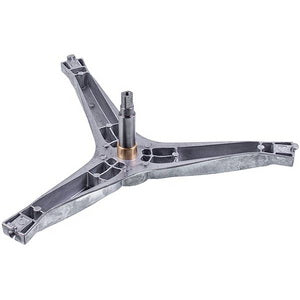

EBI drum cross for Samsung COD.740 washing machine | Manufacturer's code: COD.740
Parameters:
Shaft length, mm (±2 mm): 108
Pulley mounting: M10
Distance from the axis of the shaft to the axis of the drum attachment, mm: 244
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 30
Distance between bearings, mm (±1 mm): 55
Bearing seat diameter 1, mm (±0.3 mm): 20
Diameter of bearing 2, mm (±0.3 mm): 25
Height of the sleeve under the oil seal, mm (±1 mm): 19
Fastening to the drum: M8
Coot height, mm (±1 mm): 20
Bearings: 6204, 6205
Type of spare part: Crosspiece and support nodes
