Centrifugal Pedrollo JSWm pump reflector Ø135-164 h10-31

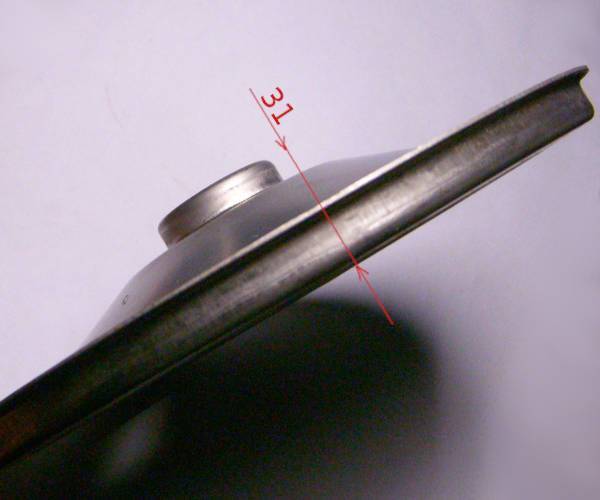

Stainless steel deep (31 mm total high) reflector, compatible with many kind of centrifugal pump: RIXO station, Pedrollo JSWm10, 15M, Ultro Pump WNDR JET 10M, Optima JET100A, JSW / 10, JET150, stationary oil seal ring place diameter is 30 mm, board height ~ 10 mm, the inner volume for impeller is 135 mm, the outer diameter of the flat track is 162 ~ 164 mm, the total height is 31 mm, the diameter of the bottom around the ring is 55 mm. Outer diameter ~172 mm
