Description

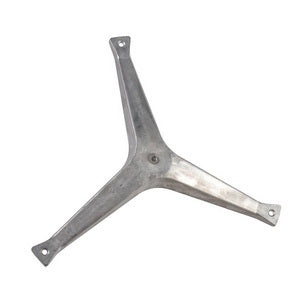

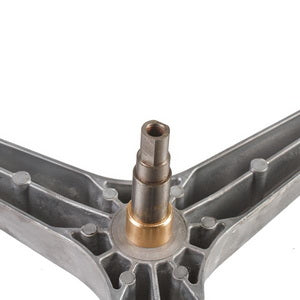

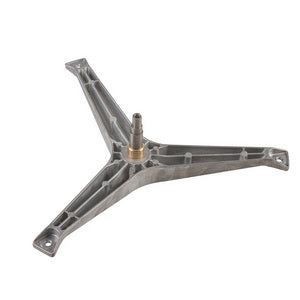

EBI drum cross for Samsung washing machine COD.732 L=80mm | Manufacturer code: COD.732
Parameters:
Shaft length, mm (±2 mm): 80
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 25
Distance between bearings, mm (±1 mm): 30
Pulley mounting: M12
Distance from the axis of the shaft to the axis of the drum attachment, mm: 220
Bearing seat diameter 1, mm (±0.3 mm): 17
Diameter of bearing 2, mm (±0.3 mm): 20
Coot height, mm (±1 mm): 19
Attachment to the drum: 8.5 mm
Height of the sleeve under the oil seal, mm (±1 mm): 17.6
Bearings: 6203, 6204
Type of spare part: Crosspiece and support nodes
