Description

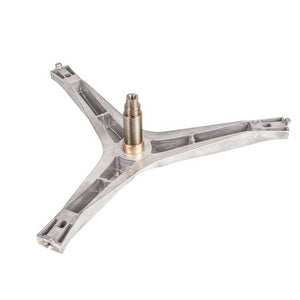

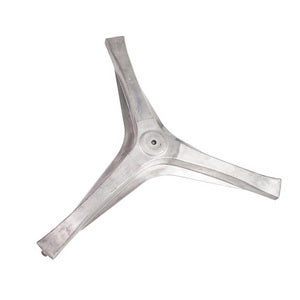

EBI drum cross for Samsung washing machine COD.769 L=100mm | Manufacturer code: COD.769
Parameters:

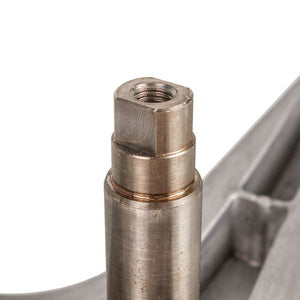

Shaft length, mm (±2 mm): 100
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 35
Pulley mounting: M12
Distance between bearings, mm (±1 mm): 54.5
Distance from the axis of the shaft to the axis of the drum attachment, mm: 253
Diameter of bearing 1, mm (±0.3 mm): 25
Diameter of bearing 2, mm (±0.3 mm): 30
Fastening to the drum: M8
The height of the sleeve under the oil seal, mm (±1 mm): 17
Coot height, mm (±1 mm): 14
Bearings: 6205, 6206
Type of spare part: Crosspiece and support nodes
