Description

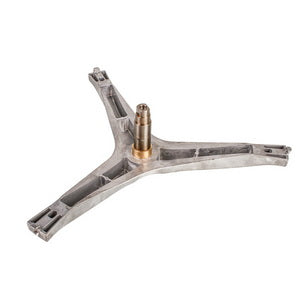

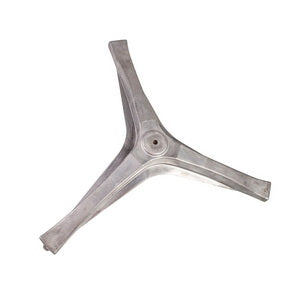

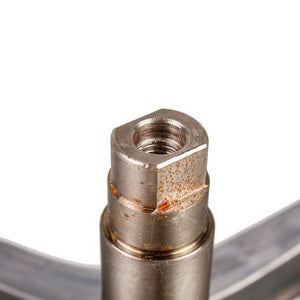

EBI drum cross for Samsung washing machine COD.771 L=98mm | Factory number: COD.771 Parameters: Shaft length, mm (±2 mm): 98 Diameter of the sleeve for the oil seal, mm (±0.3 mm): 35 Pulley mounting: M12 Distance between bearings, mm (±1 mm): 56 Distance from the axis of the shaft to the axis of the drum attachment, mm: 255 Diameter of bearing 1, mm (±0.3 mm): 25 Diameter of bearing of bearing 2, mm (±0.3 mm): 30 Height of the sleeve for the oil seal, mm (±1 mm): 15.5 Height of the cotter, mm (±1 mm): 13 Fastening to the drum: M8 Bearings: 6205, 6206 Type of spare part: Cross and supporting nodes
