Description

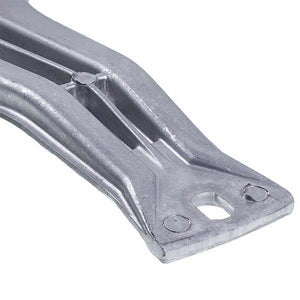

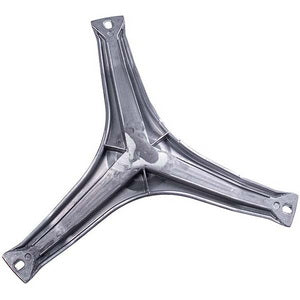

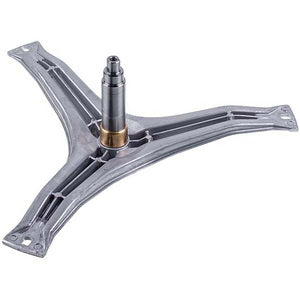

EBI drum cross for Bosch washing machine COD.777 L=125mm | Manufacturer's code: COD.777
Parameters:

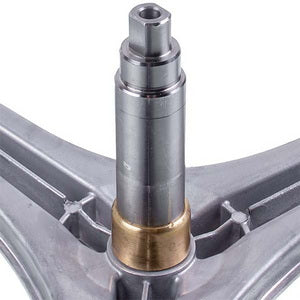

Shaft length, mm (±2 mm): 125
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 35
Distance from the axis of the shaft to the axis of the drum attachment, mm: 220
Pulley mounting: M8
Distance between bearings, mm (±1 mm): 69
Diameter of bearing 1, mm (±0.3 mm): 25
Diameter of bearing 2, mm (±0.3 mm): 30
Attachment to the drum: 10.5 mm
The height of the sleeve under the oil seal, mm (±1 mm): 24
Type of spare part: Crosspiece and support nodes
