Whirlpool AWE Direct Drive washing machine stainless steel Drum support flanges

Whirlpool AWE Direct Drive washing machine stainless steel Drum support flanges

SKU: 22755

Regular price €35,00 EUR
Regular price Sale price €35,00 EUR
Sale Sold out

Local tax may be applicable

View full details

Description

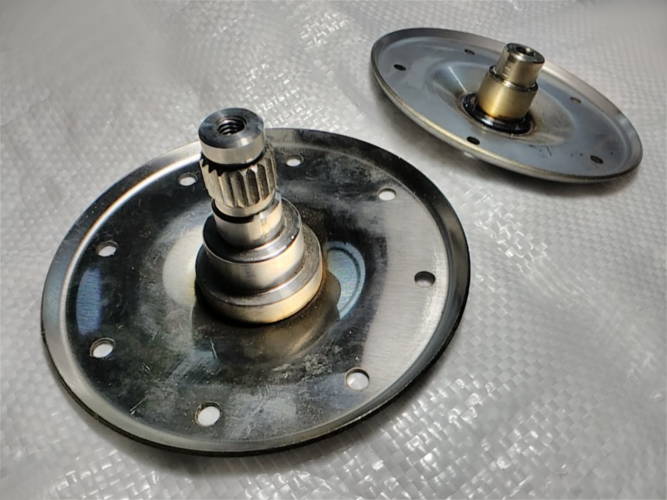

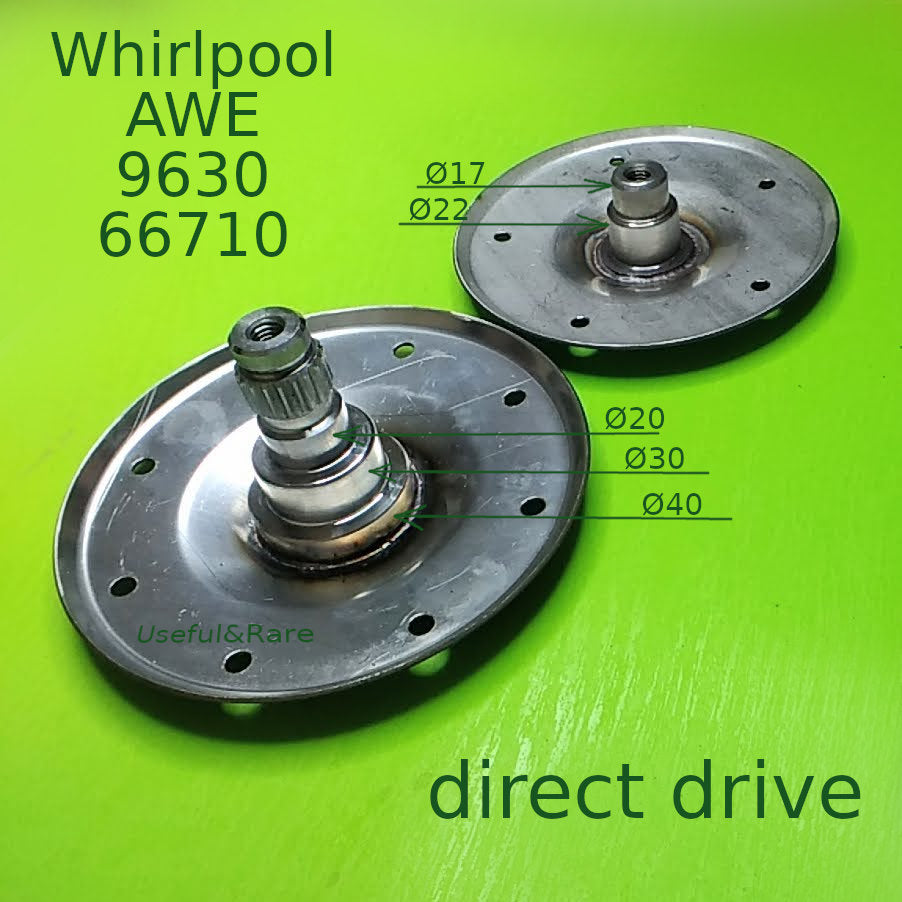

Highly durable stainless steel Drum support flanges for replacement in Whirlpool AWE 9630, 66710, TDLRB 65242BS direct drive washing machine. Smaller flange with diameter 117 mm, shaft diameter 17 mm, inside thread M8. Larger diameter 132, diameters at the end of the shaft 17, behind the spline 20 mm, internal thread M8
Summary parameters
Diameters 132/117 mm
Shaft height 47/17 mm from the flange
Shaft diameters 40/30/20 mm (larger), 22/17 mm (smaller)
Holes 8/5 mm
Slots 20 mm, 19 teeth
