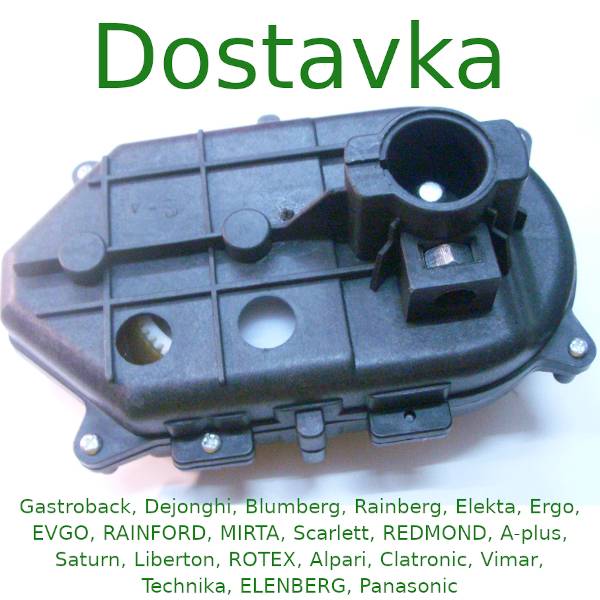

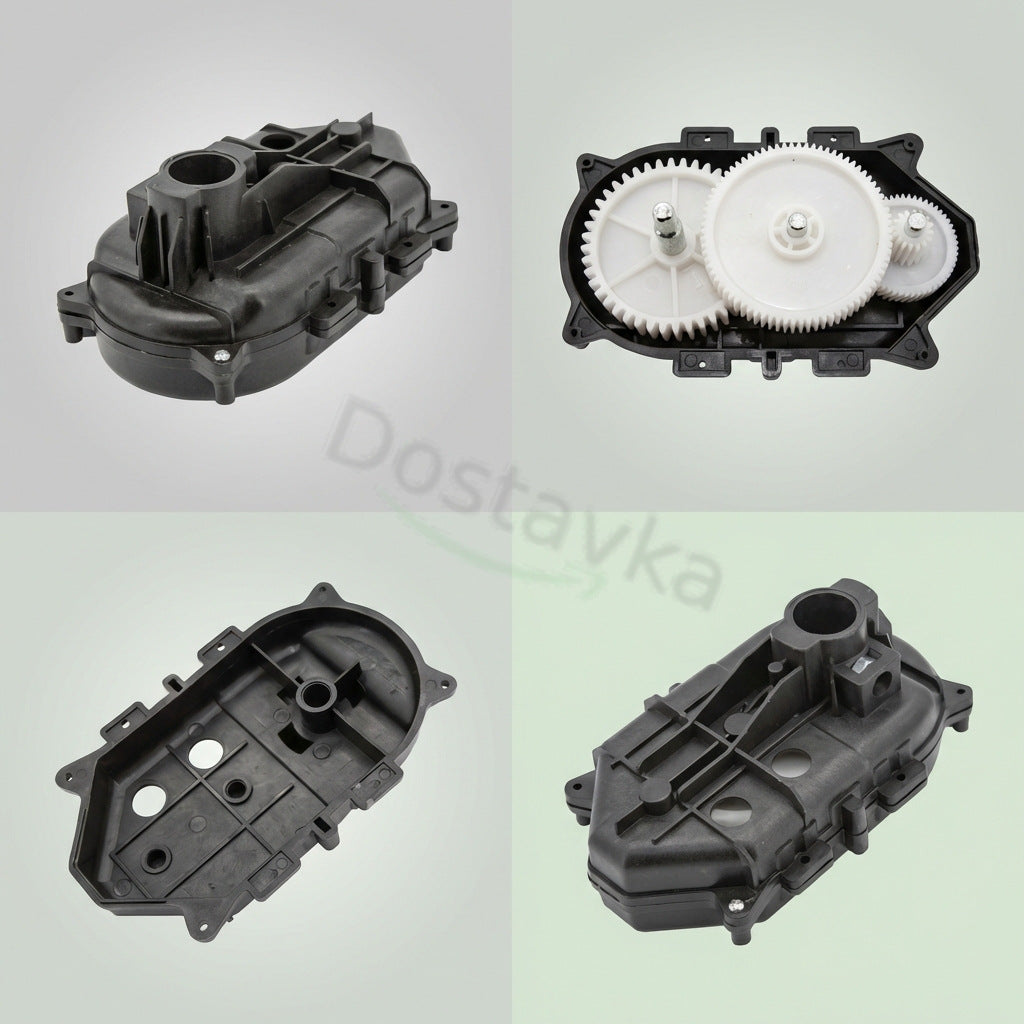

Clatronic, Elenberg meat grinder gear box

Complete gearbox kit with gears for meat grinder Rainberg RB 671, Elekta EMG-650, Ergo, EVGO EMG-1280, RAINFORD 810, RMG-811, 812, 813, MIRTA MGR 12, MGB 80, Scarlett SC-4248, SC-149, REDMOND RMG-1209, A-plus, Saturn ST-FP1094, 1095, 1096, 1098, ST 40-20-02, 41-20-02, 41-20-03m, Liberton LMG-202, LMG202T, ROTEX RMB 51, Panasonic MK-G1300P, Alpari MG801R, Clatronic 2924-1, FW 2684, 3151, Vimar VMG-1505, VMG-1507, Technika TK-2001, ELENBERG MG-2501, MG-2500, Gastroback, Dejonghi, Blumberg BM-G28, Saturn MG-2500.

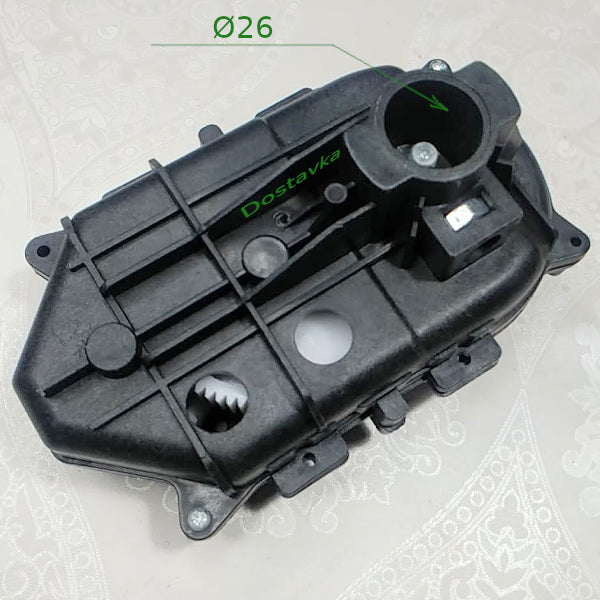

Installation dimensions

• Dimensions 178*113 mm,
• width between mounting holes 78 and 95
• length between fasteners 145 mm
• between screws in width 103 mm

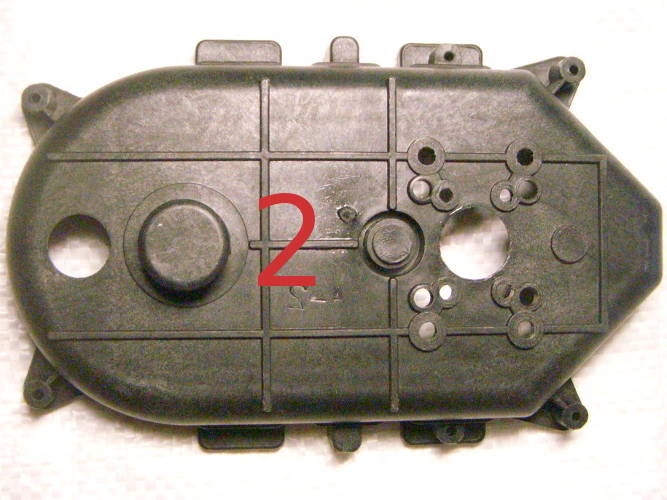

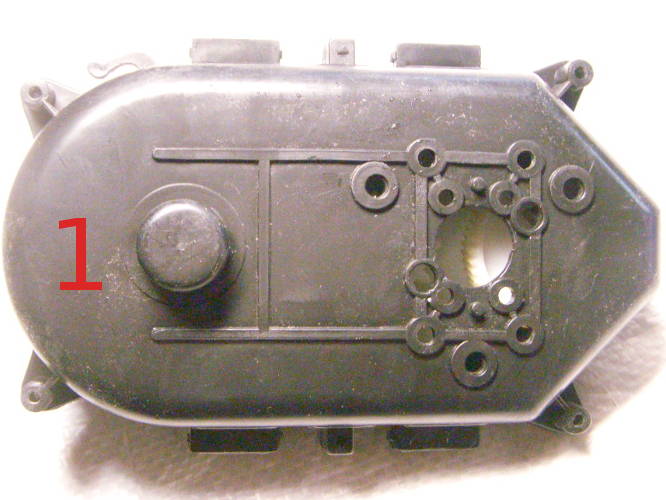

Attached to the electric motor flange with three or four screws, the screws drive the auger through the hexagon of the main shaft Gears.

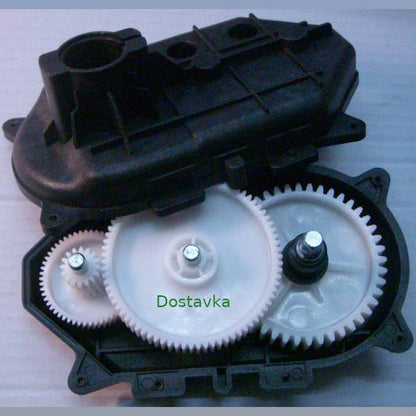

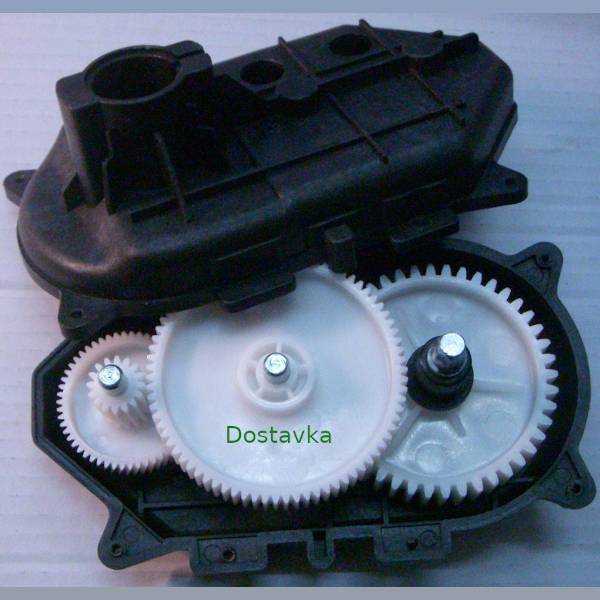

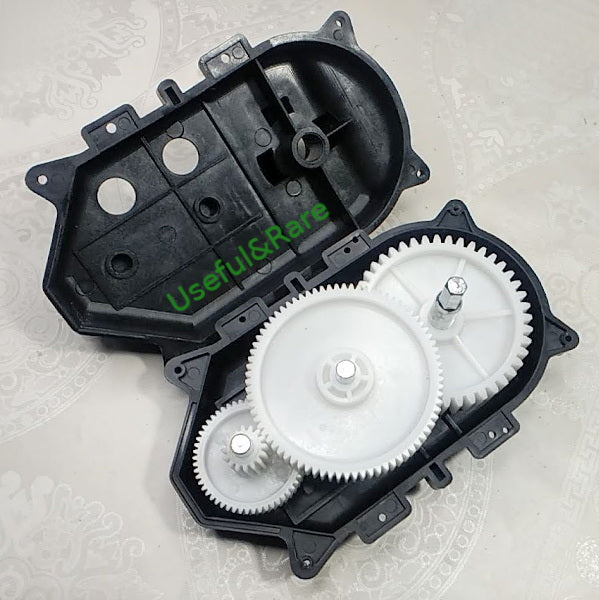

Gears included:

• D= 79 mm
  Shaft 12 mm, H= 73 mm
  Hex 8 mm
• D1= 80 mm
  D2= 32.5 mm
  D3= 8 mm
  H= 31 / 15 mm
• D1= 46.2 mm
  D2= 17.5 mm
  D3= 8 mm
  H= 35 / 12 mm
