Flange support for the JET 100 pump, Zenit, Marina, Werk, Euroaqua on legs

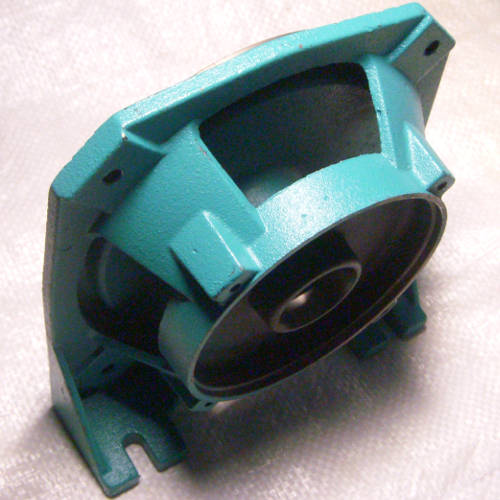

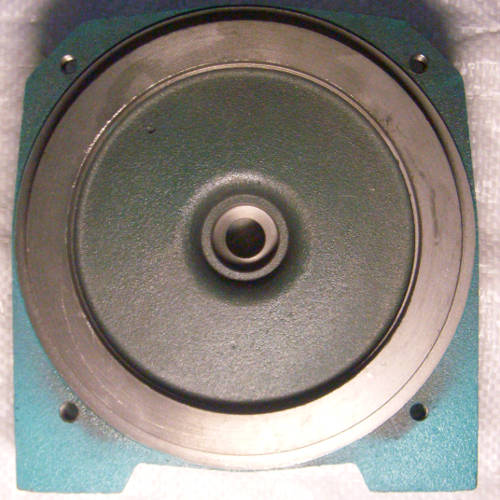

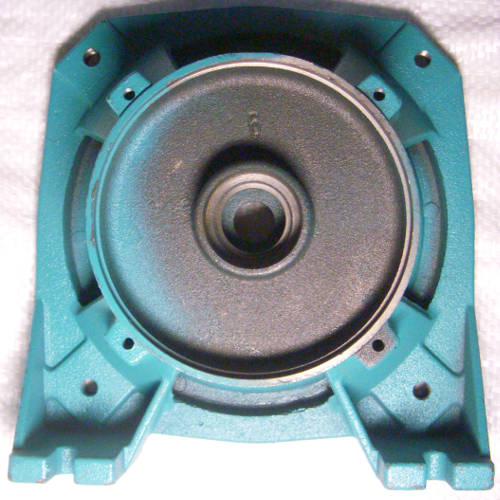

Central cast iron flange shield (support) on legs, for self-priming surface pump or water tower NOCCHI JET 1000M, Pumps + NPO series (B03/001): JET100; JET110, EUROAQUA JET 100, JET100A, Zenit, Marina CAM40, Werk XKJ-801, XKJ-1101, XKJ -1301 IA5, Euroaqua

Distance between fasteners (from the pump chamber side) diagonally ~190 (between the nearest edges of the holes ~180) mm
Between the mounts on the engine side (other side) 128 mm
Seat of stationary ring 26 mm (for end seal on 12th shaft)
Bearing seat 35mm

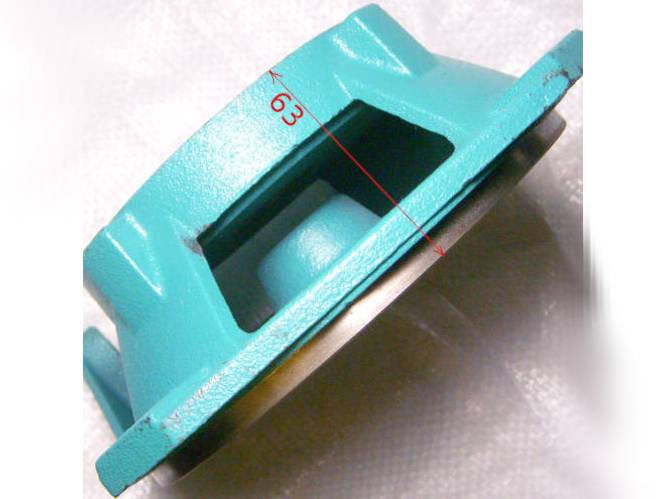

Height (thickness) 63 mm
Internal cavity for an impeller with a diameter of 130-132 mm.

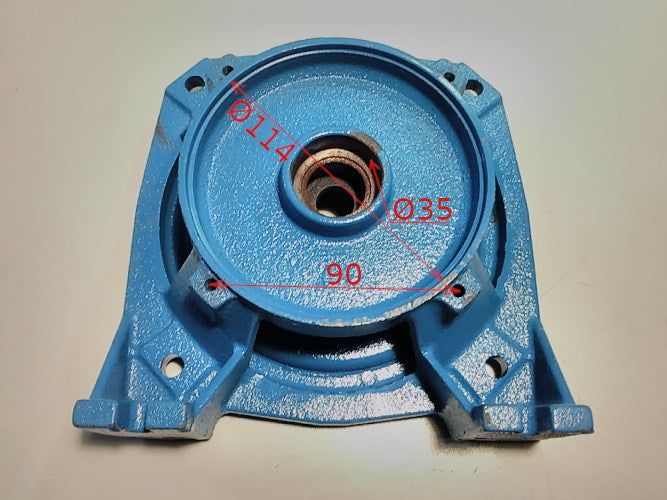

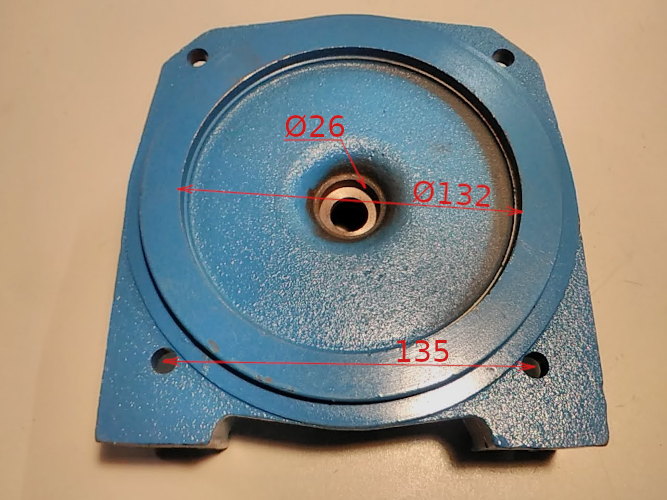

Measurements for comparison are indicated on the drawings and photographs.
