Description

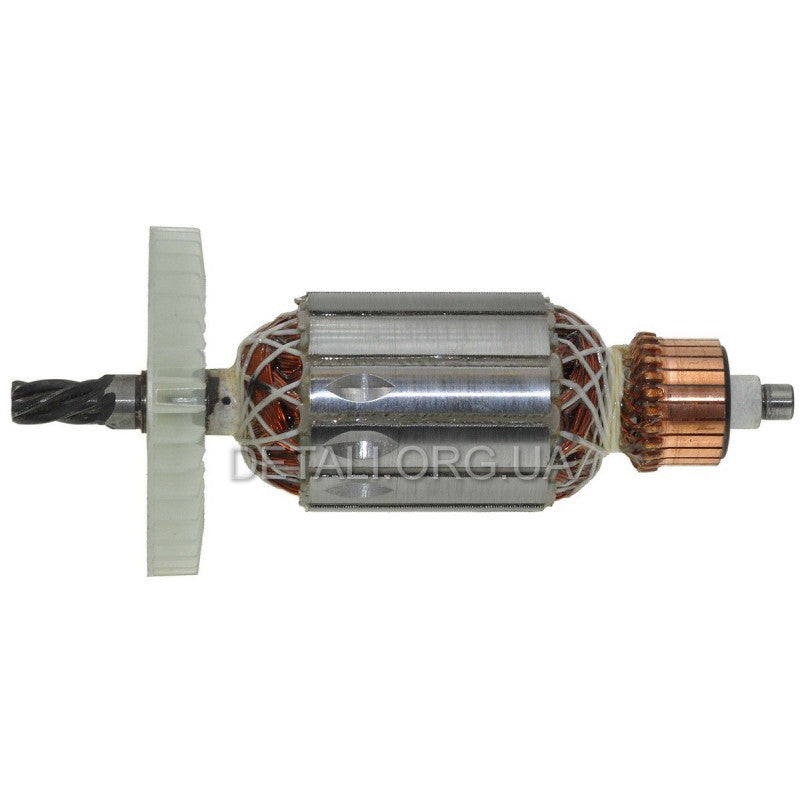

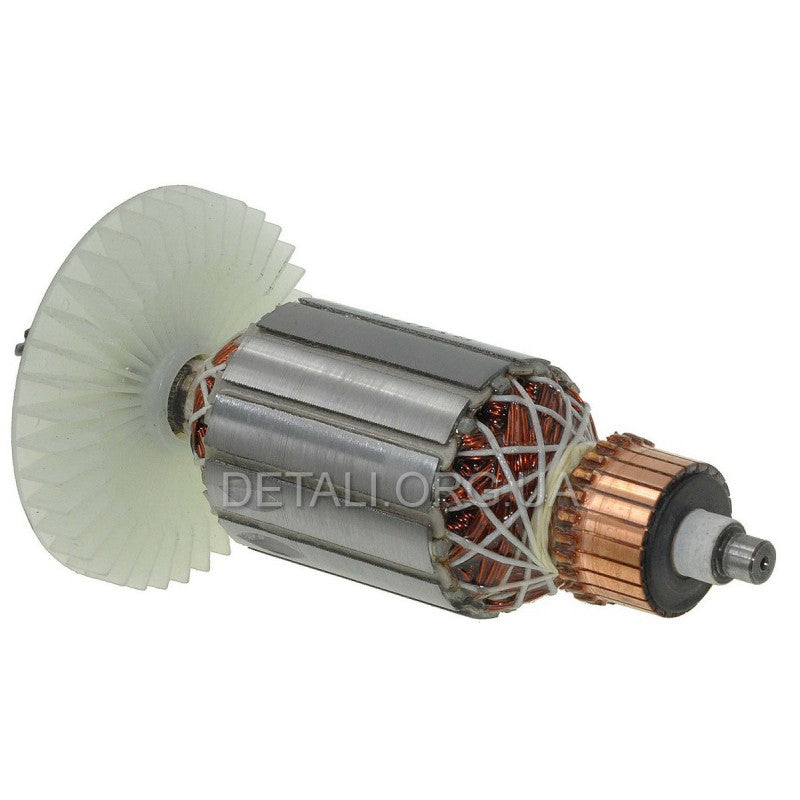

Motor armature (rotor) (170*48 5-teeth left) for barrel hammer drill Einhell 1500, Zenit ZPP-1700 Profi.

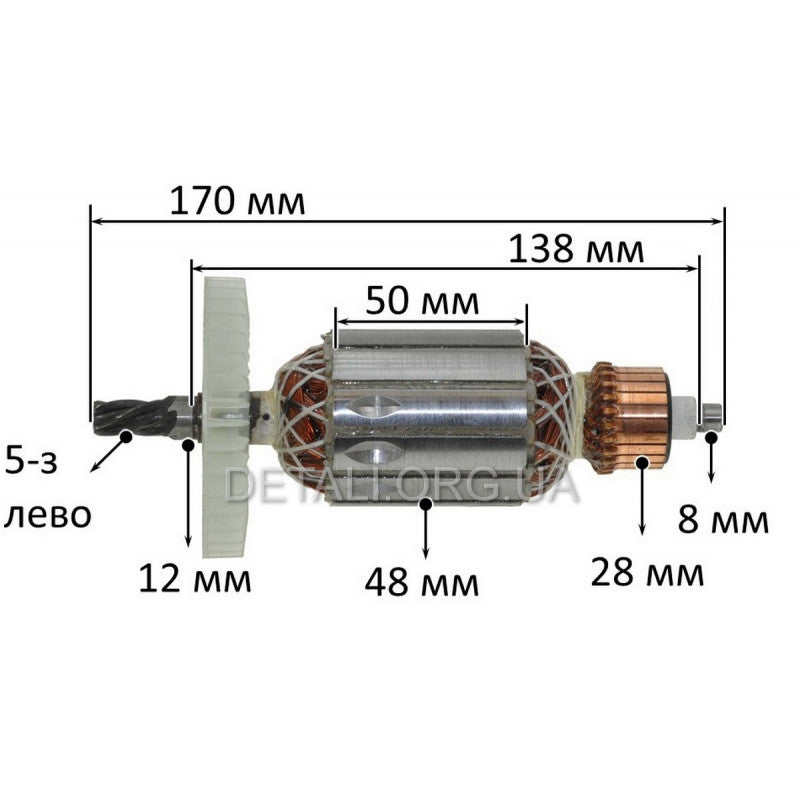

Parameters:
- Shank: 5 teeth left.
- Total length: 171 mm.
- Bag diameter: 48.1 mm.
- Winding package length: 50 mm.
- Commutator diameter: 28 mm.
- Lower (rear) bearing: 8 mm.
- Upper (front) bearing: 12 mm.
- Bearings distance: 135mm
Characteristics
| commutator diameter | 28 |
| upper (front) bearing | 12 |
| between bearings | 134 |
| shank | d10 5-teeth left |
| total length | 171 |
| winding package length |
50 |
| lower (rear) bearing | 8 |
| winding package diameter |
48.15 |
| Weight, kg | 0.746 |
| Destination | For rotary hammers |
| Vehicle model |
barrel perforator, Einhell 1500, Zenit ZPP-1700 Profi, |
| Tool type | Hammer |
