Description

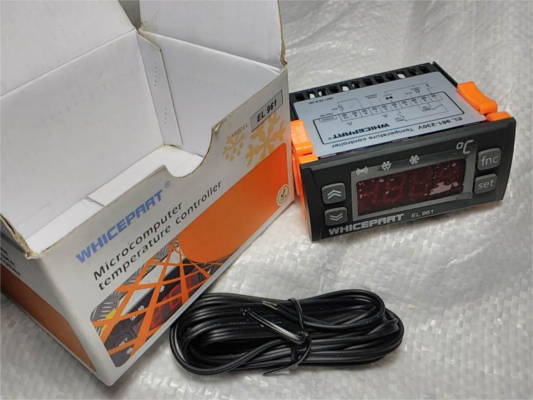

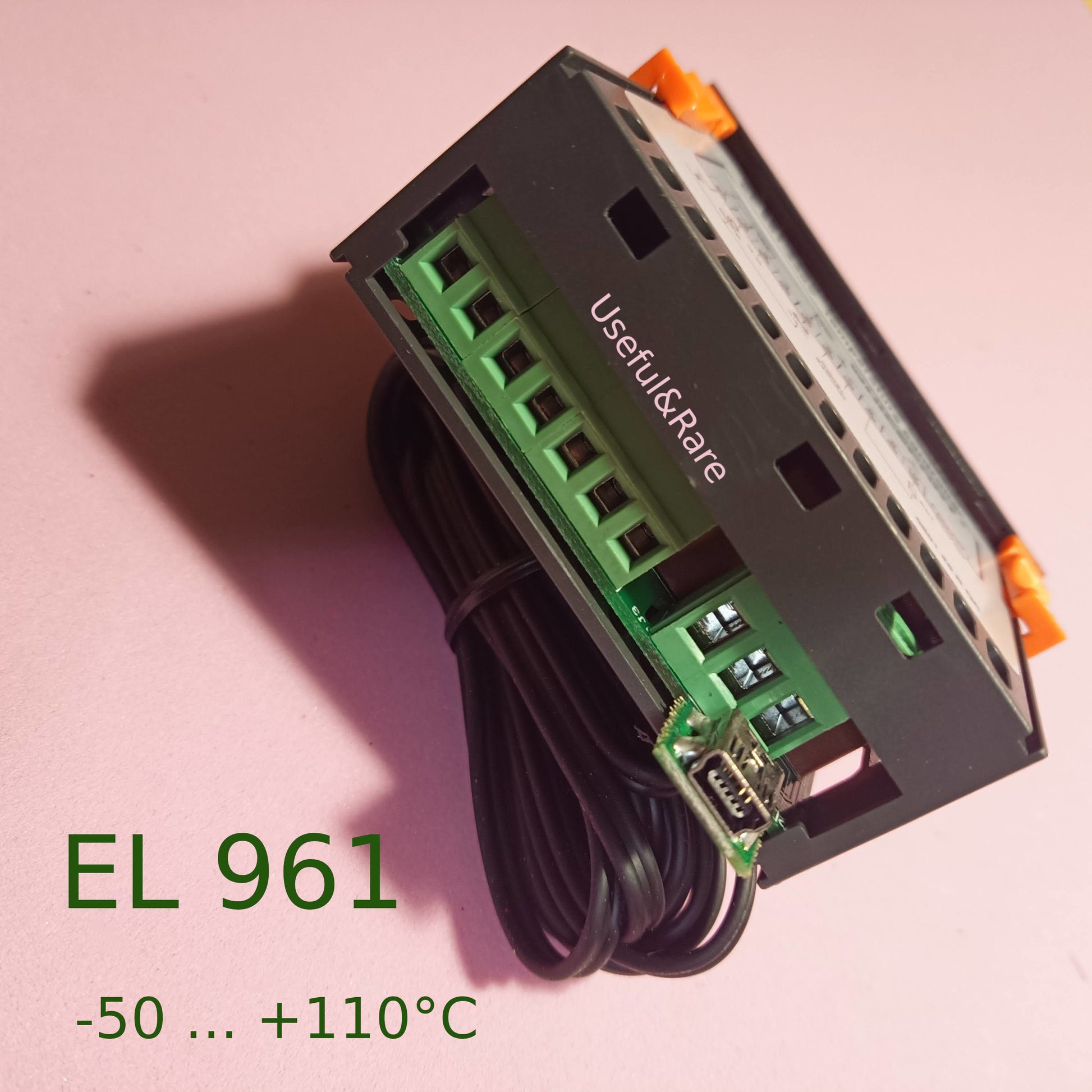

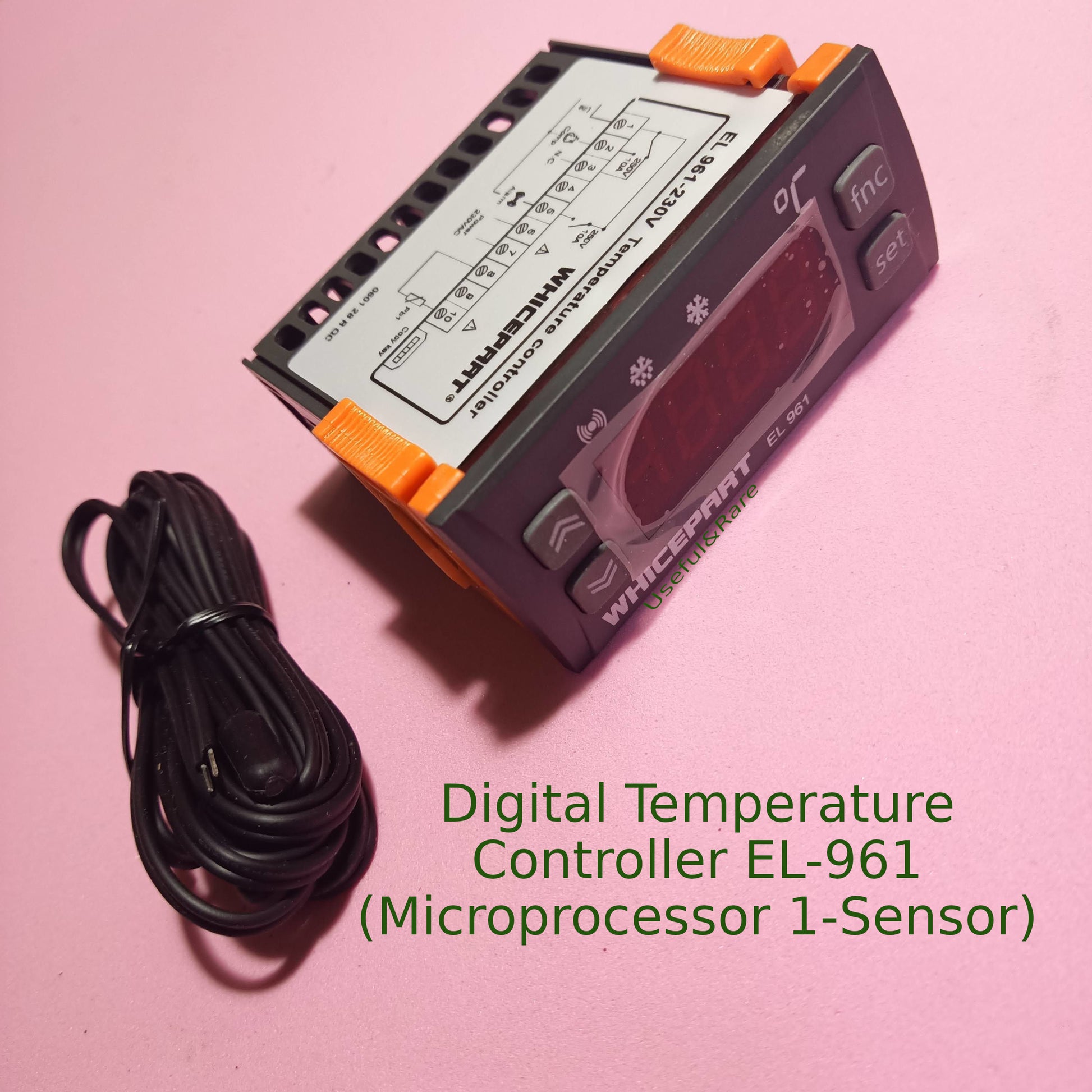

Digital programmable single-sensor temperature regulator-controller Whicepart EL 961 (replacement ELIWELL ID 961) for refrigeration units.
Designed for ventilated refrigeration systems with low/medium temperatures (-45 to +10°C), refrigeration chambers, displays, and freezer cabinets. It features an input for a temperature sensor, either RTD or NTC (selected by parameter), and also includes a TTL port for using a copying card for swift device programming. Defrost cycle duration can be determined based on programmed time intervals as well as by the sensor reaching a defined value on the evaporator. The sensor's reading is displayed on a 3-digit display (with a minus sign). Temperature adjustment within the device ranges from -50 to +110°C.
Technical Specifications:
1 Fan Relay: Max 5(2)A at 250V AC;
1 Compressor Relay: UL60730 (A) 2 HP (12FLA – 72LRA) max 240V AC;
Analog Inputs: 2 inputs for NTC (default)/PTC/PT1000 (configured by parameter H00);
Temperature Control Range: NTC: -50...110°C (-58...230F), PTC: -50...140°C (-67...284F);
Accuracy: NTC +/- 0.5°C (-30...50°C), other sensors +/- 1°C (-30..50°C), other +/- 2°C;
Digital Outputs: 1 defrost relay: normally open 8(4)A – normally closed 6(3)A max 250V AC;
Digital Inputs: 2 voltage-free inputs ("dry contacts");
Display Resolution: 1°C/0.1°C with switching between whole and decimal values;
Sensor Type: NTC (-50°C...120°C), PTC (-50°C...150°C);
Power Consumption: Up to 4.5 W;

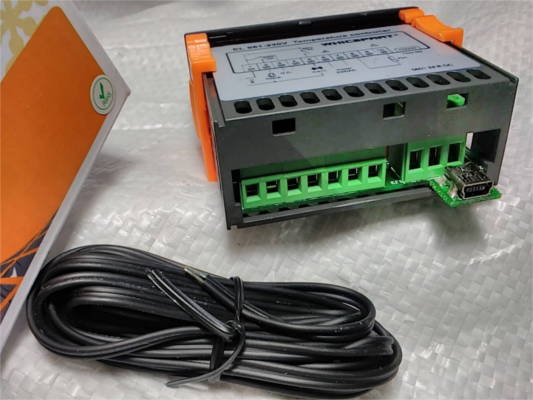

Terminals: Screw terminals for cable up to 2.5 mm²;
Enclosure: Plastic PC+ABS UL94 V-0, polycarbonate glass, thermoplastic buttons.
Operating Conditions:
Power Supply: 230V AC 50/60 Hz;
Temperature: -5°C to 55°C, humidity 10% to 90% (non-condensing);
Storage Temperature: -30°C to 85°C.
Specifications:
Dimensions: 72mm x 34mm x 59mm;Sensor Length: 2 meters.
