Description

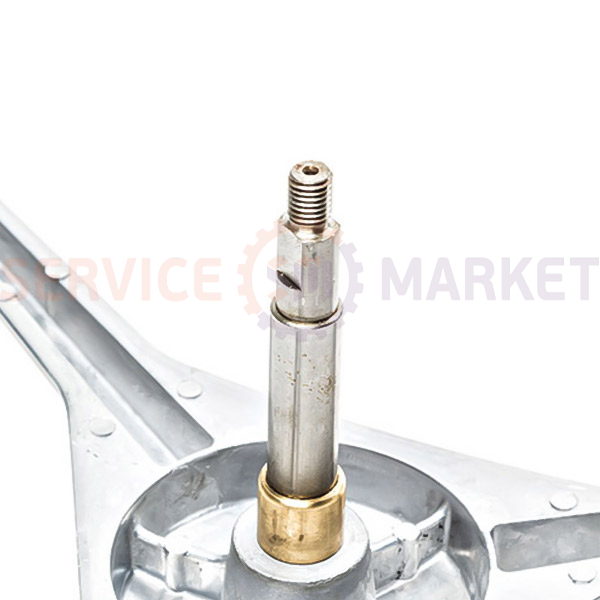

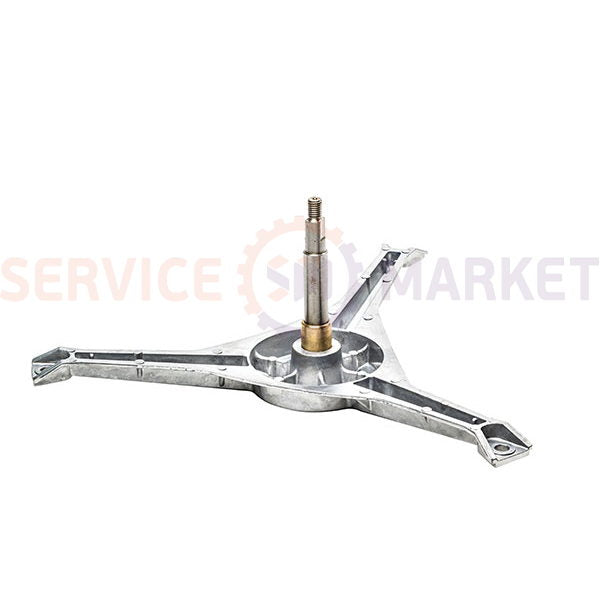

EBI drum cross for Whirlpool washing machine COD.082 L=128mm | Manufacturer's code: COD.082
Parameters:
Shaft length, mm (±2 mm): 128
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 25
Pulley mounting: M12
Distance from the axis of the shaft to the axis of the drum attachment, mm: 219
Distance between bearings, mm (±1 mm): 61
Bearing seat diameter 1, mm (±0.3 mm): 17
Diameter of bearing 2, mm (±0.3 mm): 20
Attachment to the drum: 10.5 mm
The height of the sleeve under the oil seal, mm (±1 mm): 22
Coot height, mm (±1 mm): 17
Type of spare part: Crosspiece and support nodes
