Description

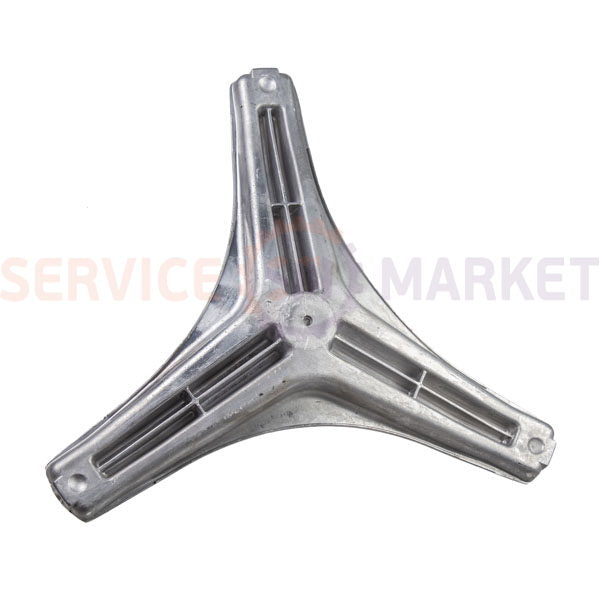

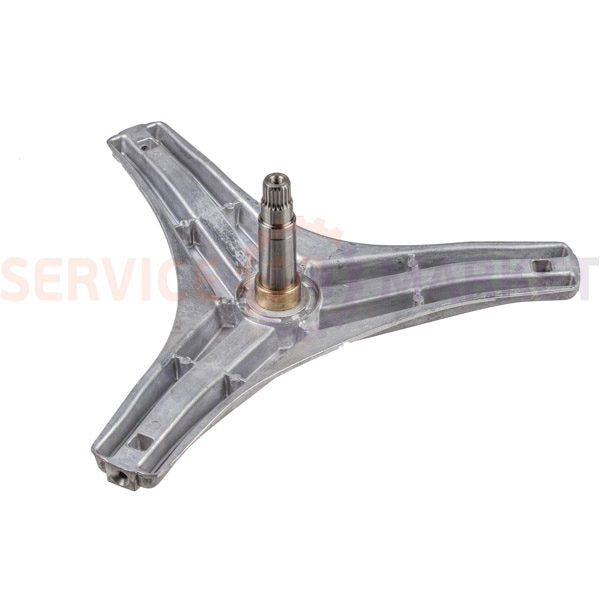

EBI drum cross for LG washing machine COD.724 L=115mm | Manufacturer's code: COD.724
Parameters:
Shaft length, mm (±2 mm): 115

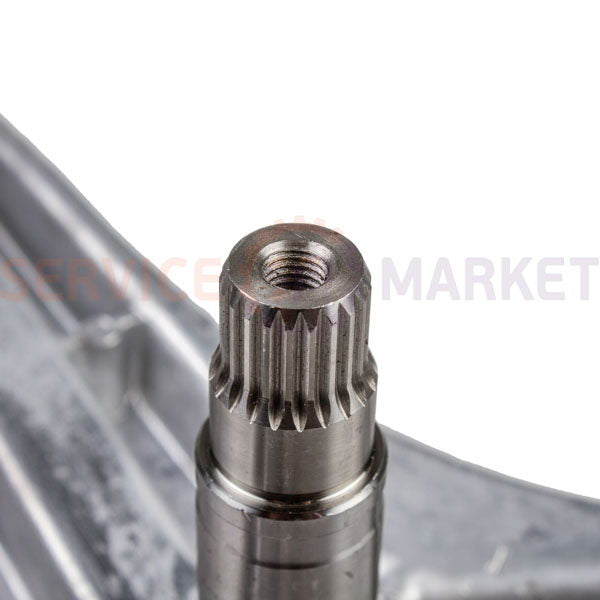

Pulley mounting: M10

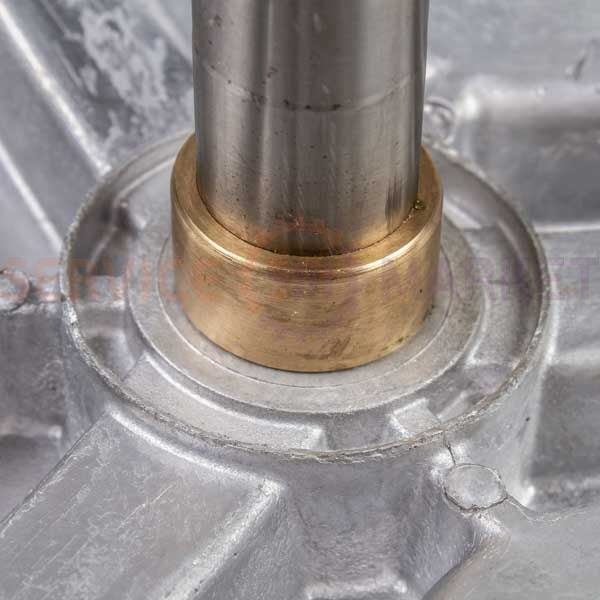

Diameter of the sleeve for the oil seal, mm (±0.3 mm): 37
Distance from the axis of the shaft to the axis of the drum attachment, mm: 241
Distance between bearings, mm (±1 mm): 63
Diameter of bearing 1, mm (±0.3 mm): 25
Diameter of bearing 2, mm (±0.3 mm): 30
Fastening to the drum: M8
Height of the sleeve under the oil seal, mm (±1 mm): 18.5
Bearings: 6205, 6206
Type of spare part: Crosspiece and support nodes
