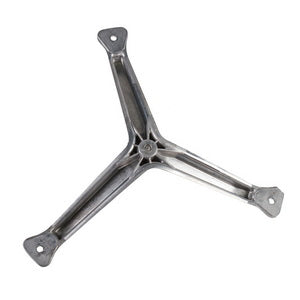

EBI drum cross for Indesit washing machine COD.055 L=85mm | Manufacturer's code: COD.055
Parameters:
Shaft length, mm (±2 mm): 85
Pulley mounting: M10
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 25
Distance between bearings, mm (±1 mm): 48
Distance from the axis of the shaft to the axis of the drum attachment, mm: 206
Bearing seat diameter 1, mm (±0.3 mm): 17
Diameter of bearing 2, mm (±0.3 mm): 20
The height of the sleeve under the oil seal, mm (±1 mm): 16
Attachment to the drum: 11 mm
Bearings: 6203, 6204
Type of spare part: Crosspiece and support nodes
