Description

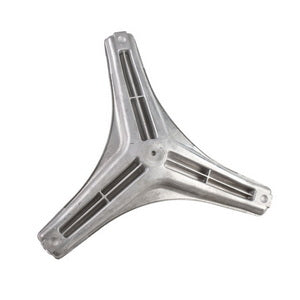

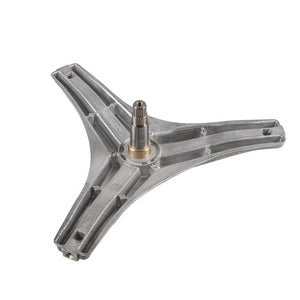

EBI drum cross for LG washing machine COD.727 L=100mm | Manufacturer's code: COD.727
Parameters:
Shaft length, mm (±2 mm): 100
Pulley mounting: M10
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 37
Distance from the axis of the shaft to the axis of the drum attachment, mm: 240.5
Distance between bearings, mm (±1 mm): 48
Diameter of bearing 2, mm (±0.3 mm): 25
The height of the sleeve for the oil seal, mm (±1 mm): 18
Bearing seat diameter 1, mm (±0.3 mm): 30
Type of spare part: Crosspiece and support nodes
