Description

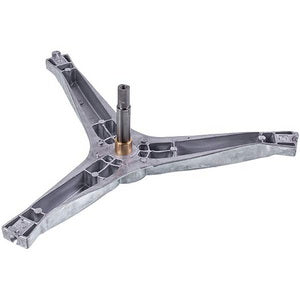

EBI drum cross for Samsung washing machine COD.741 L=107mm | Manufacturer's code: COD.741

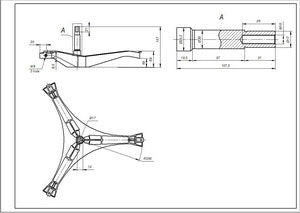

Parameters:
Shaft length, mm (±2 mm): 107
Pulley mounting: M10
Distance from the axis of the shaft to the axis of the drum attachment, mm: 249
Distance between bearings, mm (±1 mm): 57
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 25
Bearing seat diameter 1, mm (±0.3 mm): 20
Bearing seat diameter 2, mm (±0.3 mm): 17
Type of spare part: Crosspiece and support nodes
