Description

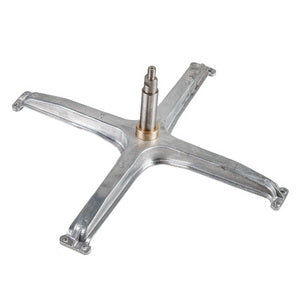

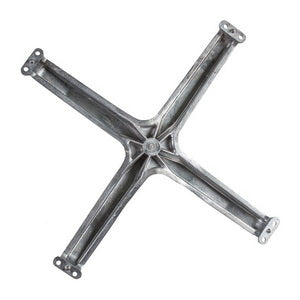

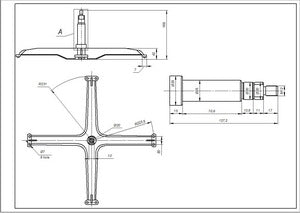

EBI drum cross for Ardo washing machine COD.024 L=127mm | Manufacturer's code: COD.024 Parameters: Length of the shaft, mm (±2 mm): 127 Diameter of the sleeve for the stuffing box, mm (±0.3 mm): 35 Distance between the bearings, mm (±1 mm): 70 Distance from the axis of the shaft to the axis of the drum attachment, mm: 224 Pulley attachment: M12 Bearing seating diameter 1, mm (±0.3 mm): 20 Seating diameter of bearing 2, mm (±0.3 mm): 25 Height of the sleeve for the oil seal, mm (±1 mm): 15 Height of the lip, mm (±1 mm): 12 Fastening to the drum: 7.2 mm Bearings: 6204, 6305 Type of spare part: Cross and support nodes
