Description

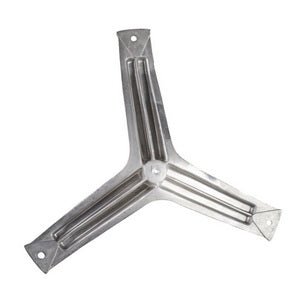

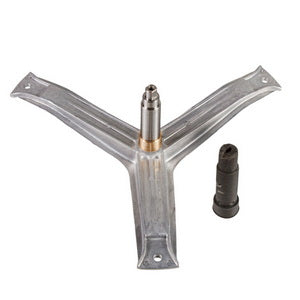

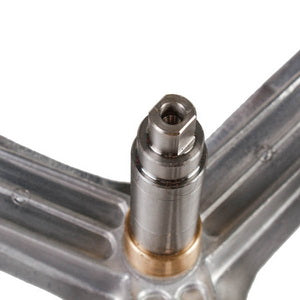

EBI drum spider for washing machine Siemens, Bosch, Constructa, NEFF L=120mm | Manufacturer's code: COD.745
Parameters:
Shaft length, mm (±2 mm): 120
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 35
Distance from the axis of the shaft to the axis of the drum attachment, mm: 220
Pulley mounting: M8
Distance between bearings, mm (±1 mm): 68
Diameter of bearing 1, mm (±0.3 mm): 25
Diameter of bearing 2, mm (±0.3 mm): 30
Attachment to the drum: 10.5 mm
The height of the sleeve for the oil seal, mm (±1 mm): 21
Bearings: 6205, 6306
Compatibility list
Bosch WAA24171GB WAE20060UC WAE20260IN WAE20262AU WAE20467BY WAE20480ME WAE22462AU WAE22463AU WAE22464AU WAE22466AU 94 WAE24037IT WAE24060EE WAE24060FF WAE24060GB WAE24060SN WAE24061EE WAE24061FF WAE24061GB WAE24061SN WAE24062EE WAE24062FF WAE24063GB WAE24070FF WAE24071FF WAE24077FF WAE24160 WAE24160AR WAE24160EE WAE24160FF WAE24161EE WAE24162FG WAE24162UK WAE24163FF WAE24163FG WAE24163SN WAE24164FF WAE24164OE WAE24164PL WAE24164SN WAE24165FF WAE24165GB WAE24165OE WAE24165PL WAE24166FF WAE24166GB WAE24166PL 92 WAE24167GB WAE24167UK WAE2416SAR WAE24170EE WAE24170FF 68 WAE24172FF 85 WAE24177UK WAE24180 WAE24190 WAE24190NL WAE24191NL WAE24194 WAE24195 WAE24196 WAE241A0NL WAE241K0NL WAE241SI WAE241Y0 WAE24240OE WAE24240PL WAE24260EE WAE24260FF WAE24260GB 38 A3 WAE24260II WAE24260IL WAE24261FF WAE24261GB WAE24261IL WAE24262GB WAE2426XFF WAE24270FF 33 WAE24271FF WAE24272AU WAE24272FF A2 A6 WAE24277EP WAE24320IT WAE24321IT WAE24343 WAE24344 WAE24345 WAE24360EE WAE24360EP WAE24361FF 52 WAE24363BY 64 70 71 72 WAE24364OE WAE24365BY 75 76 WAE24365OE WAE24366UK WAE24367EE 36 WAE24367EP WAE24367ES WAE24367GB 55 69 WAE24367UK WAE24368GB WAE24369BY WAE24370SN 47 WAE2437EPL WAE24393 56 WAE2439EPL WAE24411FF WAE24413 WAE24421GR WAE24424IT WAE24440 46 WAE24440PL WAE24441CH 82 WAE24441PL WAE24442CH WAE24443 WAE24443BY WAE24443CH WAE24447CH WAE24447OE 65 WAE24460AR WAE24460EE WAE24460GB WAE24460NL WAE24460PL WAE24460SA WAE24460SN WAE24461EE WAE24461GB WAE24462AU WAE24462EE WAE24462GB WAE24462IL WAE24463AU WAE24463BC WAE24463TR WAE24464BC WAE24464PL WAE24464TR WAE24465BY WAE24465EP WAE24465PL 81 WAE24466PL WAE24467BY WAE24467EP WAE24467ES WAE24467GC WAE24467II WAE24467IT WAE24467ME WAE24467OE WAE24468EP WAE24468ME WAE24468OE 39 95 WAE24469BY WAE24469OE 49 WAE2446KPL WAE2446SGR WAE2446SPL WAE2446SUK WAE2446TPL WAE2446XBC WAE2446XEE WAE24470EE WAE24472EP WAE24477II WAE2447FPL 40 WAE2447PEE 90 WAE2447PES WAE2447XEE WAE2447XES WAE2447XME WAE24480ME WAE24480SN WAE24485EP 91 WAE24487ES WAE24488EE 41 WAE24489EE 57 WAE2448FPL WAE2448SOE 63 WAE24490 59 WAE24490GB 61 WAE24490NL WAE24492 48 51 54 58 62 83 84 89 WAE2449FPL WAE2449KBY WAE2449XEP WAE244A1FF 42 45 WAE244B1GB 53 WAE244H1IT WAE244S0GB WAE244S0ZA WAE244S1GB WAE244S1TR 35 37 WAE244S1ZA 43 WAE24FU1CH 31 WAE24FU3CH 34 WAE28180SN WAN20040PL WAN20050IL WAN20060BY WAN20060OE WAN20067IT WAN20068IT WAN2006BPL WAN2006FPL WAN2006KPL WAN2006MPL WAN2006SPL WAN2006TPL WAN20140PL WAN20150IL WAN20160OE WAN20161BY WAN20162BY 25 WAN20167IT WAN20168IT WAN2016KPL WAN2016TPL WAN2016XPL WAN20260BY WAN20261BY WAN2026EPL WAN2026FPL WAN2026MPL WAN24000GB WAN24001GB WAN24060BY WAN24060OE WAN24067GR WAN24067IT WAN24068GR WAN24068IT WAN2406APL WAN2406EPL WAN2406FPL WAN2406GPL WAN2406SPL WAN240A7SN WAN24100GB WAN24108GB WAN24130FF WAN24140OE WAN24150IL WAN24160BY WAN24161BY WAN24167GR WAN24167IT WAN24168IT WAN2416APL WAN2416EPL WAN2416GPL WAN2416MPL WAN2416SOE WAN2416SPL WAN2417FPL WAN2417KPL WAN241A0CH WAN24200FF WAN24207GR WAN24220FF WAN24240CH WAN24240PL WAN24250IL WAN24260BY WAN24260ES WAN24260IL WAN24260OE WAN24261BY WAN24261ES WAN24262ES WAN24267GR WAN24268EP WAN24268GR WAN2426EPL WAN2426FPL WAN2426GPL WAN2426KPL WAN2426SPL WAN2426TPL WAN2426XES WAN24277IT WAN24278EP WAN2427EPL WAN2427KPL WAN2427MPL WAN2427SPL WAN2427TPL WAN24290BY WAN24290OE WAN242C7SN WFH100 WFH120 WFH2060BY WFH2060EU WFH2060FF WFH2060NL WFH2060OE WFH2060TR WFH2061OE WFH206DEE WFH208DEE WFH209AEE WFH2270NL WFH2460EU WFH2460FF WFH2460NL WFH2460OE WFH2461EU WFH2461FF WFH2461OE WFH246DEE 60 WFH2470CH WFH2470NL WFH247DEE WFL1000II WFL1000IT WFL100A WFL100GB WFL1200BY WFL1200II WFL1200PL WFL1200SG WFL1202PL WFL120A WFL120AFN WFL120GB WFL120M WFL121ANL WFL121K WFL1240II WFL1241II WFL125SN WFL1262BY WFL126SN WFL127AFN WFL128ANL WFL1300EE WFL1341II WFL1342II WFL1400II WFL1441II WFL1442II WFL1600AU WFL1600BY WFL1600EE WFL1600FF WFL1600FR WFL1600ID WFL1600PL WFL1600SG WFL1601BY WFL1602PL WFL1607PL WFL1610TR WFL1620GR WFL1620TR WFL1650CH WFL1650GR WFL1650II WFL1651II WFL165EII WFL1660AU WFL1660II WFL1662BY WFL1662ZA WFL166KGR WFL167SIE 19 WFL1680GR WFL1800AU WFL1800TR WFL1810 WFL1851II WFL1860EE WFL1860FF WFL1860FR WFL186KFF WFL186KTR 26 WFL1880AU WFL2000AU WFL2000GB WFL2000SG WFL2000SK WFL2000SN WFL2000UK WFL2020IG WFL2021GR WFL2050 WFL2050CH WFL2050DD WFL2050FG WFL2050GR WFL2050IG WFL2050II WFL2050NL WFL2050UC WFL2051GR WFL2051II WFL205SFF WFL2060 WFL2060AU WFL2060BY WFL2060EE WFL2060EU WFL2060FF WFL2060FR WFL2060GB WFL2060IL WFL2060PL WFL2060RK WFL2060RU WFL2060SK WFL2060SN WFL2060TR WFL2060UC 32 WFL2061 WFL2061BE WFL2061BY WFL2061EE WFL2061FF WFL2061FG WFL2061ZA WFL2062 WFL2062BY WFL2062EE 29 WFL2062FF WFL2062FR WFL2062GB WFL2062ME WFL2062OE WFL2062PL WFL2062ZA WFL2063EE WFL2063GB WFL2064 WFL2066GB WFL2067GB WFL206KAU WFL206KGR WFL206W WFL2070EE WFL207GNL WFL2080 WFL2080AU WFL2080EE WFL2080FG WFL2080GR WFL2080NL WFL2081GR WFL2090 WFL2200SK WFL2200SN WFL2250FG WFL2260GB WFL2260UK WFL226LGB WFL2400 28 WFL2400AU WFL2400SK WFL2400SN WFL2422NL WFL242E WFL242YNL WFL2440 WFL244F WFL244J WFL2450 WFL2450CH WFL2450DN WFL2450FF WFL2450FG WFL2450GB WFL2450GR WFL2450NL WFL2450SK WFL2450SN WFL2450UK WFL2451GR WFL2451SN WFL2455FG WFL245KNL WFL245S WFL245SGB WFL245SNL WFL2460 WFL2460BY WFL2460EE WFL2460FF WFL2460FR WFL2460NL WFL2460RU WFL2460TR WFL2461 WFL2461BY WFL2461FG WFL2461FN WFL2461NL WFL2462FF WFL2462FR WFL2462GB WFL2462NL WFL2462OE WFL2463EE WFL2463FG WFL2463GB WFL2464 WFL246K WFL246KGB WFL246KUK WFL246SGB WFL246T 11 WFL2470EX WFL2471EE 03 WFL2474EX WFL247GNL WFL247Y WFL2480 WFL2480AU WFL2480FF WFL2480NL WFL2480SN WFL2481 WFL2481DN WFL2481EE WFL248Y 27 WFL2490NL WFL249Y WFLI2060EE WFLI2440EU WFLI2440GB WFO100AFG WFO110A WFO110AFG WFO111AFG WFO115A WFO120A WFO120AFG WFO120ANL WFO120FR WFO121A WFO121ANL WFO122ANL WFO125SN WFO1261PL WFO1262PL WFO126SN WFO128ANL WFO1660BY WFO1660II WFO1661BY WFO1661PL WFO1662BY WFO1662PL WFO1663PL WFO1674GR WFO1851IT WFO1852IT WFO1860FE WFO1860FF WFO1860FR WFO1861FF WFO1872EE WFO2020TR WFO2021TR WFO2022TR WFO2040BY WFO2040OE WFO2041BY WFO2042BY WFO2042OE WFO2050AU WFO2050CH WFO2050FG WFO2050GR WFO2051BE WFO2051CH WFO2051FG WFO2051GR WFO2052EE WFO2052GR WFO2060 WFO2060AU WFO2060BY WFO2060EE WFO2060FE WFO2060FF WFO2060II WFO2060IL WFO2060IT WFO2060PL WFO2060TR WFO2061 WFO2061FF WFO2061IT WFO2061PL WFO2061TR WFO2062EE WFO2062FF WFO2062IT WFO2062ME WFO2062PL 04 WFO2062TR WFO2063EE WFO2063PL WFO2064GB WFO2067BY WFO206SIT WFO2072EE WFO2082EE WFO2092EE WFO2260GB WFO2260TR WFO2261TR WFO2262TR WFO2264GB WFO2265GB WFO226STR WFO2420 WFO2420FG WFO2420TR WFO2421TR WFO2422TR WFO242GTR WFO2430AU WFO2440 WFO2440EU WFO2440OE WFO2440PL WFO2441 WFO2441PL WFO2442 WFO2442BY WFO2442BZ WFO2442OE WFO244E WFO244S WFO2450 WFO2450CH WFO2450FG WFO2450IG WFO2450NL WFO2450SN WFO2451 WFO2451BE WFO2451CH WFO2451FG WFO2451FN WFO2451GR WFO2451NL WFO2451SN WFO2452GR WFO2452NL WFO2452SN WFO2455FG WFO2457DN WFO245OSN WFO2460AU WFO2460EE WFO2460FE WFO2460FF WFO2460FR WFO2460GB WFO2460NL WFO2460SG WFO2461FE WFO2461FF 18 WFO2461FR WFO2461NL WFO2462EE WFO2462FF WFO2462FG WFO2462FR WFO2462ME WFO2462TR WFO2463EE WFO2464EE WFO2464GB WFO2465GB WFO2466GB 07 WFO2467GB WFO246SEE 08 WFO246XEE WFO2470TR WFO2473EE WFO247PEE WFO247S 12 13 WFO2480 16 WFO2483EE 17 30 79 93 96 97 A7 WFP24FU1CH A9 WFX120SN WFX2040BY WFX2040PL WFX2050GR WFX2060FF 02 WFX2060IT WFX2063EE WFX2430FG WFX2440 WFX2440BY WFX2440BZ WFX2440OE WFX2440PL WFX2450GR 24 WFX2450SN WFX2460FF WFX2460FR WFX2460IT WFX2460TR 14 21 WFX2463EE 22 06 09 WFX2467GB WFX2468GB 23 05 WFXI2440EE 01 10 15 WFXI2440EU 20
Siemens WH53280GR WH53660EE WH54080 WH54080FG WH54080GB WH54080GR WH54080NL WH54080UK WH54090 WH54480GB WH54880 WH54880GB WH54880NL WH54880SN WH54881DN WH54890NL WM10N027IT WM10N028IT WM10N040OE WM10N050IL WM10N150IL WM11E26GBC WM12A171FF WM12E020EE WM12E060DN WM12E060ES WM12E060FF WM12E061DN WM12E120EE WM12E140NL WM12E144 WM12E144OE WM12E145 WM12E145OE WM12E160 WM12E160IN WM12E163DN WM12E164 WM12E164DN WM12E165 WM12E180 WM12E180FF WM12E190 WM12E194 WM12E195 WM12E196 WM12E1M2CH WM12E1S0 WM12E207GR WM12E220EP WM12E221EE WM12E221EP WM12E222EE WM12E226EE WM12E227EP WM12E22WEP WM12E260HK WM12E261FF 39 95 WM12E267DN 33 WM12E270FF 38 WM12E271FF A2 WM12E277EE A7 34 WM12E344 WM12E345 75 WM12E347OE WM12E360IN 26 WM12E361CH 71 WM12E361IN 76 WM12E363FF WM12E364PL 25 44 WM12E365BY WM12E367BY 52 70 WM12E369BY WM12E370EP WM12E371EP 85 WM12E37XFF WM12E392CH WM12E393 WM12E393CH 49 WM12E394CH 58 69 WM12E395CH WM12E3M1CH 36 WM12E3M2CH 56 WM12E420EE WM12E420EP WM12E420GR WM12E421GR WM12E424IT WM12E425EP WM12E427II WM12E427IT WM12E42DEE WM12E42DEP WM12E42XEE WM12E42XEP WM12E42XME WM12E43XEP WM12E440 55 WM12E444OE WM12E447OE WM12E44SGB WM12E450DN WM12E460EE WM12E460FF WM12E460NL WM12E460SA WM12E461EE WM12E461EP WM12E461FF WM12E462BY WM12E462EE WM12E463BC WM12E463EE WM12E463EP 53 57 59 63 65 WM12E463HK 94 WM12E463TR WM12E464BY WM12E464ME WM12E464PL WM12E464TR WM12E465BY 40 WM12E465EP WM12E465ME WM12E465PL 48 WM12E467EE WM12E467EP 89 WM12E467ES 96 WM12E467GC WM12E46BPL 62 WM12E46SGB WM12E46XBC WM12E470EE WM12E470EP WM12E471EP WM12E472FF 19 30 37 43 45 WM12E47APL 47 WM12E47XME WM12E480SN WM12E48APL WM12E48XFF WM12E490 WM12E491CH WM12E492CH WM12E493CH 28 32 WM12E494CH WM12E495CH 35 46 WM12E496CH 54 WM12E497CH 79 WM12E49XEP WM12E4S1TR WM12N027IT WM12N067GR WM12N068GR WM12N06BPL WM12N0A7DN WM12N140OE WM12N150IL WM12N160BY WM12N160FF WM12N160TH WM12N167GR WM12N16BPL WM12N190CH WM12N190GB WM12N200GB WM12N201GB WM12N227IT WM12N248IT WM12N250IL WM12N260BY WM12N260ES WM12N260FF WM12N260TH WM12N267GR WM12N268EP WM12N268GR WM12N26BPL WM12N278EP WM12N290CH WM12N290OE WM12N2C7DN WM12N2X8GR WM52600II WM52800BY WM52800EE WM52800PL WM52801BY WM52840II WM52841II WM53200FF WM53200FR WM53211TR WM53220GR WM53220TR WM53250CH WM53250GR WM53260II WM53260RU WM5326UGR WM53450II WM53451II WM5345AII WM53460EE WM5347AIE WM53610 WM53610HU WM53660BY WM53660FF WM53660FR WM53660PL WM53660TR WM53661BY WM54000SK WM54000SN WM54020IG WM54050 WM54050CH WM54050DD WM54050FG WM54050GR WM54050IG WM54050II WM54050IL WM54050NL WM54050SK WM54050SN WM54051II WM5405WFG WM54060 WM54060FF WM54060FR WM54060RK WM54060RU WM54060TR WM54061FF WM54062TR WM5406UGR WM5406W WM54070NL WM5407AFF WM54440SK WM54440SN WM54450 WM54460BY WM54460EE WM54460FG WM54460PL WM54461BY WM54470NL WM54800SN WM54850 WM54850CH WM54850DN WM54850FF WM54850FG WM54850GR WM54850II WM54850NL WM54850RK WM54850SK WM54850SN WM54851II WM54860 WM54860BY WM54860EE WM54860FF WM54860FR WM54860IN WM54860RU WM54860SK WM54860SN WM54860TR WM5486U WM5486UNL WM5486WNL WM54870NL WM5487AEU WM5487AGB WM55251SK WM55251SN WXB100 WXB1060TR WXB120 WXB2060EU WXB2060FF WXB2060NL WXB206DEE WXB2460EU WXB2460FF WXB2460NL WXB246DEE 60 WXB2470NL WXB247DEE WXB248DEE WXL1020TR WXL1021TR WXL1030FG WXL1031BE WXL1031FG WXL1050CH WXL1050GR WXL1050IL WXL1050IT WXL1050NL WXL1051CH WXL1051GR WXL1052CH WXL1052GR WXL1060 WXL1060EE WXL1060FE WXL1060FF WXL1060TR WXL1061 WXL1061FF WXL1061TR WXL1062EE WXL1062FF WXL1062FR WXL1062PL WXL1062TR WXL1063EE WXL1070EE WXL1072EE WXL1080GR WXL110A WXL111AFG WXL1122TR WXL1130FG WXL1140BY WXL1140PL WXL1141BY WXL1141PL WXL1142BY WXL1142PL WXL1160BY WXL1160TR WXL1161TR WXL1162ME WXL116UTR WXL1172EE WXL1173EE WXL1183EE WXL120A WXL120ANL WXL120GB WXL121A WXL121ANL WXL1220 WXL1220FG WXL122ANL WXL122STR WXL1230FG WXL1230NL WXL1231BE WXL1231FG WXL1240 WXL1240EU WXL1241 WXL1242 WXL1242NL WXL1250 WXL1250CH WXL1250FG WXL1250IG WXL1250II WXL1250IT WXL1250NL WXL1250SN WXL1251 WXL1251CH WXL1251FN WXL1251GR WXL1251IT WXL1251NL WXL1251SN WXL1252CH WXL1252GR WXL1252NL WXL1252SN WXL1257DN WXL125SGB WXL125SN WXL1260EE WXL1260FF WXL1260FR WXL1260HK WXL1260NL WXL1260TH WXL1260TR WXL1261FE WXL1261FF 18 WXL1261FR WXL1261NL WXL1261TR WXL1262BZ WXL1262EE WXL1262FF WXL1262FG WXL1262FR WXL1262TR WXL1263EE WXL1264EE WXL126P WXL126SN WXL1270TR WXL1273EE WXL127AGB WXL127FEE WXL1280 WXL1283EE WXL128FEE WXL1293EE 17 WXL129FEE WXL761PL WXL860EE WXL940PL WXL950II WXL951IT WXL960BY WXL960FE WXL960FF WXL960FR WXL961BY WXL961FF WXL961PL WXL962BY WXL962PL WXL972EU WXLI1060EE WXLI1240EU WXLI1240GB 05 WXLI3640EE WXLM0550TH WXLM0650MY 29 WXLM0650TH WXLM0650VN WXLM0700HK WXLM0700ID WXLM0700TH WXLM0750TH WXLM0800HK WXLM0800MY WXLM0800TH WXLM0800VN WXLM0900HK WXLM0900ID WXLM0900TH WXLM1000HK WXLM1000TH WXLM100A WXLM1060 WXLM1060FG WXLM1060ZA WXLM1061 WXLM1062FF WXLM1062FR WXLM1063 WXLM1070EX WXLM112GB WXLM1160BE WXLM1160FG WXLM1162BY WXLM1162BZ WXLM1162EE 13 WXLM1162ME WXLM1200 WXLM120A WXLM120AFN WXLM120M WXLM122ANL WXLM122GB WXLM1240FN WXLM1242NL WXLM124A WXLM124S WXLM1251SN WXLM125A WXLM125SN WXLM1260 WXLM1260BE WXLM1260FG WXLM1260GB WXLM1260IN 31 WXLM1260NL WXLM1261 03 WXLM1261FG 07 WXLM1262FF WXLM1262FR WXLM1262NL WXLM1263 WXLM126F 04 WXLM127F 27 WXLM127S 12 08 WXLM128S 16 WXLM962BY WXLM962PL 11 WXLP100AOE WXLP1050GR WXLP1050IT 02 WXLP1060FF WXLP1063EE WXLP120AOE WXLP120SN WXLP1230FG WXLP1232NL WXLP1240 WXLP1242PL 24 WXLP1250GR 09 WXLP1250IT WXLP1260FF WXLP1260FR 23 06 WXLP1263EE WXLP1264EE 21 WXLP126XEE 22 01 10 14 15 WXLP129FEE 20
Constructa CW61281/01 Constructa CW61290/07 Constructa CW6129A/09 Constructa CW6129A/17 Constructa CWF12E260I/16 Constructa CWF12E261I/03 Constructa CWF12E261I/16 Constructa CWF12E261I/19 Constructa CWF12N05IL/01 Constructa CWF12N05IL/05 Constructa CWF12N05IL/14 Constructa CWF12N15IL/01 Constructa CWF12N15IL/05
NEFF W5320X0EU/01 NEFF W5320X0EU/05 NEFF W5320X0EU/10 NEFF W5320X0EU/14 NEFF W5320X0GB/01 NEFF W5320X0GB/05 NEFF W5320X0GB/10 NEFF W5320X0GB/14 NEFF W7320F2EU/02 NEFF W7320F2EU/22
