Description

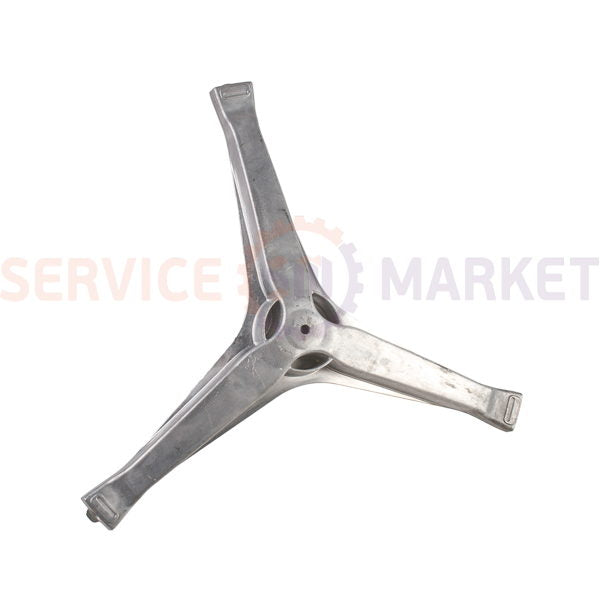

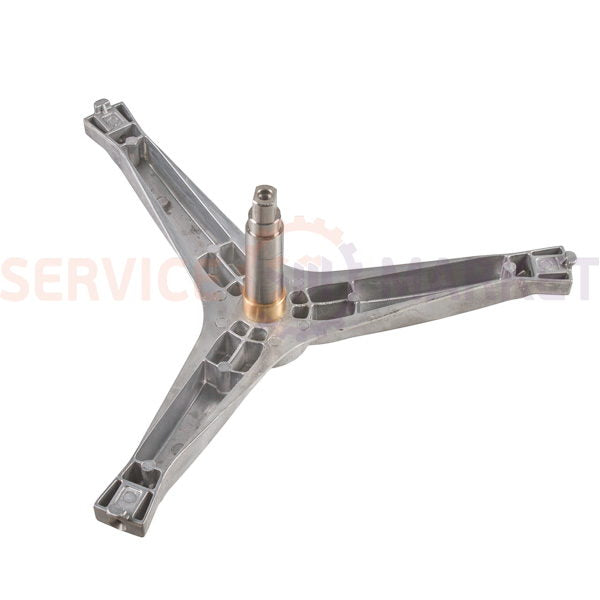

Drum crosspiece EBI for Samsung washing machine COD.756 L=125mm | Factory number: COD.756
Spare part type: Crosspiece and support units
Height of the gland bushing, mm (±1 mm): 19.5
Blade height, mm (±1 mm): 19.5
Diameter of the gland bushing, mm (±0.3 mm): 35
Bearing seating diameter 1, mm (±0.3 mm): 25
Bearing seating diameter 2, mm (±0.3 mm): 30
Shaft length, mm (±2 mm): 125
Drum attachment: M8
Pulley mounting: M10
Distance between bearings, mm (±1 mm): 73
Distance from the shaft axis to the drum mounting axis, mm: 249
