Description

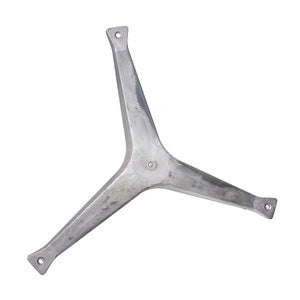

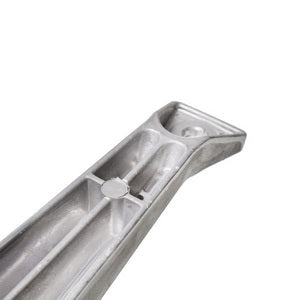

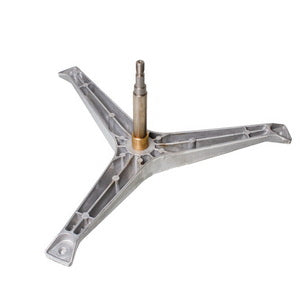

EBI drum cross for Samsung washing machine COD.733 L=147mm | Manufacturer's code: COD.733
Parameters:
Shaft length, mm (±2 mm): 147
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 25
Distance between bearings, mm (±1 mm): 76

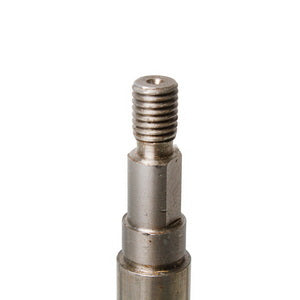

Pulley mounting: M12
Distance from the axis of the shaft to the axis of the drum attachment, mm: 218
Bearing seat diameter 1, mm (±0.3 mm): 17
Diameter of bearing 2, mm (±0.3 mm): 20
The height of the sleeve under the oil seal, mm (±1 mm): 20
Coot height, mm (±1 mm): 18
Attachment to the drum: 8.5 mm
Type of spare part: Crosspiece and support nodes
