Description

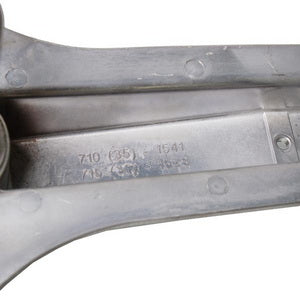

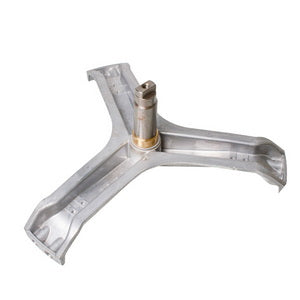

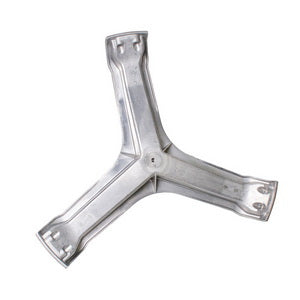

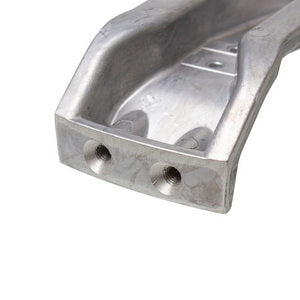

EBI drum cross for Electrolux washing machine COD.710 L=110mm | Manufacturer's code: COD.710
Parameters:
Shaft length, mm (±2 mm): 110
Pulley mounting: M10
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 40
Distance between bearings, mm (±1 mm): 65
Distance from the axis of the shaft to the axis of the drum attachment, mm: 226
Fastening to the drum: M8
Bearing seat diameter 1, mm (±0.3 mm): 30
The height of the sleeve under the oil seal, mm (±1 mm): 16
Coot height, mm (±1 mm): 11
Diameter of bearing 2, mm (±0.3 mm): 35
Bearings: 6206, 6207
Type of spare part: Crosspiece and support nodes
