Description

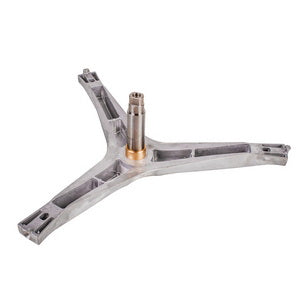

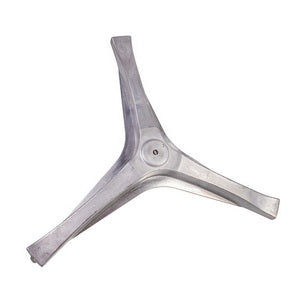

EBI drum cross for Samsung washing machine COD.770 L=118mm | Manufacturer's code: COD.770
Parameters:
Shaft length, mm (±2 mm): 118
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 35
Pulley mounting: M12
Distance between bearings, mm (±1 mm): 73
Distance from the axis of the shaft to the axis of the drum attachment, mm: 254
Diameter of bearing 1, mm (±0.3 mm): 25
Diameter of bearing 2, mm (±0.3 mm): 30
Fastening to the drum: M8
The height of the sleeve under the oil seal, mm (±1 mm): 17
Coot height, mm (±1 mm): 14.5
Bearings: 6205, 6206
Type of spare part: Crosspiece and support nodes
