Description

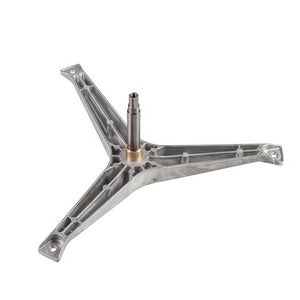

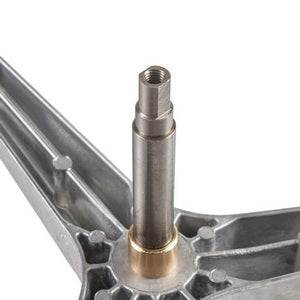

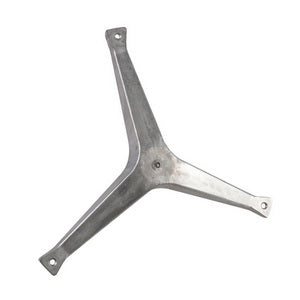

EBI drum cross for Samsung washing machine COD.734 L=126mm | Manufacturer's code: COD.734

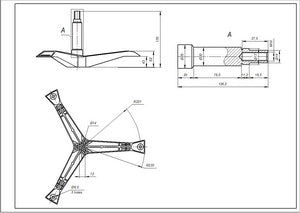

Parameters:
Product type: Spare part
Shaft length, mm (±2 mm): 126
Pulley mounting: M10
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 25
Distance from the axis of the shaft to the axis of the drum attachment, mm: 222
Distance between bearings, mm (±1 mm): 76
Bearing seat diameter 1, mm (±0.3 mm): 17
Diameter of bearing 2, mm (±0.3 mm): 20
The height of the sleeve under the oil seal, mm (±1 mm): 20
Coot height, mm (±1 mm): 18
Attachment to the drum: 8.5 mm
Bearings: 6203, 6204
Type of spare part: Crosspiece and support nodes
