Description

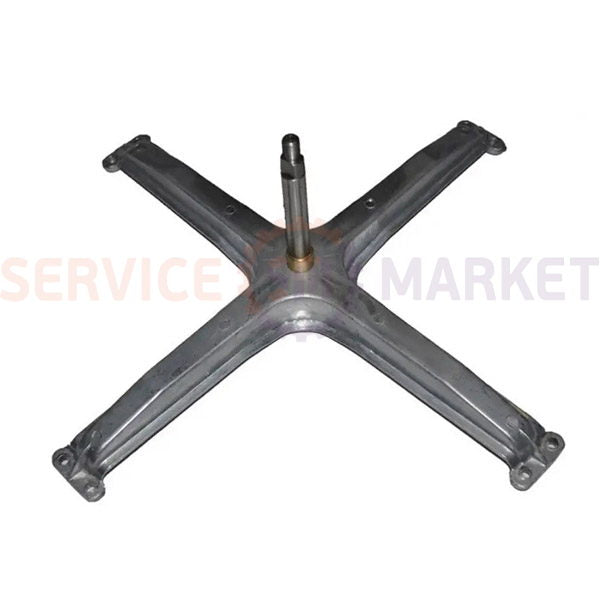

EBI drum cross for Ardo washing machine COD.023 L=127mm | Manufacturer's code: COD.023
Parameters:
Shaft length, mm (±2 mm): 127
Pulley mounting: M12
Distance from the axis of the shaft to the axis of the drum attachment, mm: 230
Diameter of the sleeve for the oil seal, mm (±0.3 mm): 21
Bearing seat diameter 1, mm (±0.3 mm): 17
Coot height, mm (±1 mm): 14.5
Bearing seat diameter 2, mm (±0.3 mm): 17
Height of the sleeve under the oil seal, mm (±1 mm): 14.5
Attachment to the drum: 7.5 mm
Bearings: 6203
Type of spare part: Crosspiece and support nodes
