Description

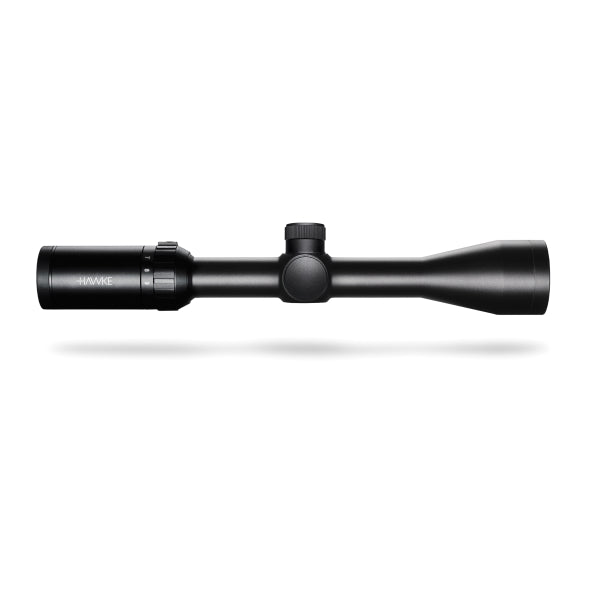

The new Vantage series of optical sights embodies the best characteristics of Hawke optics: ease of use, reliable design and affordable price. Thanks to the monolithic aluminum body, these sights are now even more resistant to powerful recoil and are recommended for installation on firearms and air rifles of any caliber. Hawke Vantage optical sights with factory fixed parallax adjustment are an excellent choice for shooting at medium distances at moving targets. The waterproof, nitrogen-filled body of the sight is anodized with a durable matte coating. Thus, Hawke Vantage sights are designed for a long service life under loads even in difficult weather and operating conditions, regardless of whether they are installed on airguns or firearms. Hawke Vantage is a new quality standard in its price category.

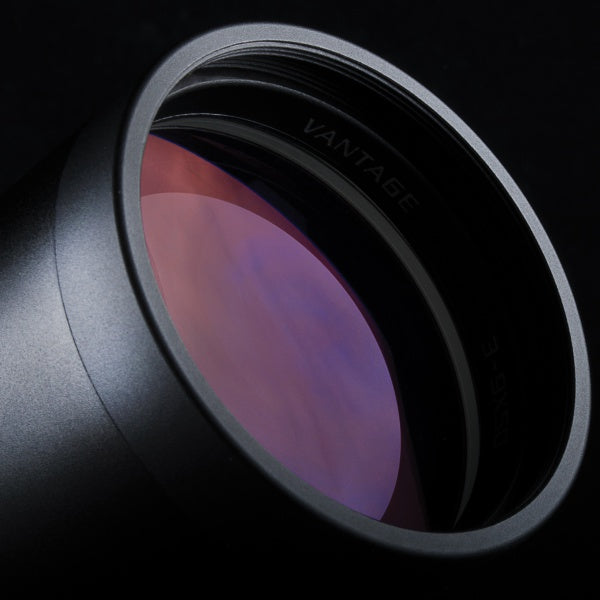

The main characteristic of any sight is the quality of optics. Hawke Vantage sights are optical devices with high quality optics. All optical surfaces (achromatic objective, eyepiece and reversing system) are covered with 11 layers of anti-reflective coating, which greatly reduces light loss during reflection and provides high resolution of the target image.

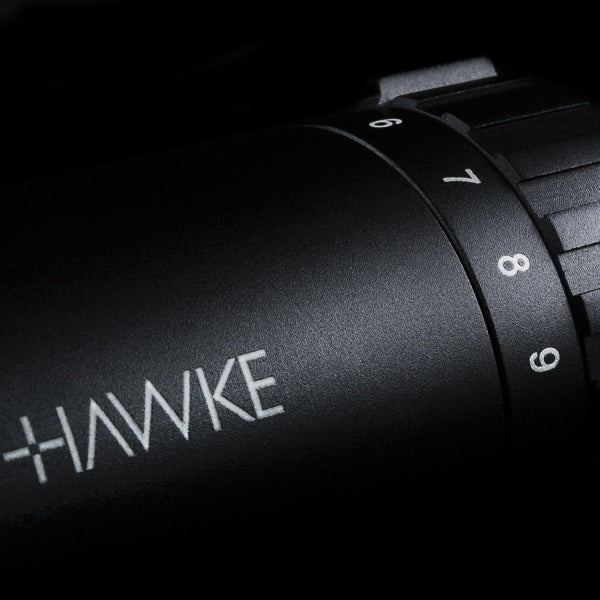

The shockproof monolithic body is made of lightweight and durable aluminum alloy. Both the outside and the inside of the body are anodized with a matte black coating that does not wear off, does not scratch, and provides excellent performance characteristics. All moving parts of the body have a profiled knurling, so adjusting the sight even in thick winter gloves will not be a problem.
The body is sealed, protected from water ingress and filled with dry nitrogen to prevent fogging of the optics from the inside due to temperature changes.

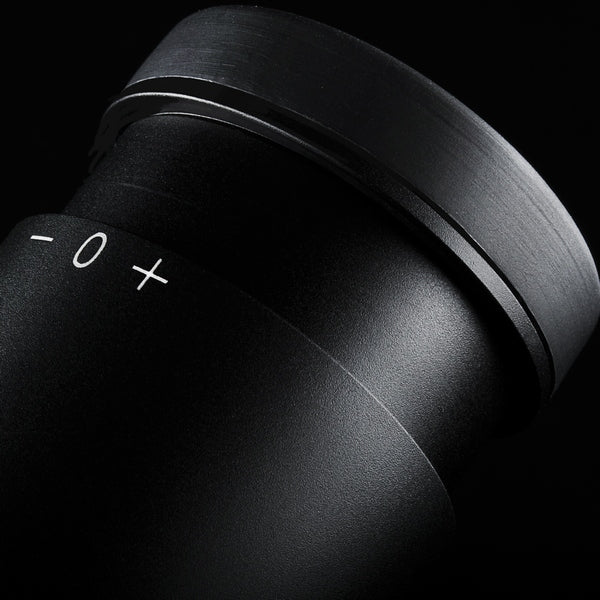

The scopes have a pre-set parallax setting of 100 yards at the factory. For quick focusing on the target, the Fast Focus focusing system is provided on the eyepiece.
Low-profile vertical and horizontal adjustment drums are equipped with a special beryllium spring, preventing the aiming grid from "drifting". The drums have a click value of 0.25 MOA. They are hidden under low aluminum covers.

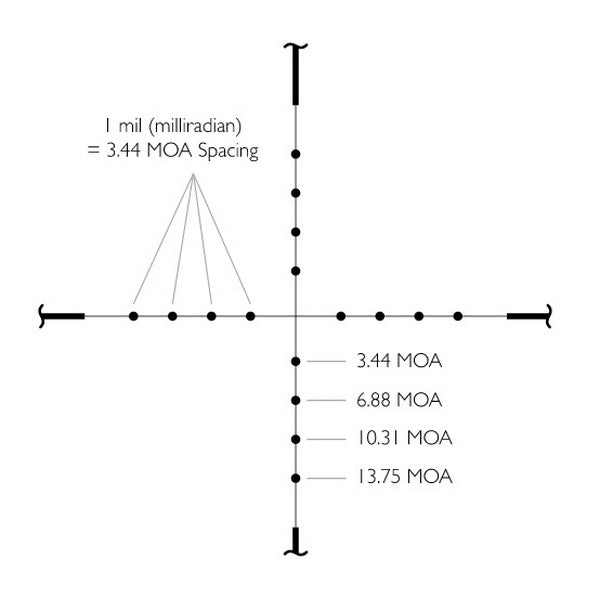

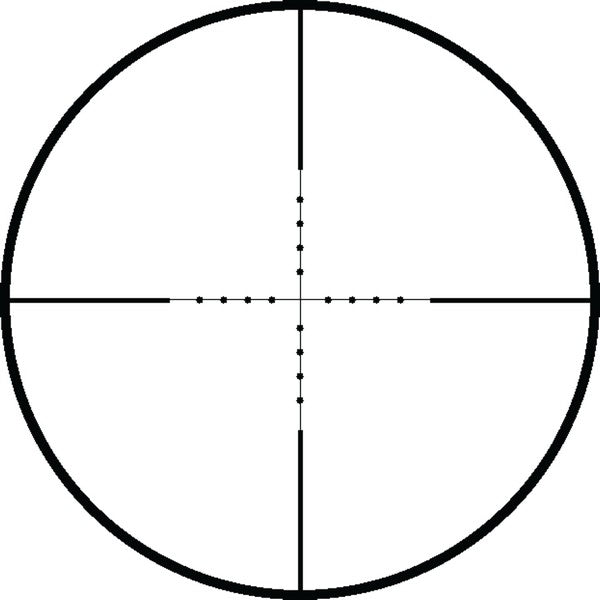

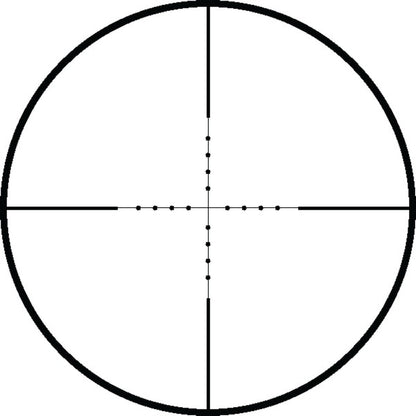

Mil Dot is one of the most universal aiming grids, all components of this grid have strictly regulated dimensions, the distances between all elements are also regulated. Thanks to this, it is not a problem to determine the distance to the target, taking the correct wind correction and determining the trajectory of the bullet's flight and fall. This Mil Dot is correct at 10x magnification. For other magnifications, the linear and angular dimensions are determined by interpolation or special tables. A free ballistic calculator will allow you to customize the grid for a specific weapon and type of projectile.
You can visually evaluate the ease of use of the aiming reticle directly on the manufacturer's website.
Optical characteristics:
- Magnification, times: 3-9x
- Objective lens diameter, mm: 40
- Exit pupil diameter, mm: 13.3-4.4
- Field of view (m/100m): 13-4.2
- Exit pupil distance, mm: 89
Design features:
- Reticle: Mil Dot
- Tube Diameter: 25.4 mm (1 inch)
- The division value of the adjustment mechanism of corrections, angle min. 1/4" (0.25 MOA) @ 100 yds
- Maximum range of corrections, MOA: 100
- Parallax adjustment: factory preset to 100 yards
- Lens coating: Fully Multi coated 11 layers
- Waterproof, shockproof, nitrogen filled construction
- Case: monolithic, made of aircraft aluminum 6061-T6
Equipment:
- Aim
- Transparent protective light filter covers for the lens and eyepiece
- Optics cleaning cloth

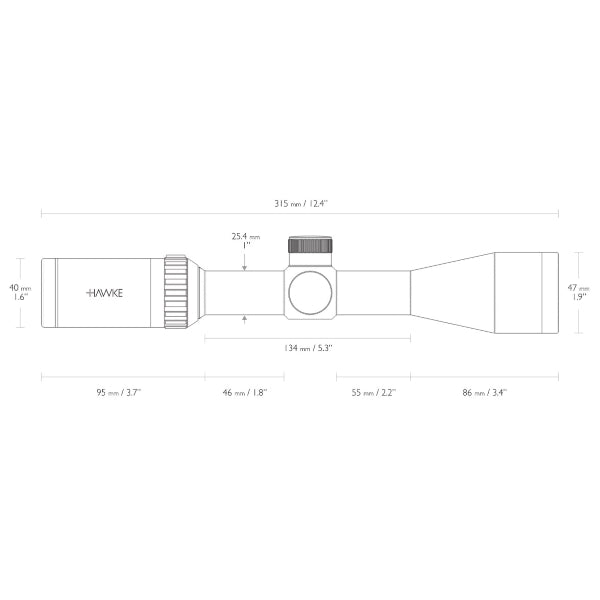

Length, mm: 315
Weight, g: 402
Manufacturer: Hawke (United Kingdom)
Warranty: 1 year
| Manufacturer code: 922122 Parameters: Warranty: 12 months Country of origin: China Country of brand registration: Great Britain Weight: 402 mm Equipment: Sight Transparent protective light filter covers for the objective and eyepiece Cloth for wiping optics Additional features: Lens coating: Fully Multi coated 11 layers Waterproof, shockproof, nitrogen filled construction Features: Case: monolithic, made of aircraft aluminum 6061-T6 Sight length: 315 mm Reticle type: Mil Dot Adjustment turrets, division value: 1/4"(0.25 MOA)@100 yds Front lens diameter: 40mm Parallax Adjustment: Fixed Parallax Illumination of the aiming mark: No Minimum multiplicity, x: 3 Maximum multiplicity, x: 9 Sight tube diameter: 25.4 mm (1 inch) Seat (ring diameter): 25.4 mm (1 inch) Mounting included: Without mounting Mounting base: Without mounting Sight type: Optical Section: Sights
