Description

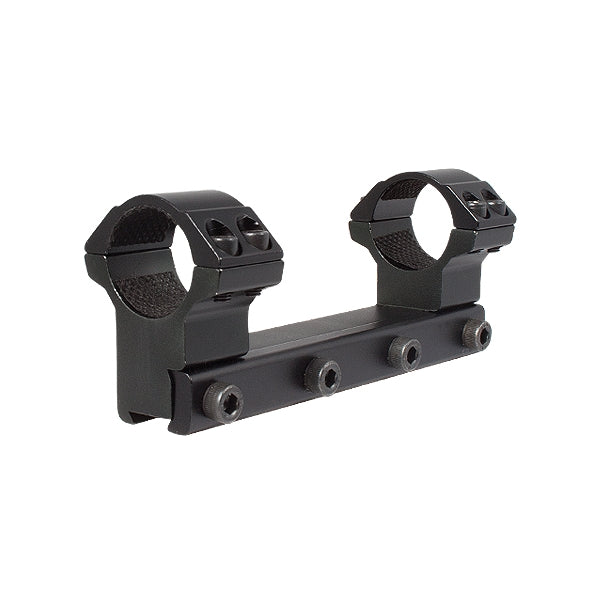

The Hawke Matchmount 30mm/9-11mm/High monoblock is designed to install optical sights with a tube diameter of 30 mm on hunting and sporting weapons with a Dovetail sighting bar. Recommended for sights with a minimum distance of 120 mm between the opposite conical sockets of the objective and eyepiece. Fits most sights with an objective diameter of 40 mm and above.
As is known, powerful air rifles have quite a significant recoil, capable of disabling many sights. In order for the sight to serve properly for a long time, a well-thought-out mounting system is necessary. Hawke Monoblock Matchmount 30mm/9-11mm/High provides reliable mounting of the sight on the sighting bar, thanks to a reliable system of clamping screws, a retractable locking screw and a powerful pressure plate. All corners and edges of the monoblock are rounded, so as not to damage the sight during joint operation.
Characteristics
- Mount type: Dovetail (11mm)
- Ring diameter, mm: 30
- Height from bar to center, mm: 35
- Overall height, mm: 50
- Inner distance between monoblock rings, mm: 80
- Overall length, mm: 120
- Material: anodized aluminum
- Intra-monoblock gaskets for reliable fixation of the sight and protection of its body from damage
- Fixing the sight in the monoblock: four screws on each side
- Fixing the monoblock to the bar: four clamping screws and a locking screw
- Recommended scope objective diameter: from 40 to 56 mm inclusive
Equipment
- Monoblock - 1 pc.
- Allen key - 3 pcs.
Height, mm: 50
Weight, kg: 0.161
Manufacturer: Hawke (UK)
Warranty: 14 days
