Description

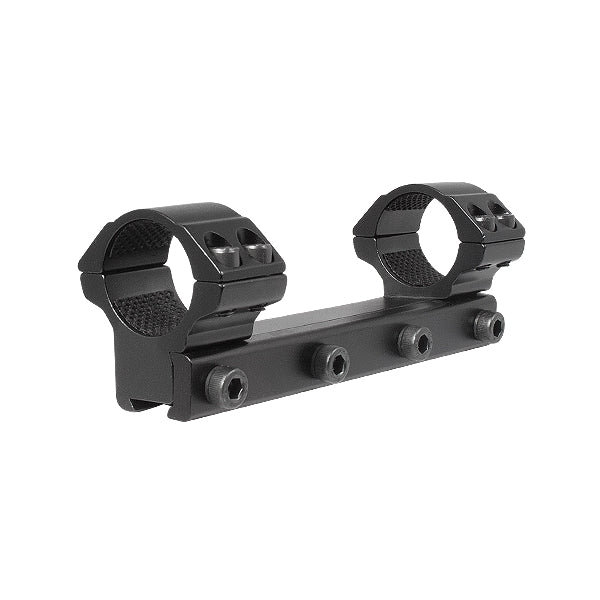

The Hawke Matchmount 1"/9-11mm/Med monoblock is designed to mount optical sights on hunting and sporting weapons with a Dovetail sighting bar. Recommended for sights with a minimum distance of 120 mm between the opposite conical sockets of the objective and eyepiece. Fits most sights with a diameter of 32 to 44 mm.
As is known, powerful air rifles have quite a significant recoil, capable of disabling many sights. In order for the sight to serve properly for a long time, a well-thought-out mounting system is necessary. Hawke Monoblock Matchmount 1"/9-11mm/Med provides reliable mounting of the sight on the sighting bar, thanks to a reliable system of clamping screws, a retractable locking screw and a powerful pressure plate. All corners and edges of the monoblock are rounded in order not to damage the sight during joint operation.
Characteristics
- Mount type: Dovetail (11mm)
- Ring diameter, mm: 25.4
- Height from bar to center, mm: 26
- Overall height, mm: 43
- Inner distance between monoblock rings, mm: 80
- Overall length, mm: 120
- Material: anodized aluminum
- Intra-monoblock gaskets for reliable fixation of the sight and protection of its body from damage
- Fixing the sight in the monoblock: four screws on each side
- Fixing the monoblock to the bar: four clamping screws and a locking screw
- Recommended scope objective diameter: from 32 to 44 mm inclusive.
Equipment
- Monoblock - 1 pc.
- Allen key - 3 pcs.
Height, mm: 53
Weight, kg: 0.147
Manufacturer: Hawke (UK)
Warranty: 14 days
