Description
Now, when changing weapons with different sighting bars, it is not necessary to change the sight itself. This model of the sight has the ability to be installed on Weaver, Picatinny and Dovetail (9-11 mm) sighting bars. In addition, the Hawke Sport Dot 1x30 WP (9-11mm and Weaver) has a tube diameter of 30 mm and is installed on a standard ring, which can be replaced with a similar diameter if necessary. The sight is one of the lightest collimators on the market, making it ideal for small-caliber air rifles, pistols, bows and crossbows.
Despite the fact that the field of view of collimator sights is quite large, and the shooter can "track" the target with both eyes and not concentrate so much on the optics as when shooting from an optical sight, Hawke Optics still paid great attention to the optical properties of the sight. All optical surfaces are covered with a 25-layer anti-reflective coating, which certainly affects the quality of the image and contributes to more accurate shooting.
The sight is made in a shockproof, waterproof polycarbonate case with a matte coating, which reliably protects the optics from scratches, unwanted damage from impacts, falls, recoil, and difficult weather conditions.

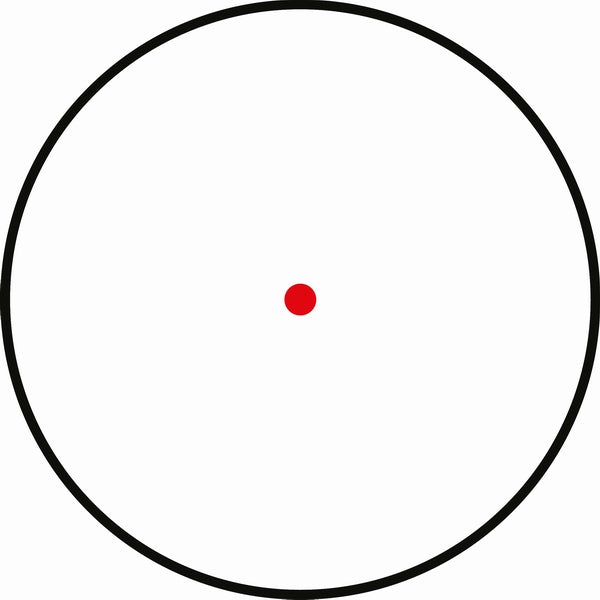

The aiming mark is a clear, expressive red illuminated dot, with adjustable brightness for convenient day, evening and night shooting. The aiming mark is only 4 MOA, which has a positive effect when aiming at small, distant targets, when the aiming mark could overlap the target itself.
The sight is equipped with a removable ring for installation on Weaver/Picatinny and Dovetail (9-11 mm) type sighting rails. The vertical and horizontal adjustment drums have a click value of 0.5 MOA and are hidden under aluminum screw caps.
Optical characteristics:
- Magnification: 1x
- Lens diameter, mm: 30
- Field of view (m/100m): 17
- Lens coating: Fully Multi-Coated
Design features:
- Aiming mark type: dot
- Aiming mark color: red
- Aiming mark size, MOA: 4
- Reticle brightness adjustment: 3 brightness levels for day and night use
- The division value of the adjustment mechanism of corrections, angle min.: 1/2" (0.5 MOA) @ 100 yds
- Mounting ring: 30mm Weaver/Picatinny and Dovetail (9-11mm)
- Water Resistance: 100% Waterproof Case
- Case: shockproof, polycarbonate
Equipment:
- Aim
- Mounting rings 30 mm - 2 pcs
- Battery LR44 - 2 pcs
- Lens cleaning cloth
- Hexagon - 2 pcs
Length, mm: 109
Weight, kg: 0.139
Manufacturer: Hawke (United Kingdom)
Warranty: 1 year
A collimator sight allows you to aim a weapon at a target using a luminous dot-mark, observing the object with both eyes open, which is very convenient when shooting at a moving target. You simultaneously observe the target and aim the weapon at it. Shooting while hunting is simplified, and most importantly, it becomes more accurate than with a conventional mechanical sight. Collimator sights significantly simplify and speed up the aiming process, since it is only necessary to combine the mark and the target. The aiming mark does not cover the target. These advantages make collimator sights especially attractive for people with no shooting experience and an almost ideal sight for pneumatic and throwing weapons of medium and close range.
| Manufacturer code: 920802 Parameters: Warranty: 12 months Country of origin: China Country of brand registration: Great Britain Weight: 139 g Additional characteristics: Fully Multi coated Features: Waterproof and sealed design Sight length: 109 mm Reticle Type: 4 MOA Dot Adjustment turrets, division value: 1/2"(0.5 MOA)@100 yds Front lens diameter: 30mm Parallax adjustment: No Reticle Illumination: Adjustable Minimum multiplicity, x: 1 Maximum multiplicity, x: 1 Sight tube diameter: 30 mm Landing place (ring diameter): 30 mm Mount included: With mount Mounting Base: Weaver (21 mm), Picatinny (21 mm), Dovetail (11 mm) Sight type: Collimator Section: Sights
