Description

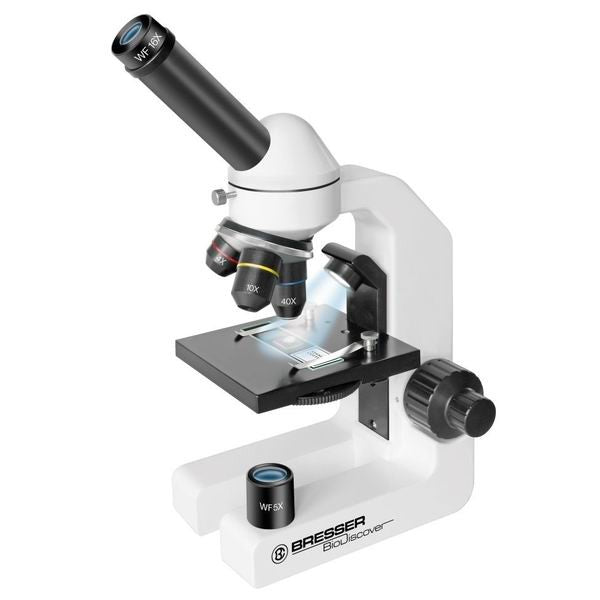

Despite the fact that this microscope is recommended for beginners, its design features allow for observation of both transparent samples in transmitted light and opaque three-dimensional samples in reflected light. The device is equipped with two replaceable eyepieces and a Barlow lens, which together allow for a maximum magnification of up to 1280x.
Classification:
- Type: optical
- Classification: biological
- Purpose: educational
Optical characteristics:
- Magnification: from 40x to 1280x
- Objective magnification: 4x, 10x, 40x
- Eyepiece magnification: 5x, 16x
- Barlow lens magnification: 1x ÷ 2x (stepless)
Design features:
- Attachment: monocular (360º rotation, 45º tilt)
- Object stage: movable with sample clamps
- Focus: Coarse
- Backlight: LED (transmitted and reflective) 6W/6V
Equipment:
- Microscope: metal body
- Lenses: 3 pcs.
- Eyepiece: 2 pcs.
- Barlow lens: 1 pc.
- Dissection Accessory Set
- Ready slides: 5 pcs.
- Slides: 10 pcs.
- Cover glasses: 10 pcs.
- Sample containers: 4 pcs.
- Hatchery
- Microtome
- Dust cover
- AC adapter
Nutrition:
- AC power supply: 220/240V
Dimensions:
- Linear dimensions: 225*87*200 mm.
The Bresser brand represents a wide range of traditionally high-quality microscopes of any complexity and purpose.
With a moderate price and compact size, this microscope provides sufficient magnification and comes with a wide range of accessories, making it very attractive for beginners.
The combination of lenses and eyepieces supplied in the kit provides magnification of up to 640x. When using the Barlow lens, you can smoothly zoom the image, obtaining a maximum magnification of 1280x. The monocular attachment has a convenient tilt of 45º and freely rotates in the horizontal plane by 360º. This allows several participants to take turns observing without moving the microscope in space.
The microscope is equipped with two LED illuminators. Transmitted light is used to observe transparent objects, reflected light is used for opaque three-dimensional objects, using two lamps simultaneously can be useful when observing translucent samples. Unlike many other models, the reflected light illuminator of this microscope moves together with the stage, which ensures correct, constant, uniform illumination of the object under observation.

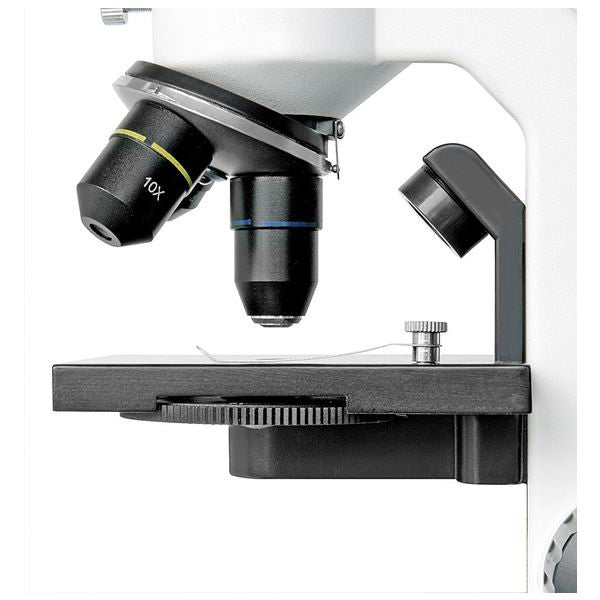

The movable stage is equipped with clamps for fixing the slide or sample. Additionally, its design allows it to be equipped with a vernier (not included) for more precise positioning of the sample. Despite the lack of fine focusing, the coarse focusing flywheel ensures the smoothest and most precise movement of the stage along the vertical axis.
The microscope is powered from a household AC power supply.
A wide range of accessories and slides allows you to start exploring the microworld immediately after purchasing a microscope. This is an excellent choice for educational institutions, as well as for home use.
| Manufacturer code: 908579
Parameters:
Warranty: 24 months
Country of brand registration: Germany
Backlight: LED
Focus: Coarse
Type: Optical
