Description

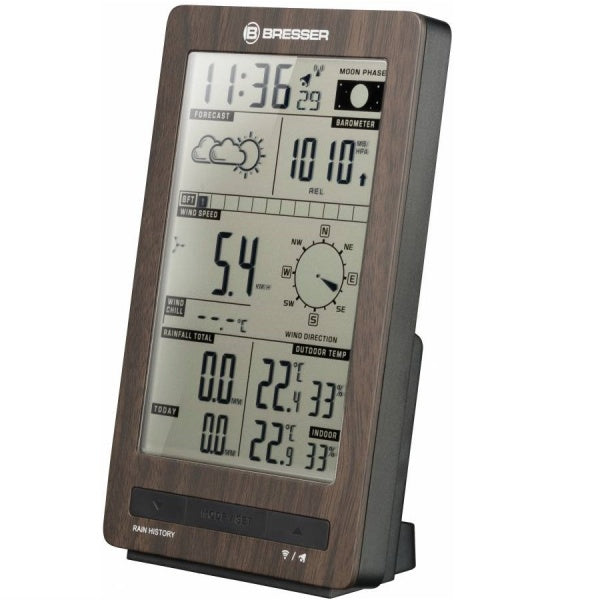

The Bresser ClimaTemp FW Brown weather station measures such meteorological parameters as atmospheric pressure, wind speed and direction, level, precipitation, temperature and relative humidity. The built-in alarm function will warn you about the measured parameters going beyond the specified limits. All sensors are arranged in a single unit, which significantly simplifies and speeds up the installation and assembly process.
Modern, laconic design and a wide range of functions will allow you to use this weather station with equal success both in an apartment and in your garden.
Technical specifications
Weather forecast:
- Weather forecast for 12 hours
- Symbolic weather forecast. The display shows icons (clear, partly cloudy, cloudy, rain, shower/thunderstorm, snowfall)
Atmospheric pressure:
- Unit of measurement: hPa, inHg
- Atmospheric pressure measurement range: from 850 hPa to 1050 hPa (from 25.10 inHg to 31.00 inHg).
- Measurement resolution: 0.1 hpa (0.003 inHg, 0.08 mmHg)
- Measurement accuracy: +/- 5 hpa (0.015 inHg, 0.38 mmHg)
- Automatic recording of minimum and maximum values of atmospheric pressure
Room temperature:
- Units of measurement: ºС or ºF
- Measuring range: -10°C to +50°C (14°F to 122°F)
- Measurement resolution: 0.1°C or 0.2°F
- Measurement accuracy: +/- 1°C (+/- 2°F)
- Update readings every 10 sec
- Automatic recording of minimum and maximum temperature values
- Sound signal when the temperature goes beyond the set values
External temperature:
- Units of measurement: ºС or ºF
- Measuring range: -20°C to +50°C (-40°F to 140°F)
- Measurement resolution: 0.1°C or 0.2°F
- Measurement accuracy: +/- 1°C (+/- 2°F)
- Update readings every 47 sec
- Automatic recording of minimum and maximum temperature values
- Sound signal when the temperature goes beyond the set values
Indoor humidity:
- Units of measurement: % RH
- Measurement range: 20% to 99%
- Measurement resolution: 1%
- Measurement accuracy: +/-7%
- Update readings every 10 sec
- Automatic recording of minimum and maximum humidity values
- Sound signal when humidity level exceeds set values
- Determining the comfort level in the room: comfortable, humid, dry
External humidity:
- Units of measurement: % RH
- Measurement range: 20% to 99%
- Measurement resolution: 1%
- Measurement accuracy: +/-7%
- Update readings every 47 sec
- Indication of humidity change trend
- Automatic recording of minimum and maximum humidity values
- Sound signal when humidity level exceeds set values
Display of dew point temperature:
- Units of measurement: ºС or ºF
Precipitation level:
- Display level for the last hour, last day (since midnight), last week, last month.
- Unit of measurement: mm, inch.
- Range: 0 to 9999 mm (0 - 393.7 inch).
- Accuracy: 0.5 mm.
- Automatic recording of maximum precipitation levels .
- Sound signal when the set daily precipitation level is exceeded.
- Update readings every 183 sec
Measuring wind speed and direction:
- Units of measurement: mph, m/s, knots, km/h
- Wind force indication on the 12-point Beaufort scale
- Wind direction range: 16 main directions
- Wind direction error: +/-11.25°
- Wind direction measurement resolution: 22.5°
- Wind speed range: 0 to 112 mph (0-180 km/h, 0-97 knots, 0-50 m/s)
- Wind speed error: +/- 5%
- Sound signal when wind speed reaches set limits
- Update readings every 33 sec
- Automatic recording of minimum and maximum values of average wind speed and wind gust speed per day.
Wind chill temperature:
- Units of measurement: ºС or ºF
Moon phases:
- Display: Moon phases as pictograms.
Watch:
- The clock is automatically radio-controlled by a signal from Frankfurt (DCF-77). The signal is based on an atomic clock powered by the Cesium 133 atom and is under the jurisdiction of the Physics and Technology Federal Institute in Braunschweig (Germany). The error is less than one second in one million years. The exact time transmitted by the DCF77 transmitter is official in Germany. The transmitter is located in Mainflingen - 30 km from Frankfurt am Main and with its radius (about 1500 km) covers almost all of Europe and part of Ukraine. Please note that in the eastern regions of Ukraine the signal reception is unstable.
- Possibility of disabling radio control and selecting manual installation
- Time zone selection (time correction) -12/+11 hours
- Time format: 12 or 24
- Alarm clock with snooze function.
Calendar:
- Display: date / day of week / month
Backlight:
- LED backlight.
Transferring data from an external sensor:
- Data transfer frequency: 433 MHz
- Data transmission range: up to 80 m. line of sight
Installation:
- It is possible to install the console on the table

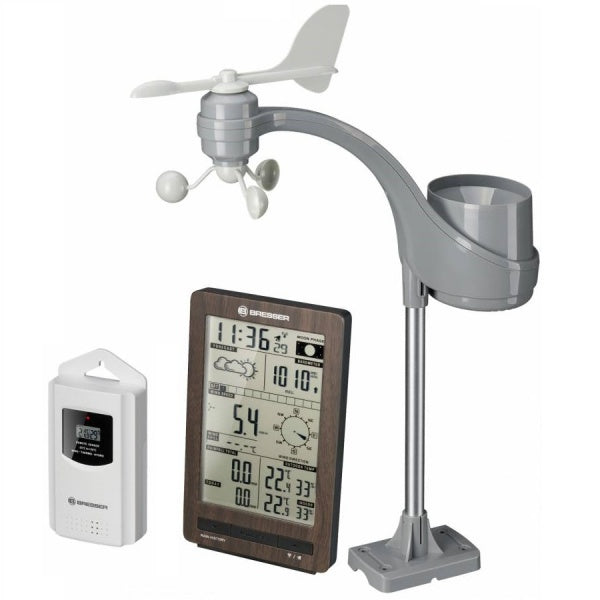

Equipment:

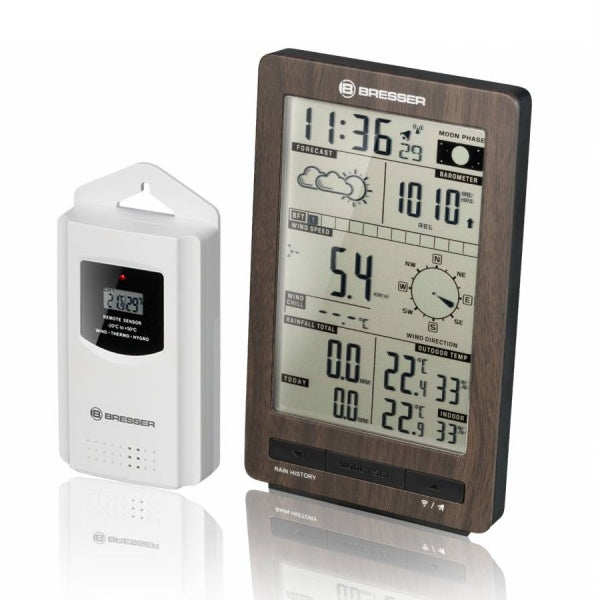

- Console

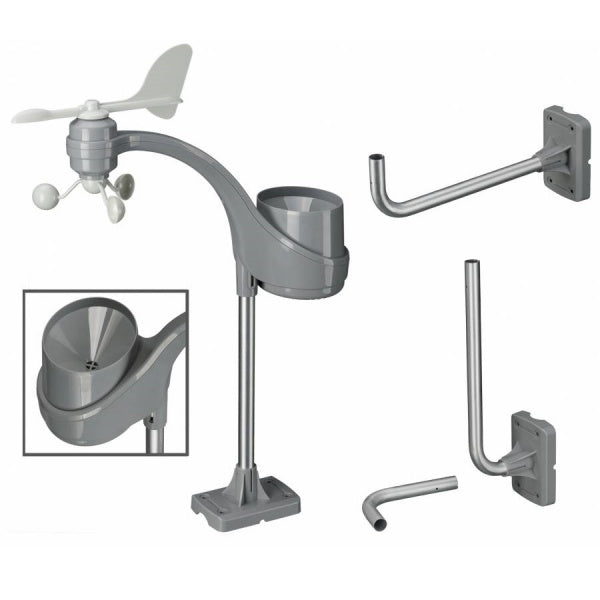

- Sensor block (precipitation level, wind direction/speed)
- Temperature and humidity sensor
- Fasteners for mounting the sensor unit
- Instructions
Overall dimensions, (L*W*H) mm:
- Weather station: xx .
- Sensor block: 344 x 394 x 136 mm.
- Thermo-hygro sensor: 67 x 29 x 102
Weight, g:
- Weather station: 511
- Sensor block: 591
- Thermo-hygro sensor: 115
Power supply: (batteries not included)
- Weather station: 2 x AAA batteries, IEC 1.5 V.
- Sensor block: 2 x AA batteries, IEC LR06 1.5 V.
- Thermo-hygro sensor: 2 x AA batteries, IEC LR06 1.5 V.
- It is recommended to use alkaline batteries (Duracell, Energizer and similar)
Warranty: 1 year
Manufacturer: Bresser (Germany)
Wireless Sensor Installation Guidelines
In order to obtain accurate readings and extend the life of your sensor, we recommend that you install it in a protected location to avoid moisture and direct sunlight. Do not wrap the sensor in a plastic bag. We recommend installing it outside on the outside of a window as shown in the picture below or in any other suitable location.
