Description

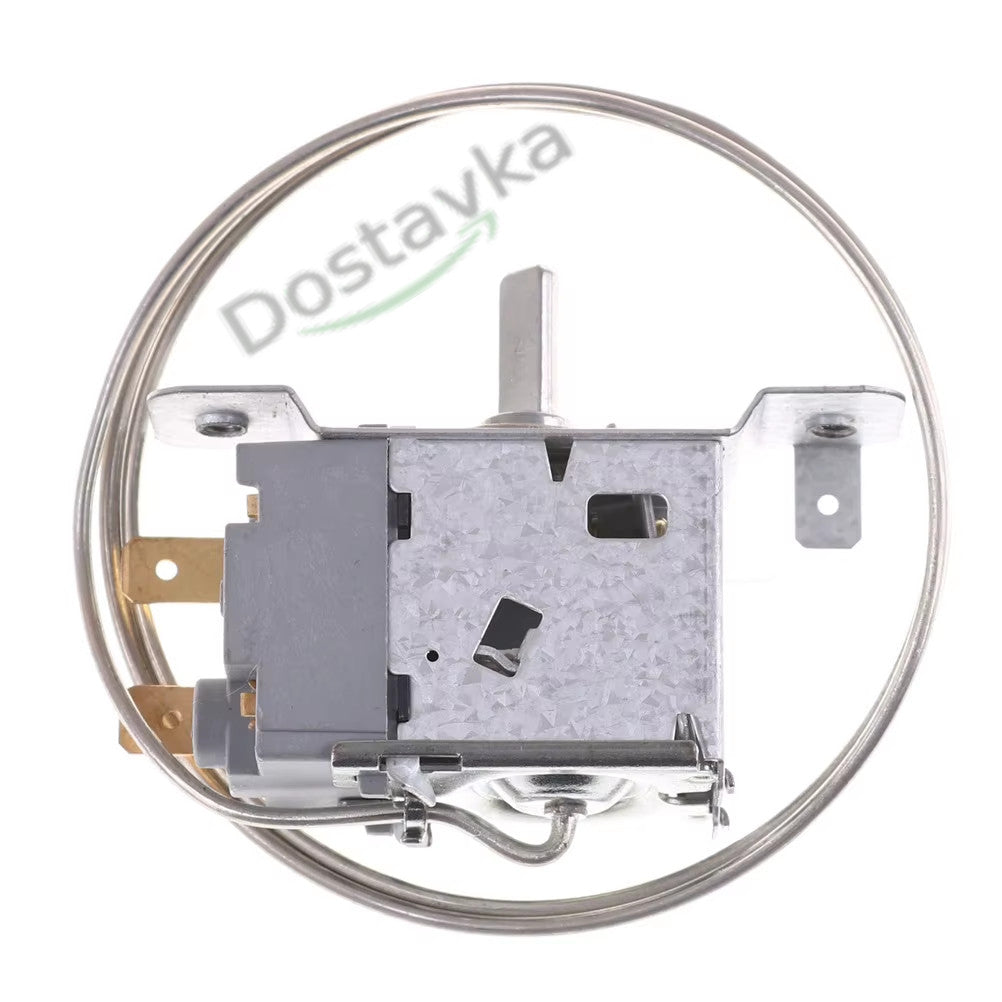

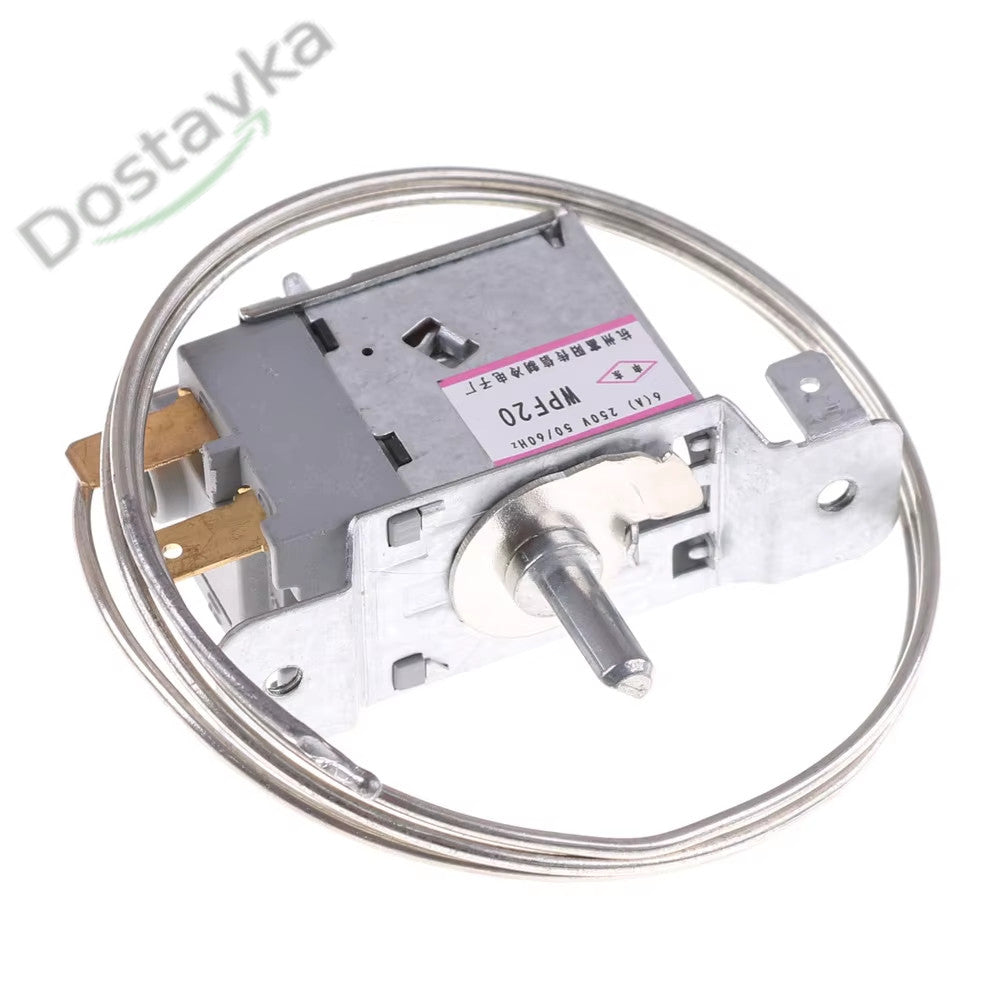

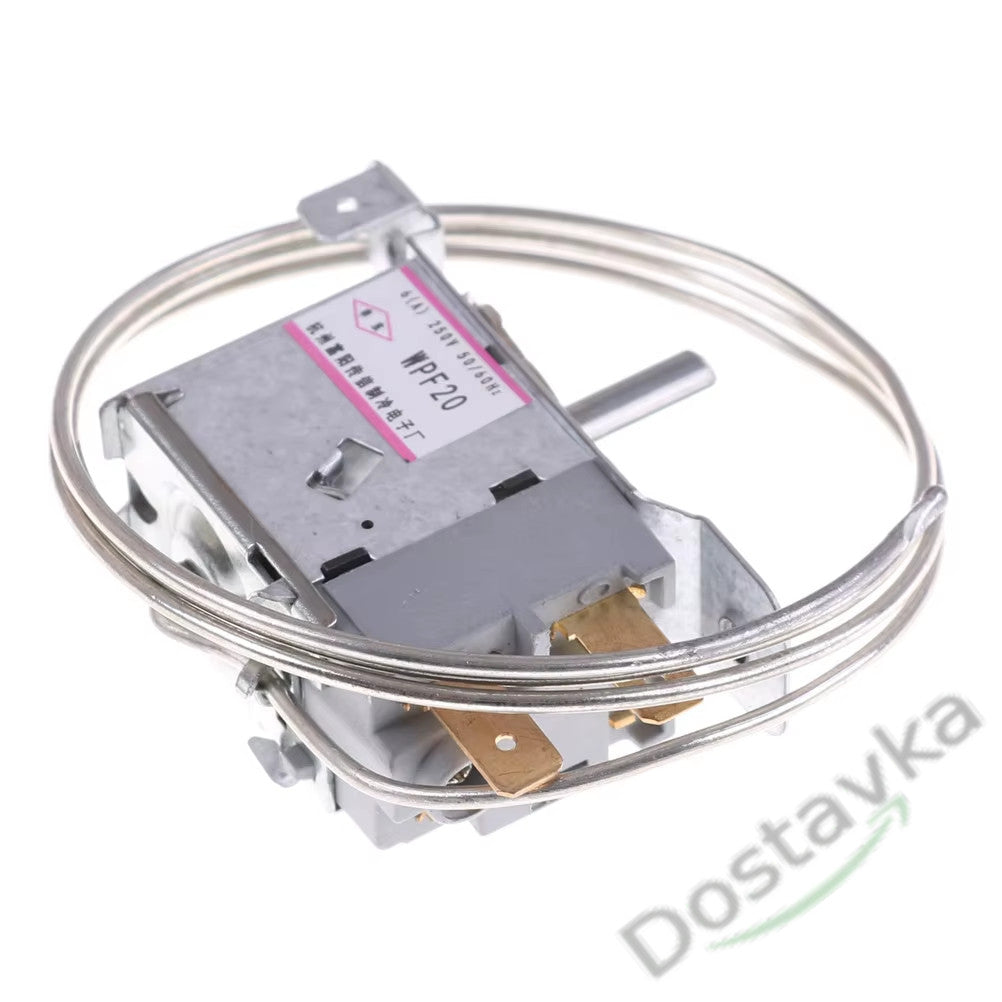

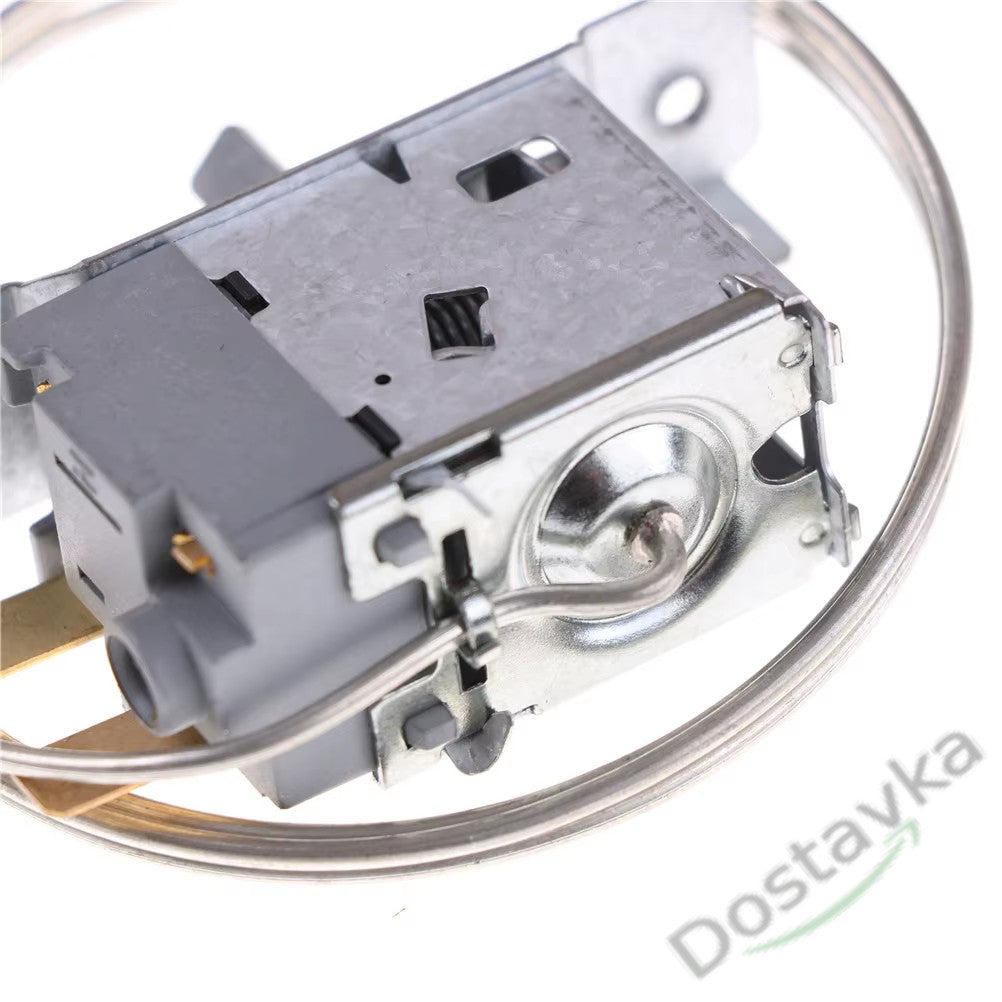

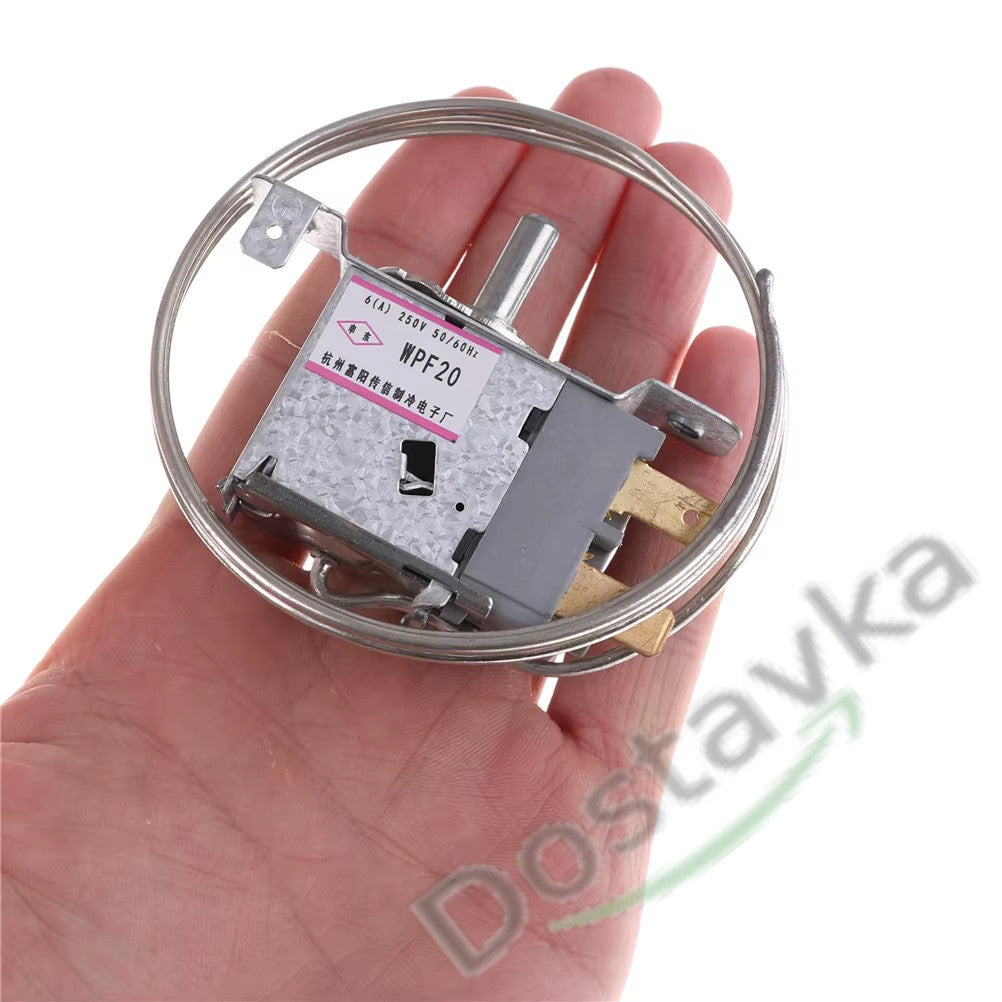

2-pin thermostat WPF-20 capillary 1200mm AC 220V 6A for temperature control of refrigerator, display case, freezer, beverage cooler and similar product.
The thermostat has 2 terminals, a D-shaped shaft, operates with alternating current 250V 6A, and an adjustable temperature scale.
Nominal voltage: AC 220V 6A
Warm entrance: +12.5 degrees Celsius
Cold entry: +5 degrees Celsius
Cold exit: +1.5 degrees Celsius
Terminals: 2
Capillary: 1200 mm
Main material: metal and plastic
Warm In (+12.5 °C):
This is the turn-on temperature when the thermostat is set to the WARMEST setting.
- Action: When the temperature inside the refrigerator (where the thermostat sensor is located) rises to +12.5 °C, the thermostat signals the cooling system to turn on and begin cooling. This setting allows the inside of the refrigerator to become relatively warm before cooling begins.
Cold In (+5 °C):
This is the turn-on temperature when the thermostat is set to its COLDEST setting.
Action: When the temperature inside the refrigerator rises to +5 °C, the thermostat signals the cooling system to turn on and begin cooling. Compared to the Warm setting, cooling begins at a much lower temperature.
Cold Out (+1.5 °C):
This is the cut-out temperature when the thermostat is set to its COLDEST setting.
Action: When the temperature inside the refrigerator drops to +1.5 °C, the thermostat signals the cooling system to turn off.
