Description

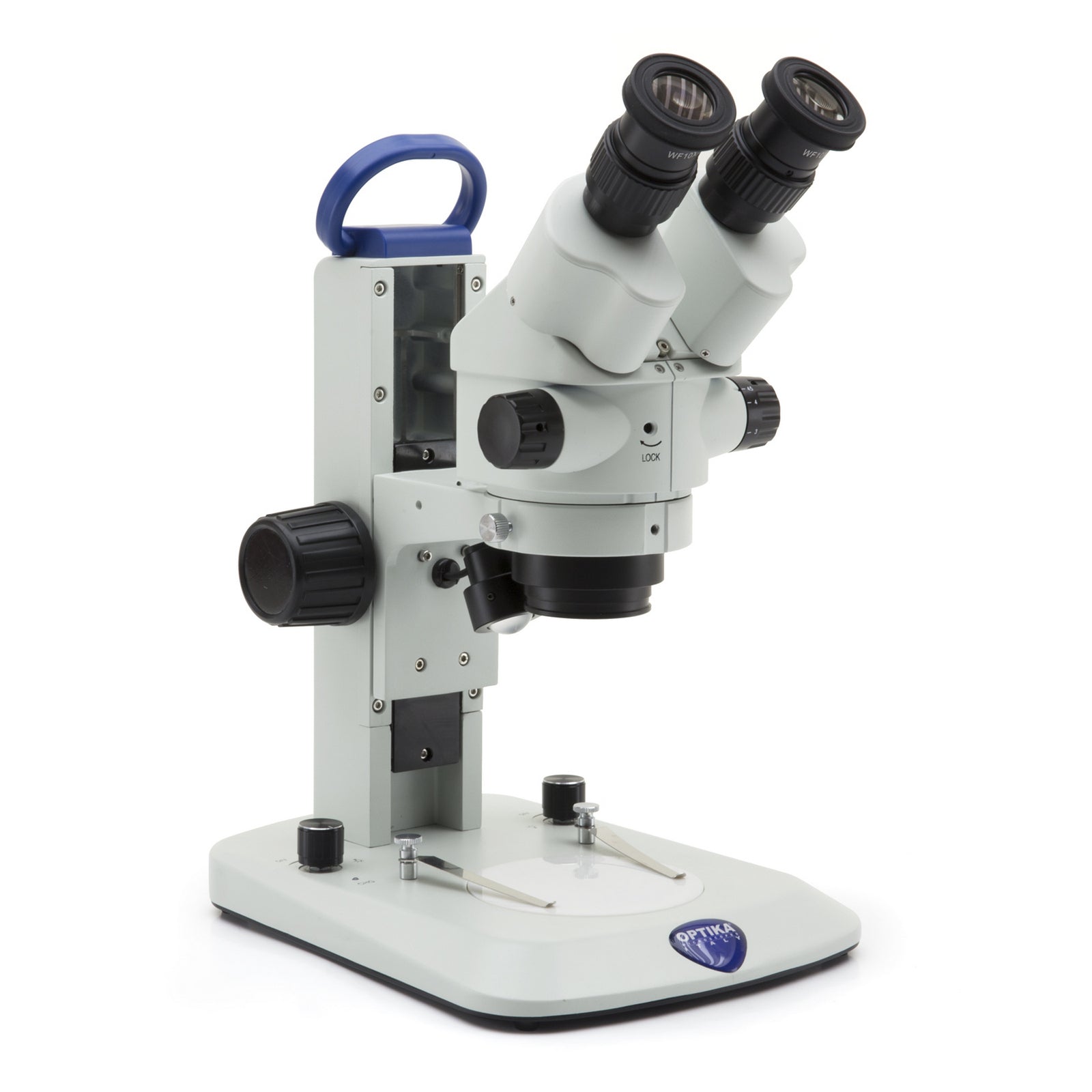

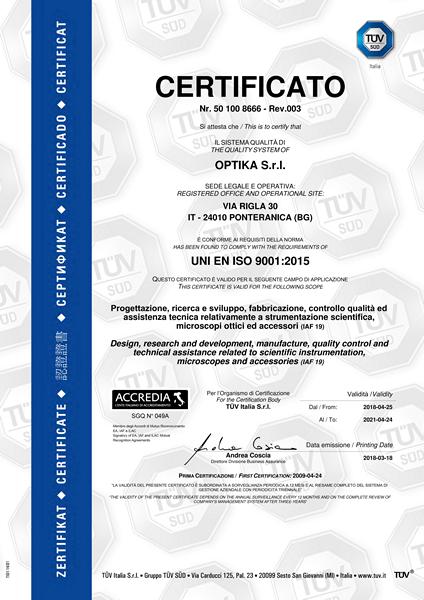

Modern stereoscopic microscopes Optika SLX series have a wide range of applications, from repair shops to industrial laboratories. Binocular microscope Optika SLX-2 7x-45x Bino Stereo Zoom is ideal for both students of specialized educational institutions and for professional use in the field of botany and materials science. Due to the large working distance - this is an ideal tool for repair shops and industrial laboratories. The microscope has the ability to operate autonomously from the built-in battery. In terms of the quality of optics and mechanics, the SLX series devices are the best among analogues, due to the excellent price-quality ratio. A variety of optical configurations, zooming, various combinations of illumination provide wide possibilities for the use of SLX series microscopes where professional tools are required at a reasonable cost. Control of materials and the production process meets the requirements of the ISO 9001:2008 quality system. Microscopes have a 10-year warranty!

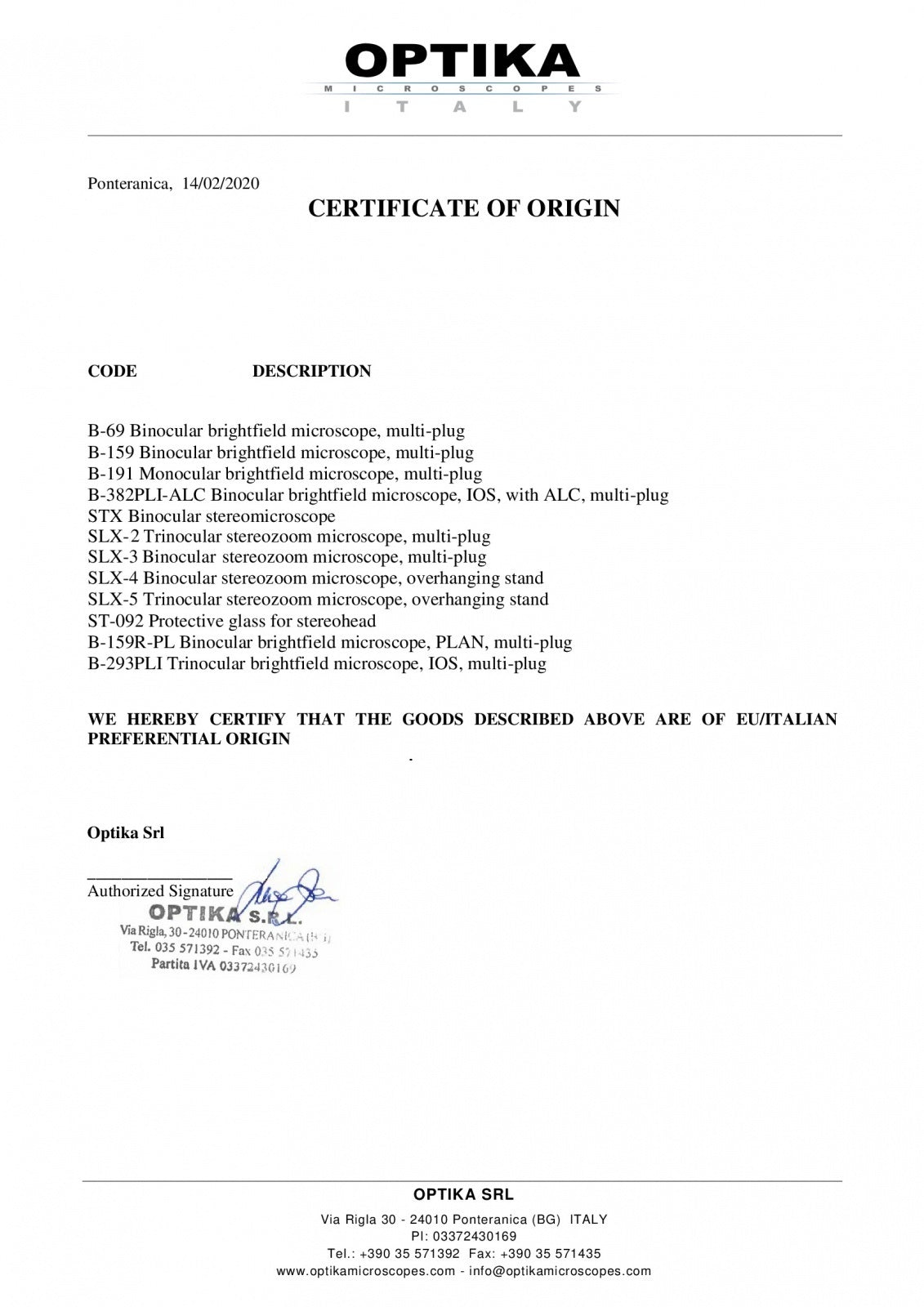

All Optika SRL products are made in Italy. In the small town of Ponteranica (Bergamo province) Optika microscopes are developed, manufactured and assembled. Each microscope is accompanied by an individual serial number indicated on the body and in the warranty card, as well as a mark on the final quality control. All products comply with the basic requirements of the relevant European EU directives and European Union standards.

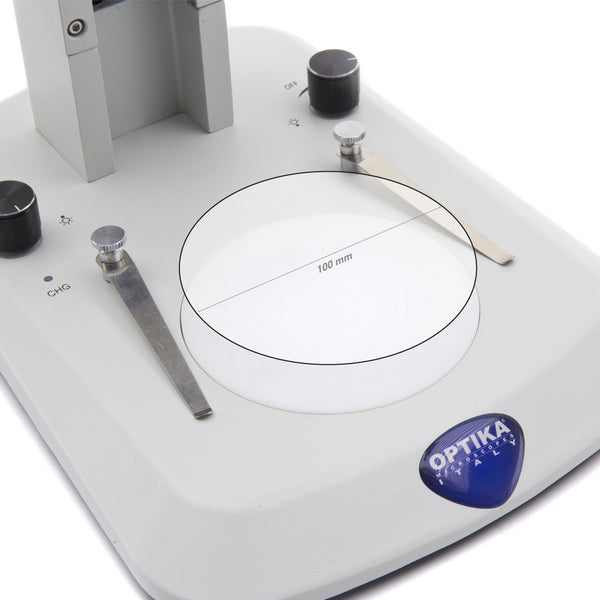

Correct color rendering of the image is one of the two most important factors in light microscopy. Modern microscope optics are so perfect that it is difficult to invent something revolutionary new, while the leap in the development of LED technologies opens up wide opportunities in microscopy. Optika presents the next step in improving the illumination system of stereoscopic microscopes - professional subject LED illumination with transmitted and reflected light EcoLED ™ . A special coating technology on the optical elements of the illuminators in combination with energy-saving technology allows to obtain lighting with the best ratio of efficiency and economy. The upper illuminator consists of a modern point SMD LED and a lens, giving a correctly directed focused beam of light. The lower illumination is implemented in the form of 12 LEDs, giving uniform illumination of the matte disk of the working table increased to 100 mm. The LEDs have a color temperature of 6300K, which corresponds to natural daylight. Thus, the image is free from excessive yellow coloring of halogen lamps. The service life of LEDs is 65,000 hours, which is 22 years with daily 8-hour use (which is 20 times more than the most efficient halogen lamps).
Classification:
- Type: optical
- Classification: stereoscopic
- Optical design: Greenough
- Microscopy method: bright field
- Purpose: professional
Optical characteristics:
- Magnification: 7x...45x
- Lens magnification: 1x
- Eyepiece magnification: 10x
- Zoom: 0.7x...4.5x
Design features:
- Attachment: binocular (360º rotation, 45º tilt).
- Interpupillary distance adjustment, mm: 51-75
- Diopter adjustment: ±5 on both eyepieces
- Lens: Stereoscopic parfocal zoom lens with multi-layer anti-reflective and anti-fungal coating
- Lens correction degree: achromat
- Zoom: continuously adjustable
- Eyepieces: wide-angle (linear field of view 21 mm) with increased pupil relief and multi-layer anti-reflective coating
- Landing diameter of eyepieces, mm : 30
- Object stage: stationary, with clamps for samples
- Focusing: Coarse with adjustable screw tension
- Body : aluminum alloy
- Backlight: LED, transmitted (SMD LED 3W, 6300K), reflected (SMD LED 3W, 6300K with adjustable lighting angle) and mixed light
- Brightness control: separate, smooth
- Working stroke range, mm: 40-200
- Working distance, mm: 100
- Possibility of autonomous operation: from a rechargeable battery
Equipment:
- Microscope: 1pc
- Lens: 2 pcs.
- Eyepieces: WF10x/21mm (high point): 2pcs
- Transparent white diffusing disc 100mm: 1pc
- Protective case: 1pc
- Protective lens cap: 1pc
- Protective eyepiece covers: 2 pcs
- Network adapter: (Input: 100-240V; Output: 5V, 500mA, length: 1.6m): 1pc
Additional recommended accessories:
- Eyepieces ST-082 WF15x/15mm (pair)
- Eyepieces ST-083 WF20x/10mm (pair)
- Eyepieces ST-084 WF10x/21mm (30 mm) 10mm/0.01mm micrometr
- Additional lens for 0.5x ST-085.1 objective
- Additional lens for 0.75x ST-091 objective
- Additional lens for 1.5x ST-086.1 objective
- Protective glass ST-092 Protective glass for stereohead
- Dark-field condenser ST-040.1
- Polarization kit (analyzer, polarizer and 100 mm turntable) ST-088.1
- Black and white disc 100 mm ST-042
- Movable table ST-110.1
- Sliding table with micrometer screws ST-111.1
- Heated table M-666.1
- Rubber eyecups ST-036 (pair)
- Micrometer object M-005 (0.1mm/0.01mm)
- Jewelry holder ST-041
- Cleaning kit 15104
Nutrition:
- AC power supply: 220/240V
- Battery: 3.6V NiMh 1500 mA (3 x AA) included
- Full charge time: 8 hours
- Maximum battery life: 12 hours
Dimensions and weight:
- Linear dimensions of the microscope, mm: 365x280x205
- Dimensions in packaging, mm: 450x400x400
- Weight of microscope, kg: 3.5
- Weight in packaging, kg: 4.9

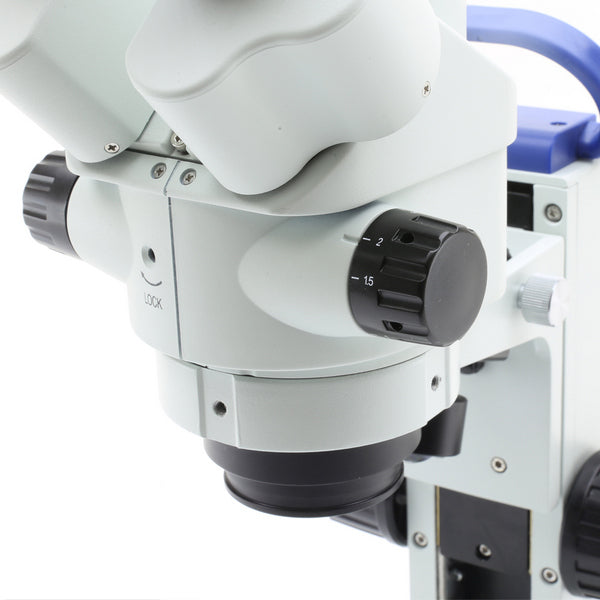

A distinctive feature of the professional microscopes of the SLX series is the presence of a zoom, with which you can steplessly change the magnification of the microscope in the range from 7 to 45 times. The zooming system is parfocal: there is no need to refocus when zooming.

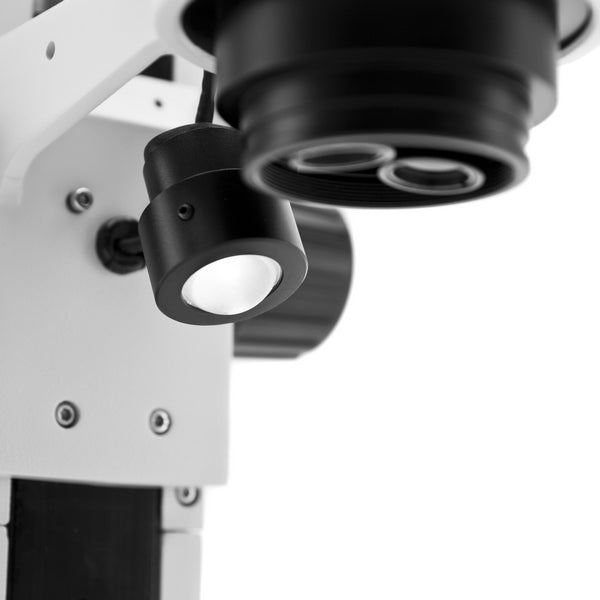

The microscope uses modern efficient EcoLED ™ illumination . Separate controls for the upper and lower illumination allow smooth brightness changes and use each illumination both separately and together in any brightness variation. The upper LED illuminator is movable and the angle of the light beam can be changed. Modern LED technologies have made it possible to significantly reduce the thickness of the microscope base. Even despite the increased base area, it was possible to achieve a significant reduction in weight while maintaining the stability of the microscope.
The combination of rechargeable batteries and low-power EcoLED ™ LED illumination allows for up to 12 hours of continuous field use and a full charge in 8 hours.
The special design of the focusing mechanism provides adjustment of the tension force of the focusing screws and allows, if necessary, to fix the microscope focused on the sample. This same feature allows for greater focusing accuracy.
The objective lens is reliably protected from dust and mechanical damage by a plastic skirt. The surfaces of the eyepieces and the tube are covered with a black anodized Type III coating, which reliably resists abrasion and corrosion.

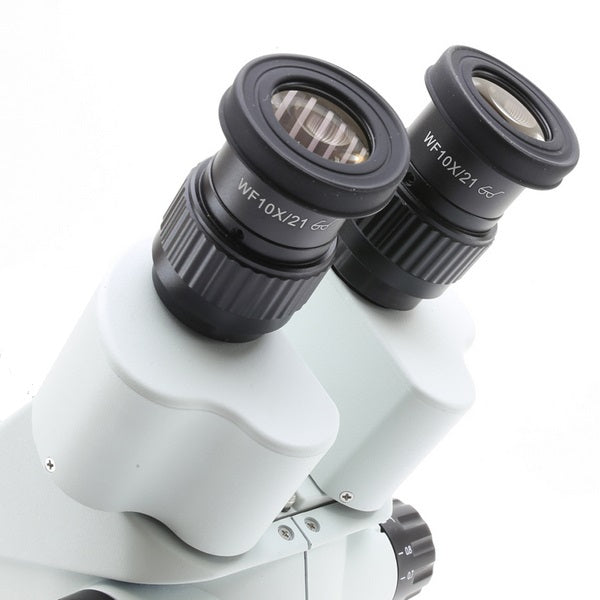

It is worth noting that diopter correction is provided for each eyepiece separately. Thanks to this, additional microfocusing can be performed, as well as the microscope can be adjusted to individual vision characteristics.
For comfortable observation, the microscope is equipped with a pair of soft rubber eyecups that allow you to fix your eyes at the required distance from the eyepieces and at the same time block unwanted side illumination. The increased pupil removal of the eyepieces is simply necessary for comfortable observation for people wearing glasses. Additional convenience of observation is provided by tilting the binocular attachment at an angle of 45º.
Designed for professional use by biologists, geologists, archaeologists, restorers, assemblers and repairers of electronic microcircuits. Recommended for medical institutions and laboratories, for production facilities, assembly shops and repair shops.
An additional lens for the 1.5x ST-086.1 objective lens allows you to achieve a maximum magnification of 67.5x. An additional lens for the 0.5x ST-085.1 objective lens allows you to increase the working distance to 165 mm.
The Italian company OPTIKA SRL has been one of the leaders in the production of professional microscopes and accessories covering almost all areas of microscopic research for 50 years. The company constantly strives for innovation and cares about its customers, not forgetting about the high quality of the product, convenience and ease of use. With proper use, Optika microscopes are designed for many years of operation.
Manufacturer: Optika (Italy)
Warranty: 10 years
| Manufacturer code: 927606 Parameters: Warranty: 10 years Country of brand registration: Italy Country of origin: Italy Backlight: LED Focus: Coarse Type: Optical
