Description

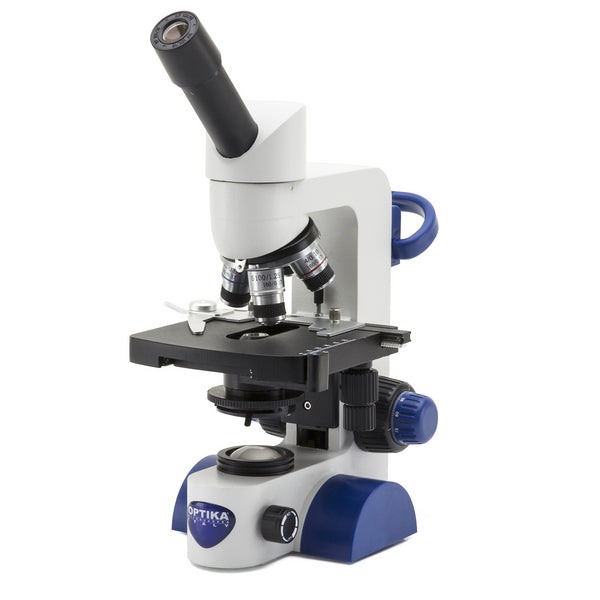

The Optika B-60 series of microscopes is represented by a wide range of optical instruments intended primarily for students and laboratory assistants of higher educational institutions. The presence of special hand rests and a carrying handle indicates special attention to the ergonomics of the microscopes. The innovative protective coating of the StagErase™ stage, energy-efficient LED illumination and reliable mechanics and a cast metal body will allow you to regularly use Optika B-60 microscopes for a long time. The characteristics and design features of the Optika B-65 40x-1000x Mono binocular microscope allow you to use this model for professional activities. Like all professional devices, this model has coarse and fine coaxial focusing, an Abbe condenser with an iris diaphragm /. The microscope has the ability to operate autonomously from a built-in battery. Control of materials and the production process meets the requirements of the ISO 9001:2008 quality system. Microscopes have a 10-year warranty!
All Optika SRL products are made in Italy. Optika microscopes are developed, manufactured and assembled in the small town of Ponteranica (Bergamo province). Each microscope is accompanied by an individual serial number indicated on the body and in the warranty card, as well as a mark on the final quality control. All products comply with the basic requirements of the relevant European EU directives and European Union standards.
LED illumination: Correct color rendering of the image is one of the two most important factors in light microscopy. The Optika B-65 40x-1000x Mono microscope is equipped with focused LED illumination. The LED has a color temperature of 630 0K, which corresponds to natural daylight. Thus, the image is free from excessively yellow coloring by the light of a halogen lamp. An undeniable advantage is its economy: the energy consumption of the LED is only 10% of that of a halogen lamp of similar brightness, while its service life is incomparably longer - 50,000 hours compared to 1,500 hours of service of a halogen lamp.
Classification:
- Type: optical
- Classification: biological
- Microscopy method: bright field
- Purpose: professional
Optical characteristics:
- Magnification: from 40x to 1000x
- Objective magnification: 4x, 10x, 40, 100x
- Eyepiece magnification: 10x
Design features:
- Attachment: monocular (360º rotation, 45º tilt)
- Revolving head: for 4 lenses
- Lenses: DIN, with multi-layer anti-reflective and anti-fungal coating
- Lens correction level: achromat
- Eyepiece: wide-angle (linear field of view 18 mm) with anti-reflective coating
- Eyepiece mounting diameter, mm : 23.2
- Object stage: movable 125x125 mm, with specimen guide and vernier (division value 0.1 mm)
- Range of movement of the specimen holder, mm : 62x24
- Body : metal
- Focusing: coaxial, coarse and fine (division value 0.002 mm)
- Backlight: LED transmitted light ( SMD LED 1W, 6300K)
- Brightness control: smooth
- Condenser: Abbe, 1.25 NA, height adjustable
- Aperture diaphragm: iris
- Filter holder, mm: 32
- Possibility of autonomous operation: from a rechargeable battery
Equipment:
- Microscope: 1pc
- Objectives: DIN Achromatic (4/0.10 160/0.17; 10/0.25 160/0.17; 40/0.65 160/0.17; S100/1.25 160/0.17 OIL): 4 pcs.
- Eyepiece: WF10x/18mm: 1 piece
- Eyepiece cover: 2pcs
- Immersion oil: 1 bottle (10 ml)
- Protective case: 1 pc
- Network adapter:: (Input: 100-240V, 0.3 A; Output: 5V, 500mA, length: 1.6 m): 1 piece
Additional recommended accessories:
- Eyepiece M-001 H5x
- Eyepiece M-003.2 WF15x/12mm
- Eyepiece M-004.2 WF10x/18mm (23 mm) micrometr
- Eyepiece M-004.2 WF10x/18mm (23 mm) pointer
- M-133 20x/0.40 Achromatic Lens
- M-136 60x/0.85 Achromatic Lens
- Polarization kit (analyzer, polarizer) M-155.2
- Immersion oil 15008 (10ml)
- Micrometer object M-005 (0.1mm/0.01mm)
- Cleaning kit 15104
Nutrition:
- AC power supply: 220/240V
- Battery: 1.2V NiMh 800 mA (3 x AAA) included
- Full charge time: 8 hours
- Maximum battery life: 14 hours
Dimensions and weight:
- Linear dimensions of the microscope, mm: 320x225x160
- Dimensions in packaging, mm: 390x285x210
- Weight of microscope, kg: 2.78
- Weight in packaging, kg: 3.90

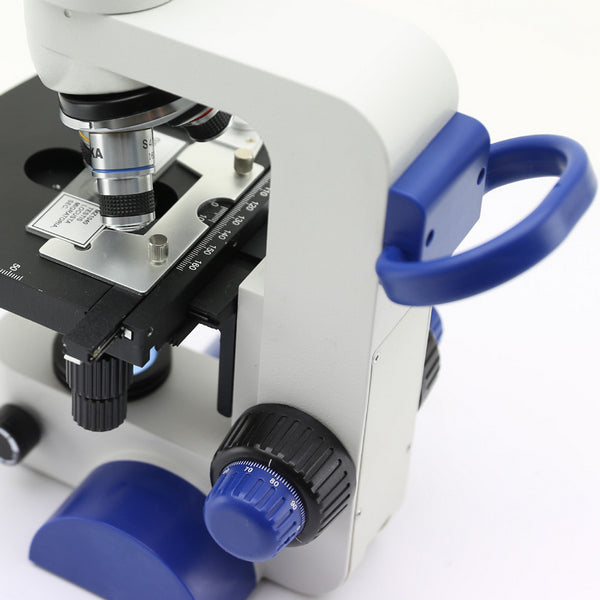

The ergonomic design of the body is made in such a way as to provide maximum convenience of microscope control, shift the center of gravity to the base of the microscope and thus make the device more stable. A special opening in the body provides a convenient grip when carrying the microscope, and allows you to observe the sample, being in a position behind the microscope, which is very convenient during focusing. Additionally, the convenience of observation is ensured by the tilt of the binocular attachment at an angle of 30º. The fully rotating attachment allows you to observe through the microscope from any convenient position, without changing the position of the device in space.
The LED illumination of the X-Led2 microscope is smoothly adjusted in brightness using a brightness regulator and in intensity using an iris aperture diaphragm. The diaphragm is equipped with a filter holder with a diameter of 32 mm. The movable Abbe condenser allows for precise transfer of the light projection to the plane of the observed sample.
The height of the stage is adjusted using the macro and micrometer focusing screws. The design includes a tension control disk for the focusing screws, which allows you to fix the microscope focused on the sample if necessary. This feature also allows for more precise focusing. The stage is equipped with a specimen guide and a vernier.

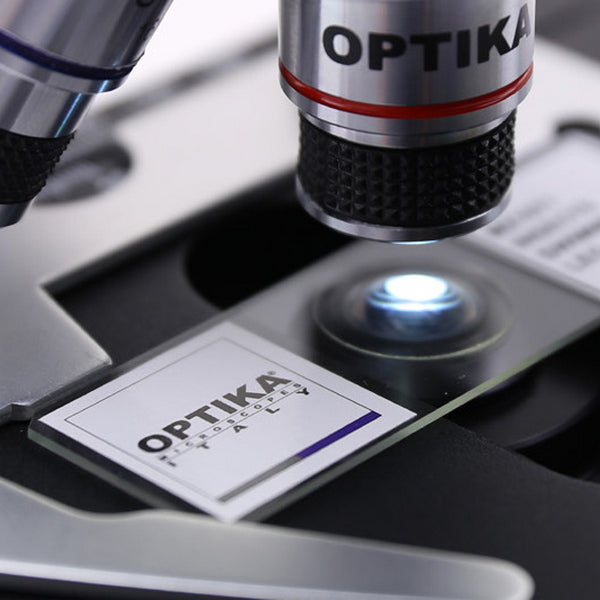

The microscope provides a wide range of magnifications from 40x to 1000x. The 40x and 100x objectives have a spring-loaded design that prevents damage to the objective or sample when the stage is raised excessively. The 100x OIL objective is recommended to be used only as an immersion objective. To increase resolution at high magnifications, the condenser can also be used as an immersion objective. The surface of the tubes is covered with a black anodized Type III coating that reliably resists abrasion and corrosion on the outside and does not allow unwanted reflections on the inside.
Designed for initial laboratory research in various fields of science. Ideal as a professional device for university teachers. Recommended for educational and scientific laboratories.
The Italian company OPTIKA SRL has been one of the leaders in the production of professional microscopes and accessories covering almost all areas of microscopic research for 45 years. The company constantly strives for innovation and cares about its customers , not forgetting about the high quality of the product, convenience and ease of use. With proper use, Optika microscopes are designed for many years of operation.
Manufacturer: Optika (Italy)
Warranty: 10 years
